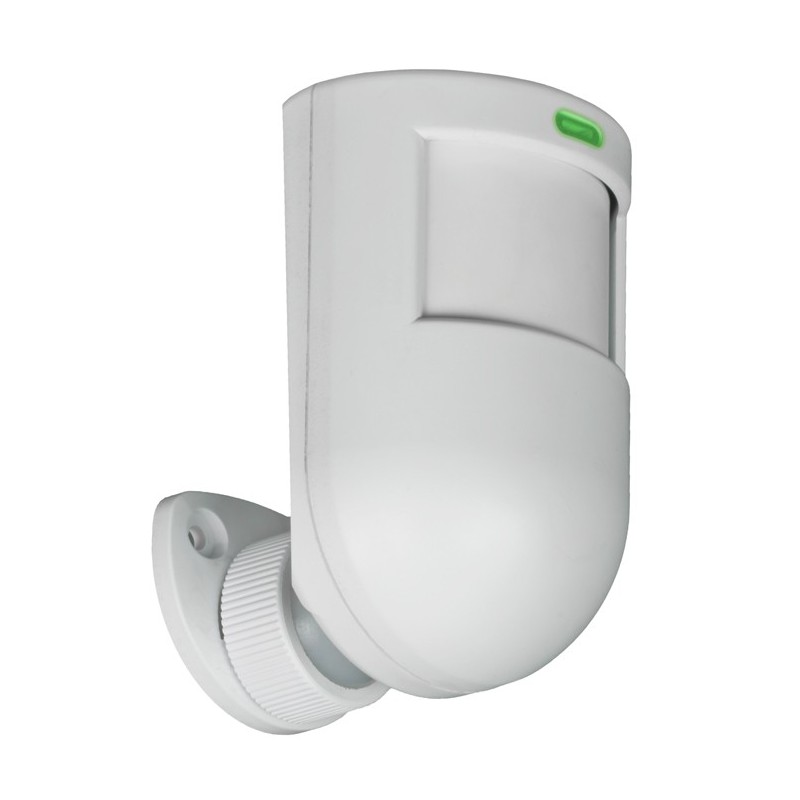

Hiltron XM series dual technology detector for burglar alarm XM12DG
C1A XM12DG
8056450411073
Hiltron XM series dual technology detector for professional burglar alarm systems, with 10.525 GHz PIR and microwave sensor. 12 m coverage, flexible installation, anti-masking function and MPX bus connection, with the following features:
-
Dual technology sensor: infrared + microwave (10.525 GHz).
-
Coverage: 12 m with 80° horizontal and 32° vertical angle
-
Function: Anti-masking AND-OR programmable
-
Connection: On 3-wire MPX bus line
-
Sensitivity: Adjustable to 8 levels
-
Installation on: Wall, ceiling or corner
€48.87
Items Available: 113
: 53
Precise and safe Hiltron detector for intrusion detection systems
The Hiltron XM series detector uses two complementary technologies: digital infrared and 10.525 GHz microwave, ensuring high reliability in detecting unauthorized presence. Operation can be set in AND mode, in which both sensors must be active, or AND-OR, which allows more flexible interaction depending on the sensitivity level chosen.
Maximum coverage and noise immunity
Equipped with 22 beams on 3 horizontal levels, the sensor offers a coverage of 12 meters, ideal for residential or commercial environments. Immunity to RF interference up to 30Vm ensures stability even in the presence of electromagnetic disturbances. The front field of view of the PIR is 120 degrees horizontal and 60 degrees vertical, while that of the microwave is 80x 32 degrees.
Installation versatility
The detector can be mounted on walls, ceilings or at an angle, using the base or anti-disorientation joint included in the package. It also features an anti-opening tamper and screw lock to provide added protection against tampering.
Programmable LEDs and instant diagnostics
The built-in LEDs are programmable and indicate with different colors the activation of microwave (green), infrared (yellow) or alarm (blue), offering clear and immediate visual diagnostics during operation or testing.
Technical Specifications Hiltron Dual Technology Detector.
Technical Data
| Feature | Value |
|---|---|
| Technology | Dual (Digipyro + 10.525 GHz microwave) |
| Power supply | 12 VDC ±10% |
| Maximum Power Consumption | 25 mA (on 12V), 1 mA (on MPX line) |
| Connection | 3-wire MPX bus |
| Safety rating | 1 |
| Environmental class | 2 |
| RF immunity | 30Vm |
| Coverage | 12 meters |
| Coverage angle (microwave) | Horizontal 80°, Vertical 32° |
| Coverage angle (PIR) | Horizontal 120°, Vertical 60° |
| Fresnel lens beams | 22 on 3 levels |
| Sensitivity | 8 adjustable levels |
| Pulse counter | Programmable from 1 to 4 |
| Initial stabilization time | 60 seconds |
| Special functions | Anti-masking AND-OR, programmable LEDs |
| Dimensions | 99 x 59 x 60 mm |
| Operating temperature | +5°C TO +40°C |
| Certification | CEI EN 50131-1 |
