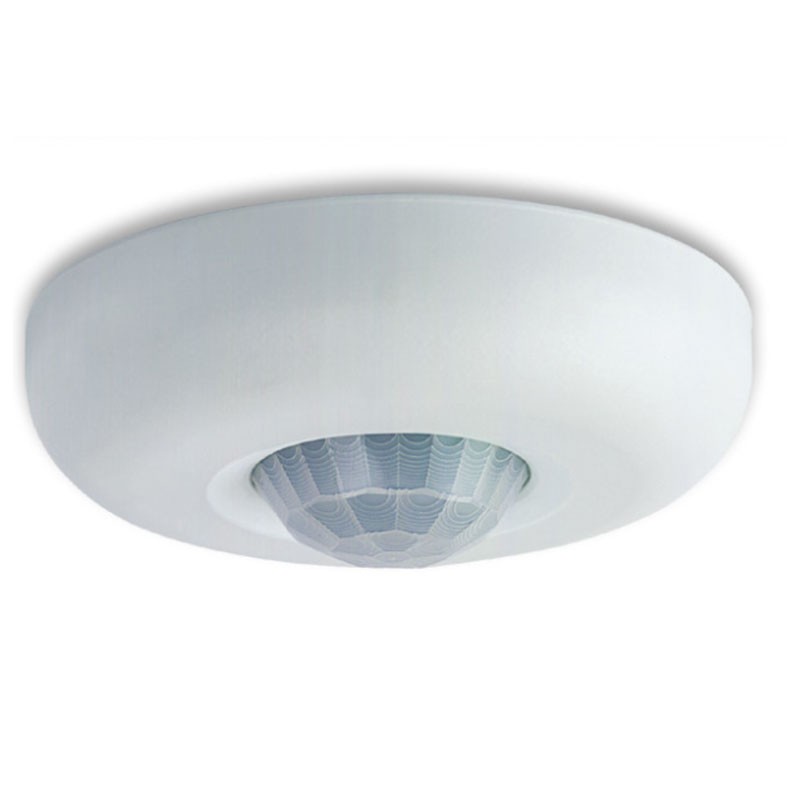

Hiltron dual technology ceiling mounted detector DT360
C1A DT360
8056450411417
Hiltron dual technology ceiling mount detector with the following features:
- Dual-element digital sensor (Digipyro™) 1
- Microwave sensor 24.125GHz
- Sensitivity adjustable by trimmer
- High immunity to RF 30Vm
- Nominal supply voltage 12/24Vdc ±5%.
- Maximum absorption 28mA
- Lens beams 43
- Coverage angle 360°C
€55.05
Items Available: 126
: 45
Other features:
- 8 meter coverage
- Solid state relay outputs NC 100mA, 50Vdc max. 1
- Initial stabilization time 40''
- Local signaling of alarm memory New function AND / OR automatic (anti-masking) programmable
- Tamper protection
- Pulse counter function 1 ÷ 4
- Signalling LED
- Security grade 1
- Environmental class 2
- Dimensions (H) 31mm - (Ø) 85mm
- Complies with CEI EN50131-1 standard
Data sheet
- Type: Detectors
