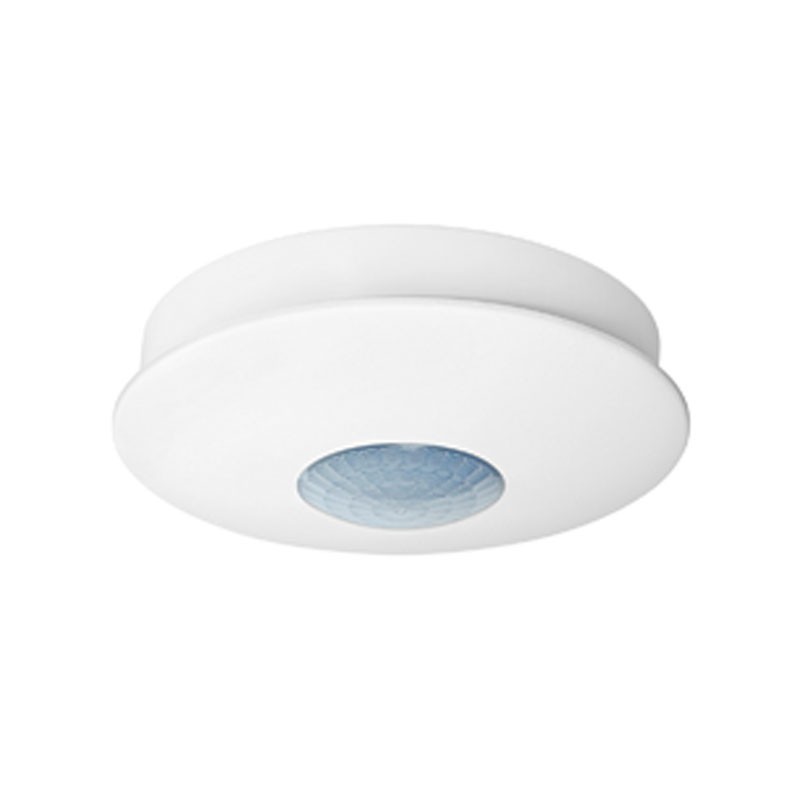

Urmet Ceiling-mounted Detector dual technology 1033/126
UTD 1033/126
8021156066865
Urmet dual technology ceiling detector suitable for all small tertiary applications (offices, shops, etc.). Its operating principle combines infrared (IR) and microwave (MW) technologies. It is ideal for installation in false ceiling panels.
€71.40
Items Available: 3
Features:
- ECO function: automatic microwave switch-off system (when the system is switched off)
- Anti-masking of both the IR and MW sections
- Dynamic temperature compensation
- Selectable sensitivity on 2 levels
- Adjustable LED display
- Ceiling installation
- Max coverage: 3.5m (height) x 7m (diameter to ground)
- Power supply: 12V +/- 3V
- Absorption max: 26mA
- Stand By power consumption: 12mA
- Microwave: dBm 10.525 GHz
- DEOL, selectable end-of-line resistors
- Fresnel lens with 79 zones on 5 floors
- Alarm time: 3 sec
- Opto Relay: 100mA / 24V
- Tamper: 100mA /30V
- Wall Tamper: 300mA / 48V
- Working temperature: -10°C/+55°C
- Ambient humidity: 95%
- Dimensions: 150 (Ø) x 46 (h) mm
- Performance level: EN50131-2-4 Grade 2, CLASS II
There are no reviews
Data sheet
- Type: Detectors
- Installation: Ceiling
