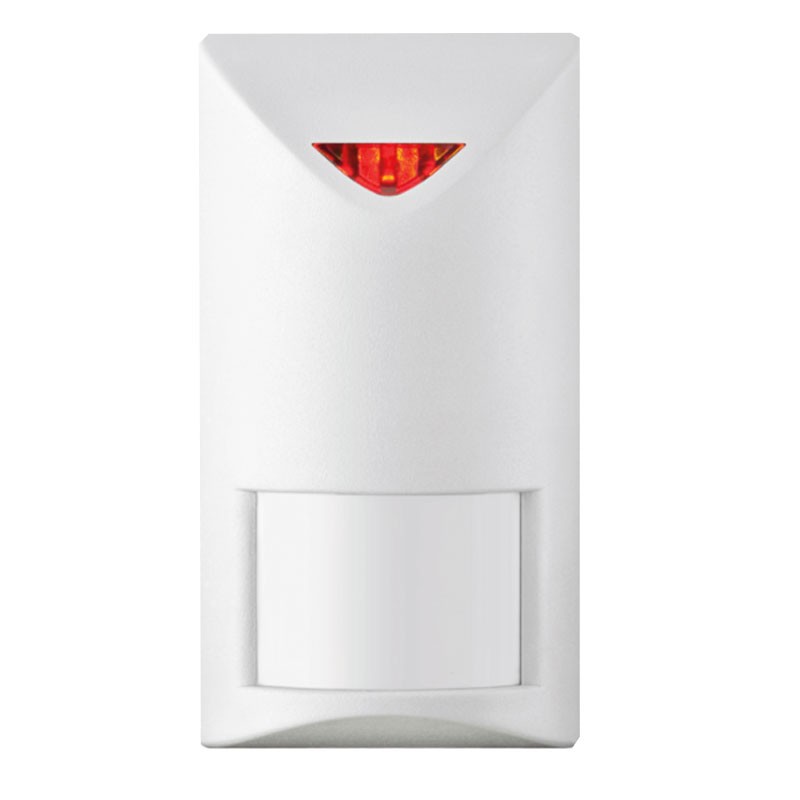

Elkron Dual Antimasking Technology Detector 80IM3600113

Elkron
Elkron
EKO 80IM3600113 8034034445614

Elkron dual technology volumetric anti-masking detector consisting of two technologies: Microwave (MW) and Passive Infrared (IRP). Suitable for all residential and tertiary applications, it stands out for its main performances, such as: anti-blinding function and programmable operating logic.

Do you have questions about this product or did you not find what you were looking for? Ask us!
Elkron Dual Antimasking Technology Detector 80IM3600113
€37.06
€37.06

€37.06
Tax included
Calculate shipping cost
Items Available: 29
Further availability of the manufacturer
€37.06

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Main functions:

  • ANTIMASKING: Anti-blinding of the microwave, any object capable of masking the MW generates an alarm displayed by flashing of the LEDs, and sent to the control unit via connection to the MASK terminal.
  • LED OFF: Disables the display of the detection LED, keeping the display of the memory enabled.
  • INIBIT: Allows the detector to know the status of the system and consequently to manage the memory and LED OFF functions.
  • MEMORY: When the system is switched off, the memory of the first alarm will be displayed. The memory will be reset the next time the system is switched on.
  • AB FUNCTION: In addition to the classic AND logic, the alarm can also be generated by repeated stresses on the MW section only.
  • CERTIFICATION: EN50131-2-4 grade 2 class II

Features:

  • Volumetric detector consisting of an infrared (IRP) + microwave (MW)
  • Max. range 15 mt
  • MW coverage: 90° horizontal - 36° vertical
  • IR coverage: 90°.
  • Sensitive zones: 18 on 4 floors with look down zones
  • LED OFF selectable
  • Rated supply voltage: 12V +/- 3V
  • Power consumption at 12 V: 20 mA nom. 34 mA max.
  • Microwave sensitivity (MW): adjustable with trimmer
  • MW frequency: 10.525 GHz
  • Emission power (EIRP): 8 dBm
  • Opto relay: 100 mA / 24V
  • Tamper: 100 mA / 30V
  • Opto relay anti-masking: 100mA / 24V
  • Operating temperature: -10°C ÷ +55°C
  • Dimensions: 107 (W) x 61.5 (H) x 43.5 (D) mm
  • Weight: 110 grams
  • Joint for wall or ceiling mounting (optional code 80SP1E00113)
