Product features:

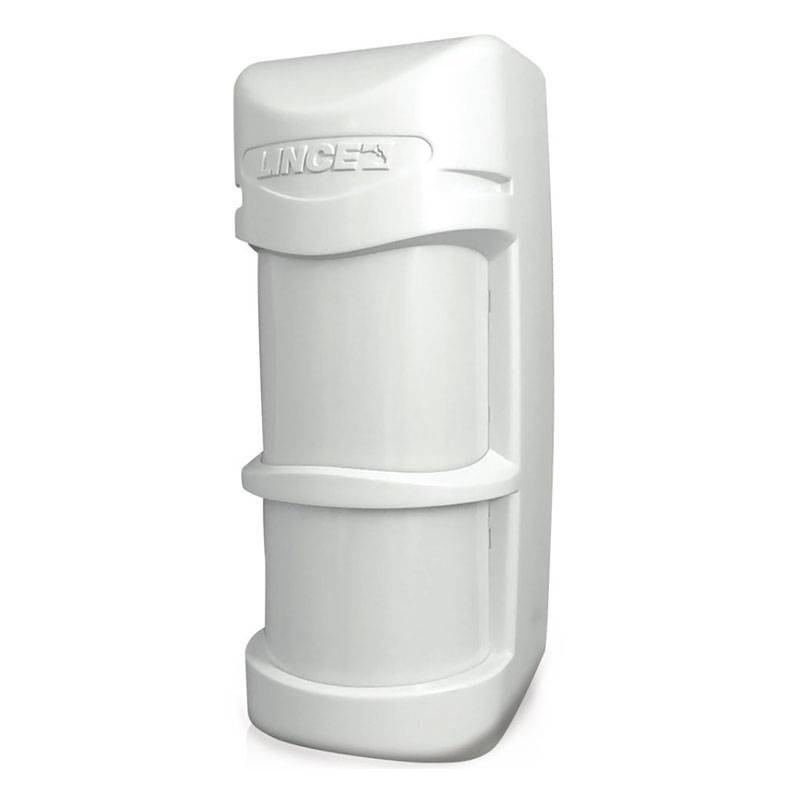

• GOLD 869 Series outdoor triple technology radio detector with range up to 1.5 km in free air
• Detection via 2 PIRs and a 24 GHz Microwave, installation height 1-1.2 m with area of a 12 m coverage and 85° aperture
• Settings executable directly from the control panel such as AND/OR settings (triple AND, double OR, the exclusion of the microwave, etc.), sensitivity of PIR, range of the microwave and masking detection
• Micrometric adjustment of the lower PIR allows the detection range to be adjusted from 3 to 12 m
• Equipped with optical anti-masking system and protection against opening and tearing; made entirely of impact and UV-resistant polycarbonate with U.S.-made Fresnel lens and sun filters made in Japan
• 4 signaling LEDs including 2 green for PIR, 1 yellow for microwave and 1 red for alarm
• Pet-immunity when used in triple AND
• Stainless steel mounting bracket (supplied) and pole brackets available upon request
• Equipped with WIN system (possibility of additional external 12 Vdc power supply that makes it comparable to a wired detector) is normally powered by non-rechargeable lithium battery 2/3 A 3.6 V 1,700 mAh (supplied)
• Also provided with connector for additional battery
• Environmental class IV (EN 50131-1), radio frequency immunity in accordance with EN50130-4
• Degree of protection IP45
• Operating temperature -25 °C ÷ +60 °C
• Dimensions: 81 x 76 x 189 mm




Specifications:

• Transmission frequencies: 869.40 MHz - 869.65 MHz 1 channel, 868.00 MHz - 868.60 MHz 4 channels
• Range: 1.5 km in free air
• LEDs: 4 (Green PIR1 and PIR2, yellow microwave, red alarm)
• Sensitivity and range adjustment: independent for the three technologies
• AND/OR settings: (PIR1/PIR2) & MW PIR1 & PIR2 & MW PIR1 & PIR2 (MW excluded)
• Pet-immunity: when set in triple AND or double AND (infrared with microwave excluded)
• Detection range: selectable from 3 to 12 m with 85° aperture and 90° internal adjustment
• Antimasking: 2 sensors, one for each PIR (excludable)
• Bottom PIR adjustment: micrometric with patented system
• Solar filters on PIRs: present with very high efficiency
• Electronic circuit: epoxy protected against moisture
• Body and Lens: made of highly UV-resistant material
• Protection: against opening and tearing with microswitch with gold-plated contacts
• Mounting bracket: made of stainless steel (supplied)
• Connector for additional battery




Compatible accessories:

• 1819 KR-KIT - Universal heater kit equipped with temperature sensor and hygrometer
• 1821 KR-KIT/E - Universal heater kit equipped with temperature sensor
• 1820 COVERKIT - Rain cover.
• 001805/00102AA - Stainless steel pole bracket kit.
