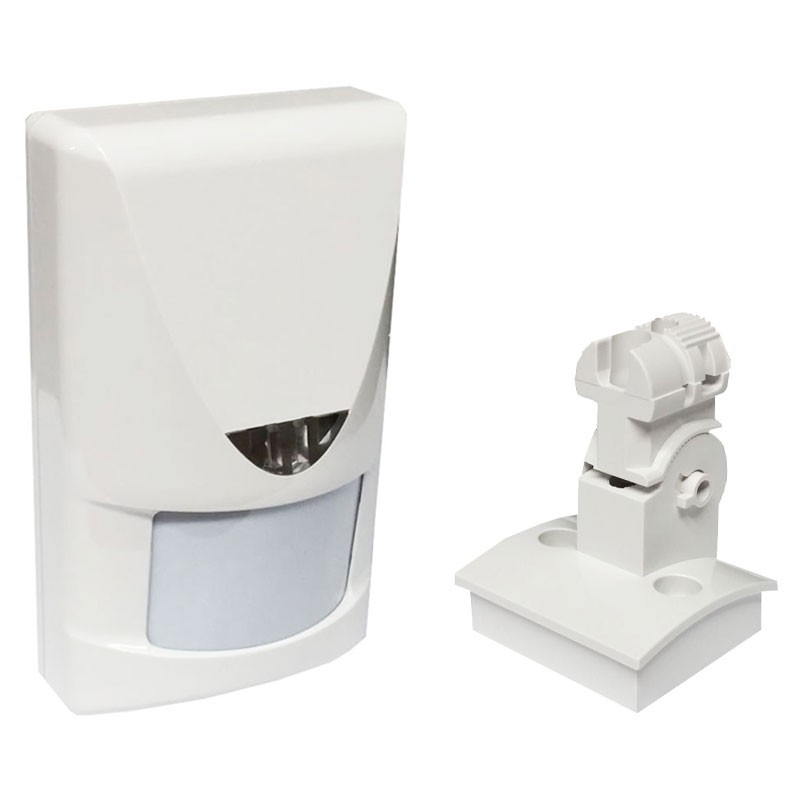

Bentel Antimask Dual Technology Detector AKAB-W
Bentel Antimask volumetriccombined dual technology detector, consisting of two sensors:
- 1 dual-element infrared (IRP)
- 1 microstrip microwave (uW).
The two sensors are viewed by a CPU that optimizes their performance.
Included in the package joint and screws for fixing included.
Bentel Antimask Dual Technology Detector AKAB-W
Tax included
The AKAB-W offers the advantage of 3 different detection modes on two sensitivity levels, allowing the most suitable one to be chosen for the site to be protected, thus achieving the best ratio between maximum detection capability and very little chance of misreporting.
In addition to the usual AND and OR theAKAB-W is equipped with EI mode, which is suitable for preventing sabotage with spray paint on the infrared lens.
In addition, theAKAB-W, offers several functions including Antimask autoset and alarm type memory.
Features:
- Antimask autoset
- Microwave synchronization
- Detection modes: - EI - OR - AND
- Selectable detection sensitivity
- Alarm type memory
- Led OFF interactive
- Antifliker
- Solid state ralays
- Microwave microstrip with pulsed emission
- Fresnell lens with 18 beams in 4 planes with look down zone
- Vertical adjust
- Sealed optics
- Wall tamper
- Full 90° coverage for 15m
- Corner, wall, joint mounting
- Swivel (optional) tamper-proof joint with 90° hr 30° vert adjustment IMQ Level II certified.
ANTIMASK: Any object capable of masking the uW generates an alarm displayed by flashing LEDs, and sent to the control panel via the MASK terminal. This condition remains until the cause that generated it is removed.
Data sheet
- Type:
- Detectors
- System:
- Antimasking
- Installation:
- Internal
