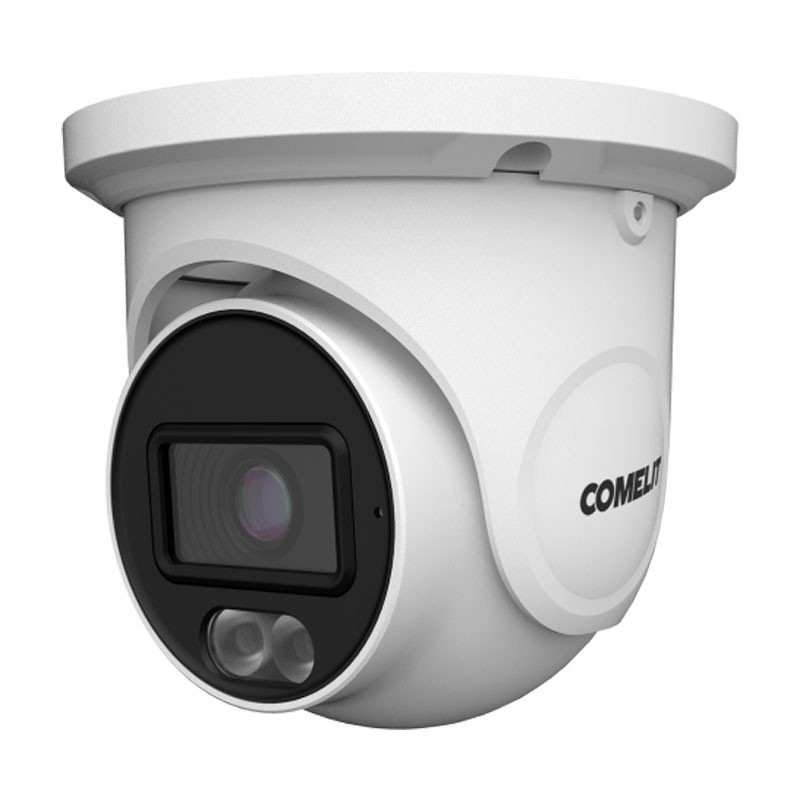

Comelit ColorUP IT08N2FA is an 8MP IP turret with 2.8 mm lens and Dual Light (IR + White LED) for colour recording even at night. Analytics with human/vehicle distinction, WDR 120 dB, PoE and IP67 casing.
8MP resolution @ 20 fps with fixed 2.8 mm lens
Night vision: White LED 20 m + IR Smart IR 20 m
ColorUp and Dual Light functions with human/vehicle distinction
Video analysis: area intrusion, line crossing, abandoned/removed object
WDR 120 dB for balanced backlight images
H.265+ compression and microSD up to 256 GB
Audio: built-in microphone + 1 audio input
Die-cast aluminium body IP67, 12VDC or PoE 802.3af power supply, ONVIF compatible
The Comelit Color Up IP 8MP IT08N2FA turret camera from the Next series is designed for those who want a compact and easily adjustable solution, ideal for both indoor and outdoor use. The turret format (often chosen for under balconies, porches, and entrances) offers an excellent combination of clean aesthetics and practicality: the camera is easy to aim and maintains a discreet profile, perfect for residential and commercial contexts. The 8MP resolution at 20 fps ensures detailed footage useful for identification and event verification.
The fixed 2.8 mm optics are suitable when a wide view is needed: entrances, driveways, loading-unloading zones, corridors, or checkout areas. It is a balanced choice to monitor an area with a single frame, without the need for frequent zoom or adjustments. During installation, the wide-angle lens helps reduce blind spots, improving the overall coverage of the system.
IT08N2FA integrates ColorUp technology, based on White LED with a range of up to 20 metres, to achieve colour night footage even in low light conditions. The Dual Light function combines IR + White LED, optimizing night performance and supporting analysis with distinction between people and vehicles. The Smart IR system (IR up to 20 m) helps maintain uniform lighting and reduce overexposure effects on nearby subjects, improving detail readability.
The video analytics functions make this turret particularly suitable for perimeters and access points:
Area Intrusion (distinction between people/vehicles)
Line Crossing (distinction between people/vehicles)
Abandoned / Removed Object
With more targeted events, false alarms related to irrelevant movements decrease, and the effectiveness of notifications and recordings increases.
The WDR 120 dB helps manage scenes with high contrast (backlight, direct lights, marked shadows), producing more balanced and readable images. On the recording front, the camera supports H.265+ / H.265 / H.264+ / H.264 / MJPEG to optimize space on NVR and network bandwidth. The micro SD slot up to 256 GB also allows local recording, useful as a backup or for compact systems.
The die-cast aluminum waterproof IP67 housing makes the IT08N2FA suitable for outdoor installations. Power can be supplied via PoE IEEE802.3af or 12VDC, simplifying wiring. ONVIF compatibility facilitates integration with third-party systems and compatible NVRs, while browser management is supported on Chrome, Edge, Firefox, and Safari, useful for quick configurations and maintenance.
For a clean and professional installation, accessories such as JBA-02A, JBA-TBBA, CMA-KTBBA, WMA-KTBBA, PMA-A, AMA-A, WMA-01A are recommended, ideal for junction boxes and dedicated mountings.
| Main Features | |
|---|---|
| Camera Sensor | 1/2.8" CMOS Ultra Starlight |
| Lens | Fixed 2.8 mm optics |
| Effective Pixels | 3840 × 2160 |
| Video Resolution | 4K (8 MP) |
| Horizontal Field of View | 106° |
| Vertical Field of View | 57° |
| Diagonal Field of View | 124° |
| Electronic Shutter | 1/3 ÷ 1/100000 s |
| Sensitivity | 0.005 lux (colour), 0 lux (B/W with IR) |
| Video Transmission | Triple streaming |
| Management Software | Comelit CCTV Manager |
| DORI | |
| Detection | 79 m |
| Observation | 32 m |
| Recognition | 16 m |
| Identification | 8 m |
| Software / Firmware Features | |
| Video Compression | H.265+, H.265, H.264+, H.264, MJPEG |
| Audio compression | G711A/U |
| Frame rate | 20 fps |
| Bit rate | 0.06 ÷ 12 Mbit/s |
| Supported protocols | DDNS, DHCP, FTP, HTTP, HTTPS, IPv4, IPv6, NTP, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, UDP, UPnP, SNMP, IEEE 802.1x, RTMP, ONVIF (S/G/M/T) |
| Firmware update | Via network |
| Simultaneous connected users | 10 (live) |
| Remote viewing | Browser Edge, Firefox, Chrome, Safari |
| Remote control | APP Comelit CCTV |
| Firmware version | 5.2.3 (5568) – 21/10/2024 |
| Functions | |
| Main functions | 3D-DNR, BLC, HLC |
| Motion detection | Yes |
| Video analysis | Scene change detection, video tampering, line crossing (human/vehicle distinction), abandoned/removed object, area intrusion, blurred image |
| Optimal person detection distance | 7 m |
| Optimal vehicle detection distance | 12 m |
| Backlight compensation | BLC, HLC |
| Digital effects | Mirror (horizontal/vertical), 180° rotation, ROI, saturation, brightness, contrast, sharpness, image flip |
| Wide Dynamic Range | WDR (120 dB) |
| DNR | 3D-DNR |
| White balance | Automatic, Indoor, Manual, Outdoor |
| Exposure control | Manual, Automatic |
| Brightness adjustment | Yes |
| Camera titling | Yes |
| Hardware features | |
| IR illumination distance | 20 m |
| White LED illumination distance | 20 m |
| Vandal protection | IK10 (metal case) |
| Environmental protection | IP67 |
| Audio inputs | 1 + microphone |
| Audio outputs | 0 |
| LAN | Ethernet 10/100 Mbit/s (RJ45) |
| Memory | Micro-SD up to 256 GB (not included) |
| General data | |
| Power supply | 12 VDC / PoE IEEE 802.3af |
| Maximum consumption | 6.5 W |
| Power type | PoE or external power supply |
| Dimensions | Diameter 108 mm × Height 96 mm |
| Weight | 480 g |
| Material | Die-cast aluminium |
| Case type | Turret |
| Colour | White |
| Operating temperature | -30 ÷ 60 °C |
| Operating humidity | 25 ÷ 95 % RH |
