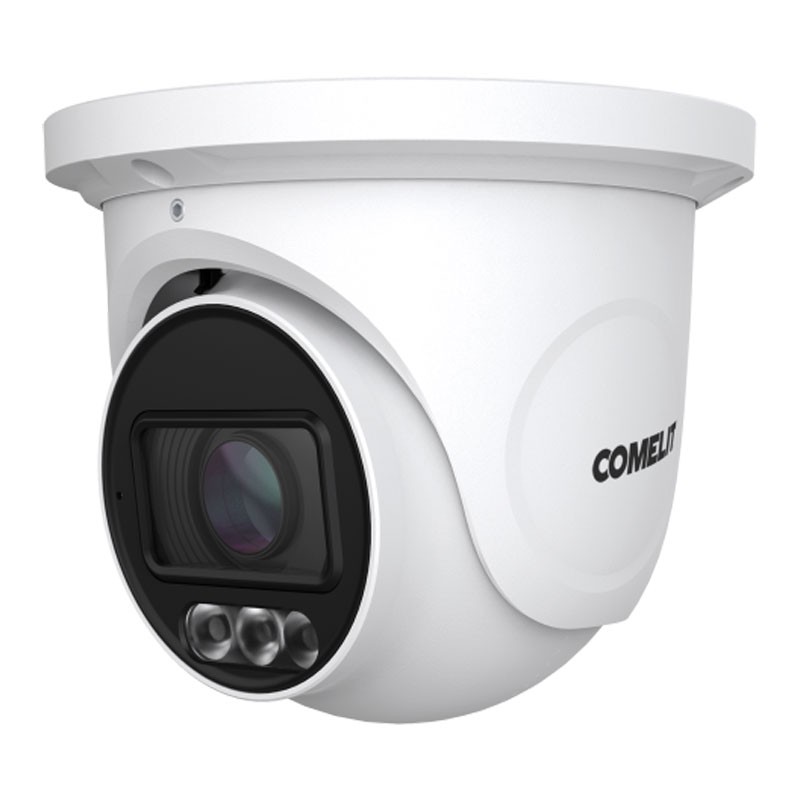

Comelit ColorUP Turret Camera 8MP IT08N2ZA: motorized zoom for customized coverage
The Comelit Color Up IP 8MP IT08N2ZA turret camera from the Next series is designed for installations where a compact, discreet, and at the same time extremely adaptable camera is needed. The turret format is ideal for wall or ceiling mounts, under canopies and in porticos, as it allows for easy aiming and a clean aesthetic. The real difference of this model is the motorized 2.8-12 mm lens: you can adjust the zoom and shooting angle to switch from a wide overview to a narrower and more targeted framing, useful on gates, entrances, restricted accesses, or passageways. In many cases, this allows optimizing coverage and reducing the number of cameras needed.
ColorUp and Dual Light: color images even in the absence of light
IT08N2ZA integrates the ColorUp function, which uses the White LED (range up to 30 meters) to maintain color night shots, improving the identification of people, vehicles, and details such as clothing or vehicle color. Additionally, the Dual Light mode combines IR + white light to optimize night vision and work more effectively based on events. The Smart IR system (up to 30 m) helps avoid overexposure on nearby subjects and ensures more uniform lighting, essential in areas with variable distances.
Advanced video analysis with people/vehicle distinction
To increase event accuracy and reduce false alarms, the camera offers analytics with classification:
-
Area Intrusion (people/vehicle distinction)
-
Line Crossing (people/vehicle distinction)
-
Abandoned / Removed Object
These functions are very useful in residential contexts (driveways, gardens, entrances) and professional settings (loading-unloading areas, parking lots, perimeters), where it is important to receive notifications only when a truly relevant event occurs.
WDR 120 dB and H.265+ compression: always balanced quality, lighter archives
The WDR 120 dB improves shots in scenes with strong contrast, such as entrances with external light, headlights, or marked shadows. For recording, support for H.265+ / H.265 / H.264+ / H.264 / MJPEG allows optimizing bandwidth and space on NVR. The micro SD slot up to 256 GB is perfect as a local backup or for compact installations without a dedicated recorder.
Audio, IP67 and PoE: ready for professional installations
The IT08N2ZA includes an integrated microphone and 1 audio input, useful for enriching event verification or integrating external audio sources. The die-cast aluminum waterproof IP67 body makes it suitable for outdoor use. Power is available both via PoE IEEE802.3af and via 12VDC, facilitating installation and reducing cabling. ONVIF compatibility simplifies integration with third-party platforms and compatible NVRs, while browser management is supported on Chrome, Edge, Firefox, and Safari.
Compatible accessories for neat installation
For a clean and complete installation, accessories such as JBA-TVA, CMA-TVA, WMA-TVA, PMA-A, AMA-A, WMA-02A are compatible, useful for junction boxes and dedicated supports.
| Main Features |
|---|
| Camera Sensor |
1/2.8" CMOS Ultra Starlight |
| Lens Type |
Motorized |
| Optics |
Varifocal 2.8 ÷ 12 mm |
| Effective Pixels |
3840 × 2160 |
| Video Resolution |
4K (8 MP) |
| Horizontal Field of View |
97° ÷ 34° |
| Vertical Field of View |
52° ÷ 18° |
| Diagonal Field of View |
116° ÷ 37° |
| Electronic Shutter |
1/3 ÷ 1/100000 s |
| Sensitivity |
0.005 lux (color), 0 lux (B/W with IR) |
| Video Transmission |
Triple streaming |
| Management Software |
Comelit CCTV Manager |
| DORI |
|---|
| Detection |
88 ÷ 277 m |
| Observation |
35 ÷ 111 m |
| Recognition |
17 ÷ 55 m |
| Identification |
8 ÷ 28 m |
| Software / Firmware Features |
|---|
| Video Compression |
H.265+, H.265, H.264+, H.264, MJPEG |
| Audio Compression |
G711A/U |
| Frame rate |
20 fps |
| Bit rate |
0.06 ÷ 12 Mbit/s |
| Supported protocols |
DDNS, DHCP, FTP, HTTP, HTTPS, IPv4, IPv6, NTP, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, UDP, UPnP, SNMP, IEEE 802.1x, RTMP, ONVIF (S/G/M/T) |
| Firmware update |
Via network |
| Simultaneous connected users |
10 (live) |
| Remote viewing |
Browser Edge, Firefox, Chrome, Safari |
| Remote control |
APP Comelit CCTV |
| Firmware version |
5.2.3 (5568) – 21/10/2024 |
| Functions |
|---|
| Main functions |
3D-DNR, BLC, HLC |
| Motion detection |
Yes |
| Video analysis |
Scene change detection, video tampering, line crossing (human/vehicle distinction), abandoned/removed object, area intrusion, blurred image |
| Optimal person detection distance |
15 m |
| Optimal vehicle detection distance |
20 m |
| Backlight compensation |
BLC, HLC |
| Digital effects |
Mirror (horizontal/vertical), 180° rotation, ROI, saturation, brightness, contrast, sharpness, image flip |
| Wide Dynamic Range |
WDR (120 dB) |
| DNR |
3D-DNR |
| White balance |
Automatic, Indoor, Manual, Outdoor |
| Exposure control |
Manual, Automatic |
| Brightness adjustment |
Yes |
| Camera titling |
Yes |
| Hardware features |
|---|
| IR illumination distance |
30 m |
| White LED illumination distance |
30 m |
| Vandal protection |
IK10 (metal case) |
| Environmental protection |
IP67 |
| Audio inputs |
1 + microphone |
| Audio outputs |
0 |
| LAN |
Ethernet 10/100 Mbit/s (RJ45) |
| Memory |
Micro-SD up to 256 GB (not included) |
| General data |
|---|
| Power supply |
12 VDC / PoE IEEE 802.3af |
| Maximum consumption |
12 W |
| Power type |
PoE or external power supply |
| Dimensions |
Diameter 130 mm × Height 110 mm |
| Weight |
660 g |
| Material |
Die-cast aluminium |
| Case type |
Turret |
| Colour |
White |
| Operating temperature |
-30 ÷ 60 °C |
| Operating humidity |
25 ÷ 95 % RH |
