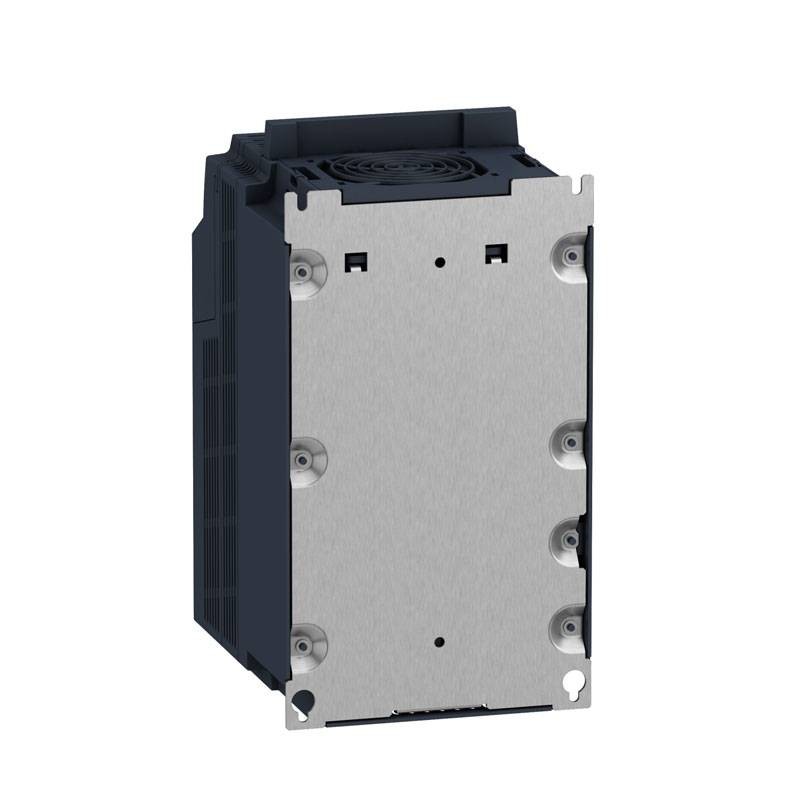

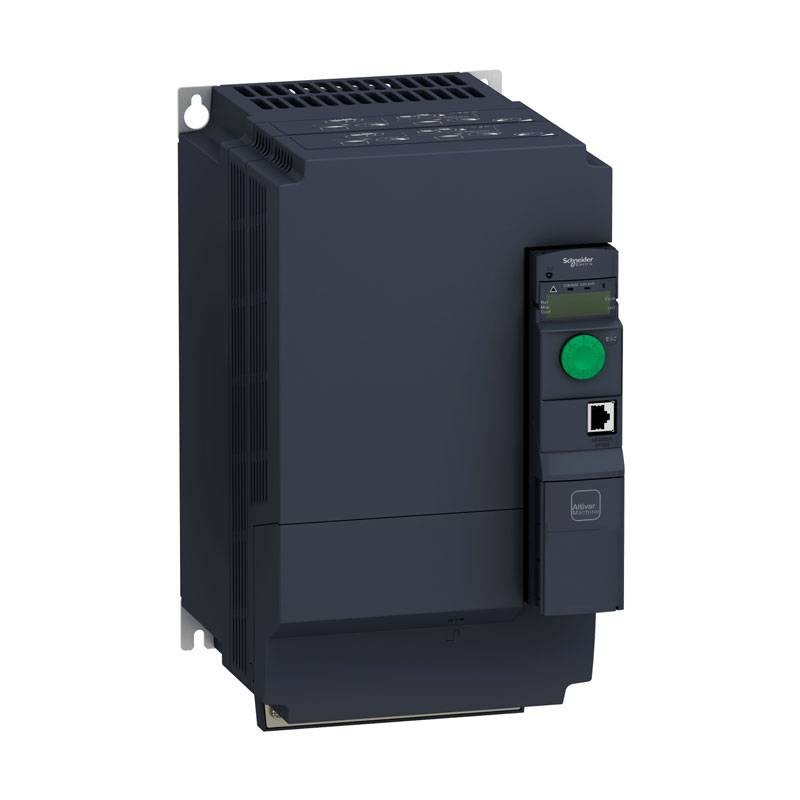

Schneider ATV320 11kW 380/500V IP20 Variable Speed Drive ATV320D11N4B
SNR ATV320D11N4B
3606480931314
Schneider ATV320 variable speed drive with the following characteristics:
- Rated supply voltage: 380/500 V - 15/10%.
- Rated output current: 27.7 A
- Motor power in kW: 11 kW for heavy duty use
- Degree of protection: IP20
- Minimum switching current: 5 mA at 24 V DC R1A, R1B, R1C, R2A, R2C relay output
- Maximum input current per phase: 36.6 A
- Maximum output voltage: 500 V
- Apparent power: 22.2 kVA at 500 V (heavy duty)
- Mains frequency: 50 to 60 Hz
Optimized application of power and torque for ventilation and pumping: up to 30% energy savings.
€1,338.12
Items Available: 7
: 1
Schneider Electric's Altivar 320 variable speed drive is capable of powering 3-phase synchronous and asynchronous power motors with a maximum power rating of 11kilowatts/15cavalent and a voltage rating of 380to 500Vac. This variable speed/frequency drive (VSD / VFD) is designed for simple industrial and commercial machines, such as packaging, material handling machinery, mechanical actuators and lifting devices. Its Book form factor allows for a smaller machine footprint, particularly when mounted in a control cabinet next to other control devices such as PLC, I/O units. Advanced connectivity, including CANopen and Modbus, enables deep integration into automation architectures without the use of additional network equipment.
Advantages:
- Book form factor enables simple and compact installation in automation cabinets.
- Transient maximum torque function prevents shutdown due to jammed machines.
- Advanced connectivity, including CANopen, EtherNet/IP, Modbus TCP, EtherCAT, Profibus, ProfiNet and DeviceNet.
- Control of asynchronous and synchronous motors, including IE2, IE3 and PM motors.
Features:
- Mounting mode: wall-mounted
- Built-in class C3 EMC filter
- Number of digital inputs: 7
- Digital input type: STO safe torque off, 24 V DC, impedance: 1.5 kOhm - DI1...DI6 logic inputs, 24 V DC (30 V) - DI5 programmable as pulse input: 030 kHz, 24 V DC (30 V)
- Number of digital outputs: 3
- Digital output type: open collector DQ+ 01 kHz 30 V DC 100 mA - open collector DQ- 01 kHz 30 V DC 100 mA
- Number of analog inputs: 3
- Analog input type: Voltage AI1: 0...10 V DC, impedance: 30 kOhm, 10 bit resolution - Bipolar differential voltage AI2: +/- 10 V DC, impedance: 30 kOhm, 10 bit resolution - Current AI3: 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other models by configuration), impedance: 250 Ohm, 10 bit resolution
- Number of analog outputs: 1
- Analog output type: Current configurable with AQ1 software: 0...20 mA impedance 800 Ohm, 10 bit resolution - Voltage configurable with AQ1 software: 0...10 V DC impedance 470 Ohm, 10 bit resolution
- Tolerance relative to symmetrical grid frequency: 5 %.
- Base load current with high overload: 3.3 A
- Power dissipation in W: 370 W fan: at 380 V, switching frequency 4 kHz
- Pollution degree: 2
- Air transport ambient temperature: -25/70 °C
- Operating ambient temperature: -10/50 °C without derating - 50/60 °C with derating factor
- Storage temperature: -25/70 °C
- Dimensions: height 404 mm - width 180 mm - depth 232 mm
- Weight: 6.8 kg
Relay output type:
- Configurable relay logic R1A 1 NO electrical life 100000 cycles
- Configurable relay logic R1B 1 NC electrical life 100000 cycles
- Configurable relay logic R1C
- Configurable relay logic R2A 1 NO electrical life 100000 cycles
- Configurable relay logic R2C
There are no reviews
Data sheet
- Type: Inverter
- Voltage: 500V
- Degree of protection: IP20
