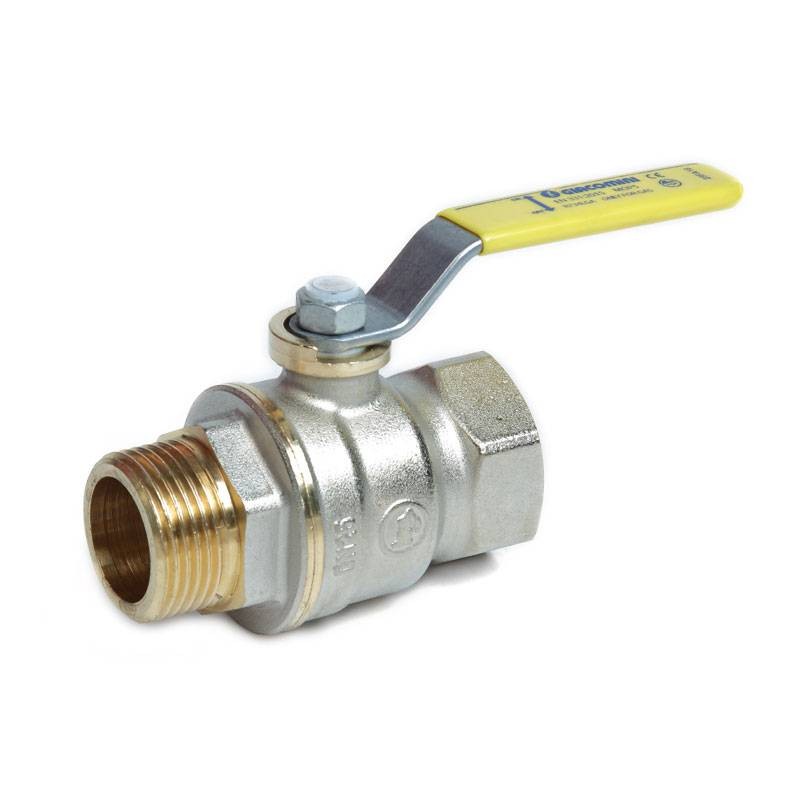

Giacomini Gas Ball Valve with Lever G 1 F x G 1 M R734LGAX005

Giacomini
Giacomini
GIM R734LGAX005 8009902347178

The Giacomini R734LGAX005 Ball Valve is made of nickel-plated brass, designed for gas systems in families 1, 2 and 3 (EN 437). This model features a yellow lever handle for easy opening and closing. With full passage, it is ideal for installation in gas systems and is distinguished by its high reliability and durability:

  • Material: nickel-plated brass

  • Connections: Female-to-male (G 1F x G 1M)

  • Full passage: Ensures unobstructed flow

  • Handle: Yellow lever for easy operation

  • Temperature range: Operates from -20°C to +60°C

  • Certification: Conforms to EN 331:2015 standard for gas installations.

Do you have questions about this product or did you not find what you were looking for? Ask us!
Giacomini Gas Ball Valve with Lever G 1 F x G 1 M R734LGAX005
€10.87
€10.87

€10.87
Tax included
Calculate shipping cost
Items Available: 46
Further availability of the manufacturer
€10.87

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Giacomini Gas Ball Valve with Lever G 1F x G 1M R734LGAX005:

The Giacomini Gas Ball Valve with Lever is a robust and safe solution for controlling gas flows. Made of nickel-plated brass, this valve resists corrosion and provides high performance even in harsh working environments. Thanks to the yellow lever, the user can operate the valve easily, allowing precise and quick control of gas flow.

This valve is certified according to EN 331:2015, making it suitable for use in gas systems of families 1, 2 and 3, with a wide temperature range from -20°C to +60°C, suitable for most domestic and industrial applications.

Main applications:

  • Residential and industrial gas systems
  • Flow regulation in gas distribution systems
  • Use in environments with a temperature range of -20°C to +60°C


Main Features and Materials

FeaturesDetail
Suitable for first, second and third family gas systems EN 437
Total passage /
Brass valve UNI EN 12165 CW617N nickel-plated
Control rod With double sealing system
Nut With anti-corrosion coating, guarantee seal and hologram
Lever handle Made of steel with anti-corrosion treatment and yellow PVC coating
Certified EN 331:2015


Fields of Use

FeaturesDetail
Temperature range -20 ÷ 60 °C
Maximum operating pressure (MOP) with gas 0.5 MPa (5 bar)

There are no reviews

Data sheet

Type:
Ball valves
Connection:
M/F
System:
Gas
Connections:
1 inch
