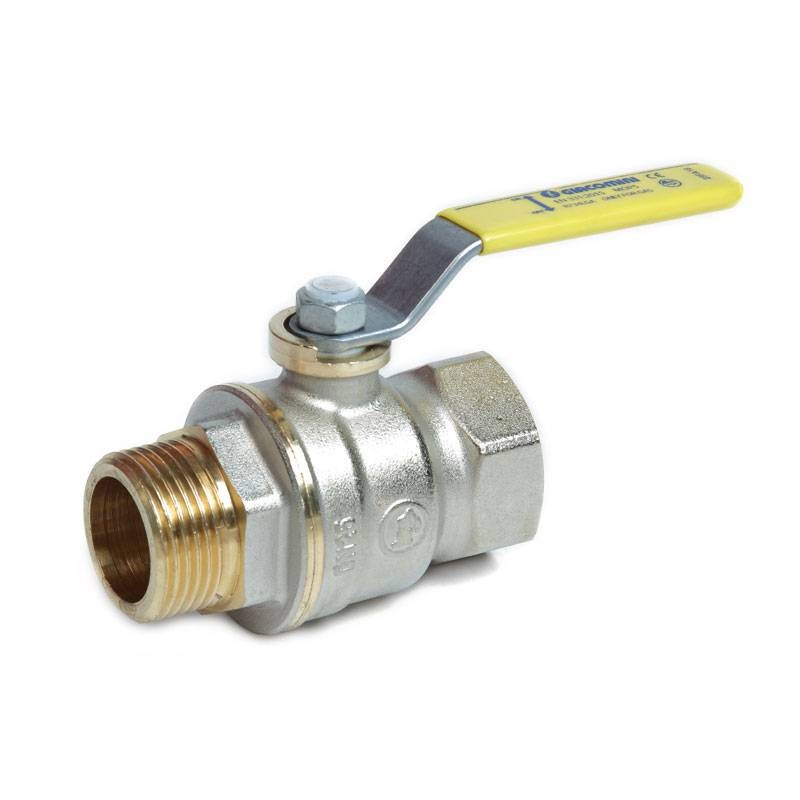

Giacomini Gas Ball Valve with Lever G 1-1/2 F x G 1-1/2 M R734LGAX007
GIM R734LGAX007
8009902347581
The Giacomini R734LGAX007 ball valve is made of nickel-plated brass, designed for gas systems of different families. It provides reliability, safety, and long life with full passage and yellow lever handle for easy and effective control:
-
Material: nickel-plated brass
-
Connections: G 1-1/2 F x G 1-1/2 M
-
Connections: female-to-male
-
Operating temperature: -20°C up to 60°C
-
Certification: EN 331:2015
-
Lever type: Yellow lever handle
-
Full passage: Ensures optimal flow.
€26.05
Items Available: 16
Giacomini Gas Ball Valve with Lever G 1-1/2F x G 1-1/2M
The Giacomini R734LGAX007 ball valve is a robust and versatile valve designed for first, second and third family gas systems, complying with EN 437 standards. This product is ideal for ensuring the safety and efficiency of domestic and industrial systems, thanks to its full passage that optimizes gas flow and its robust features. The valve is made of nickel-plated brass, a material that offers corrosion resistance, durability, and high performance.
Functions and applications of the Giacomini ball valve
Simple and safe control
The valve features a yellow lever handle that allows quick and easy operation to close and open the gas flow, with precise adjustment to prevent leakage.
Versatile and reliable installation
Suitable for a variety of applications, it can be used for first, second and third family gas systems in domestic, commercial or industrial settings. With its wide operating temperature range of -20°C to 60°C, it is a perfect choice for a variety of uses.
Why choose the Giacomini ball valve
Safety and regulatory compliance
Certified EN 331:2015, the valve meets safety requirements for use in gas systems. The certification guarantees that the valve has passed rigorous quality tests, ensuring a safe installation that meets European standards.
Strength and long service life
The nickel-plated brass material not only ensures corrosion resistance but also extends the life of the valve, reducing the need for frequent maintenance. It is therefore ideal for installations that require long-term reliability.
Technical characteristics of the Giacomini ball valve
- Material: nickel-plated brass
- Connections: G 1-1/2F x G 1-1/2M
- Operating temperature: -20°C / +60°C
- Certification: EN 331:2015
- Passage: Total
- Lever: Yellow handle
- Certified for gas installations: First, second and third family (EN 437)
- Standard: EN 331:2015
Main Features and Materials
| Features | Detail |
|---|---|
| Suitable for gas installations of the first, second and third family | EN 437 |
| Total passage | / |
| Brass valve | UNI EN 12165 CW617N nickel-plated |
| Control rod | With double sealing system |
| Nut | With anti-corrosion coating, guarantee seal and hologram |
| Lever handle | Made of steel with anti-corrosion treatment and yellow PVC coating |
| Certified | EN 331:2015 |
Fields of Use
| Features | Detail |
|---|---|
| Temperature range | -20 ÷ 60 °C |
| Maximum operating pressure (MOP) with gas | 0.5 MPa (5 bar) |
There are no reviews
Data sheet
- Type: Ball valves
- Connection: M/F
- System: Gas
- Connections: 1-1/2 inches
