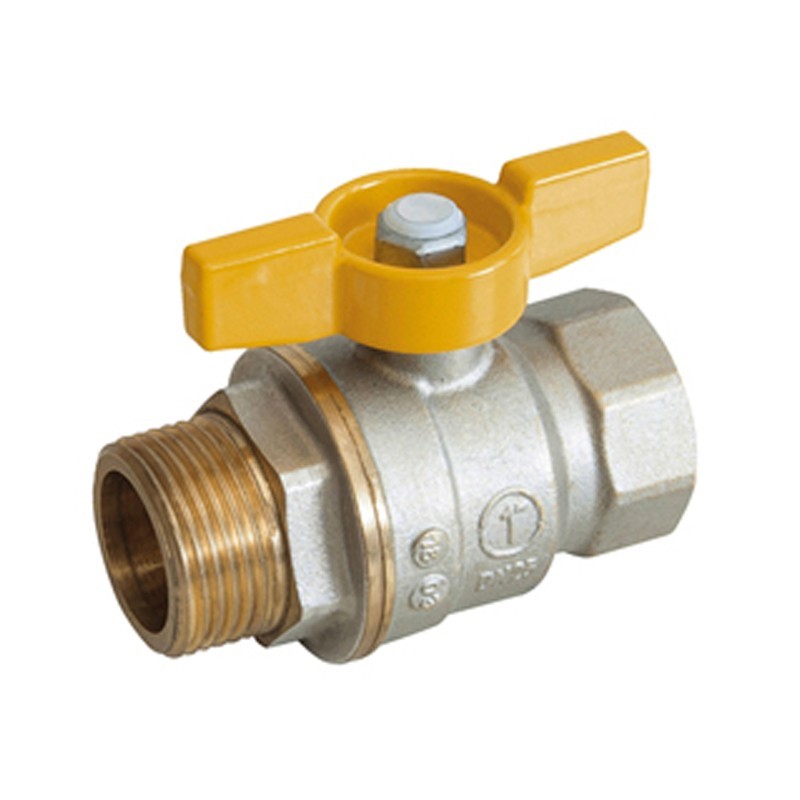

Giacomini Gas ball valve G 1/2 F x G 1/2 M R734GAX003
GIA R734GAX003
8009902346751
Giacomini gas ball valve dimensions: G 1/2F x G 1/2M nickel-plated brass, with female-male connections.
Suitable for dangerous gases.
Giacomini Gas ball valve G 1/2 F x G 1/2 M R734GAX003
€4.50
€4.50
Tax included
Tax included
Pay in installments with Klarna
Items Available: 252
Features:
- Giacomini Series
- Yellow butterfly handle
- Total passage
- For first, second and third family gas systems (EN 437)
- Temperature range: -20÷60 °C
- Certified EN 331:2015
- Valve in nickel-plated brass UNI EN 12165 CW617N
- Control rod with double sealing system
- Nut with anti-corrosion coating, guarantee seal and hologram
- Maximum operating pressure (MOP) with gas: 0,5 MPa (5 bar)

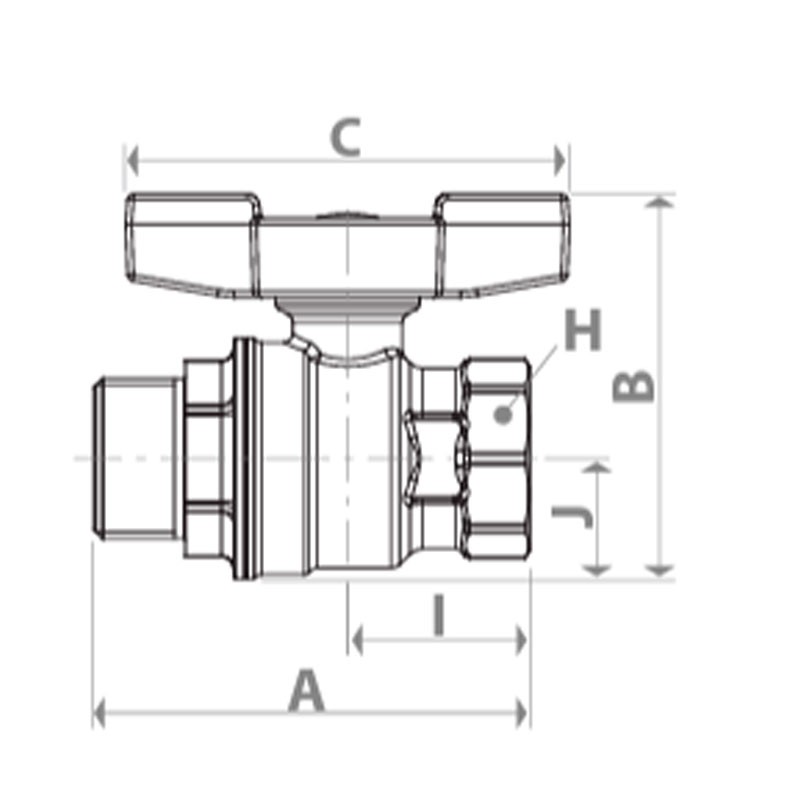

Dimensions:
- DN 15
- H 63 mm
- I 27 mm
- B 54 mm
- J 16 mm
- C 63 mm
- H ch.25
There are no reviews
Data sheet
- Type:
- Ball valves
- Connection:
- M/F
- System:
- Gas
- Connections:
- 1/2 inches
