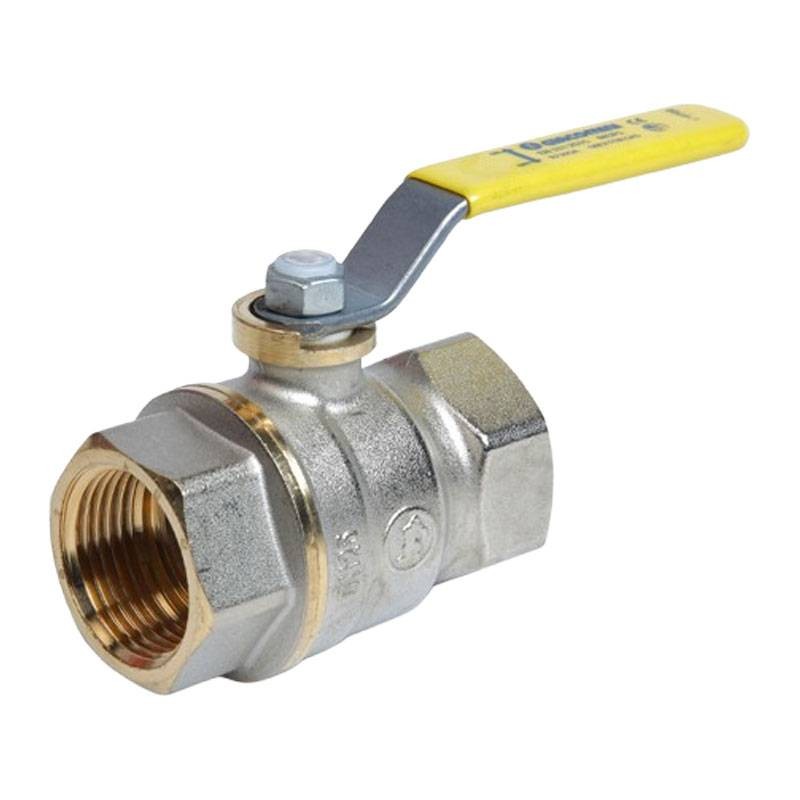

Giacomini Boiler Gas Ball Valve F/F 1 inch R730GAX005
GIM R730GAX005
8009902347079
Giacomini gas ball valve, yellow lever handle. Full passage. For first, second and third family gas systems, with the following features:
-
Connections: Female/Female 1 inch
-
Handle: Steel lever handle with yellow coating
-
Body: Nickel-plated brass
-
Maximum operating pressure: 5 bar (MOP 0.5 MPa)
-
Passage: Total for maximum flow rate
€10.14
Items Available: 50
: 3
Giacomini full passage gas ball valve
This straight ball valve with full passage is designed for systems supplied with first, second, and third family gases, according to EN 437, and is certified EN 331:2015, meeting the requirements for domestic and industrial distribution.
Sturdy and safe construction
The valve body is made of brass with nickel-plated finish to ensure mechanical strength and protection against corrosion. The steel lever with yellow PVC coating facilitates its identification and use in gas networks.
Reinforced sealing system
Equipped with a control rod with a double sealing system and a nut protected with anti-corrosion coating, the valve ensures high tightness and long service life even under continuous use. Warranty seal and authenticity hologram guarantee traceability and construction quality.
Ideal for civil and technical use
With a temperature range of -20 to +60 degrees and an operating pressure of up to 5 bar (0.5 MPa), the valve is suitable for indoor or outdoor protected gas systems in both residential and industrial settings.
Technical Specifications Giacomini Gas Ball Valve
Technical Data
| Feature | Value |
|---|---|
| Connections | G 1" female x cap G 1" female |
| Body material | Nickel-plated brass UNI EN 12165 CW617N |
| Handle | Red aluminum single-finned butterfly |
| Passage | Standard |
| Sealing system | Rod with double O-ring |
| Maximum operating pressure | 16 bar (1.6 MPa) at 20 °C (68 °F) |
| Temperature range | -20 °C to +120 °C (down to -20 °C with 50% glycol) |
Applications
| Fields of use | Description |
|---|---|
| Main Uses. | Plumbing systems, under boiler, meter connections, heating and cooling water |
There are no reviews
Data sheet
- Type: Ball valves
- Connection: F/F
- System: Gas
- Connections: 1 inch
