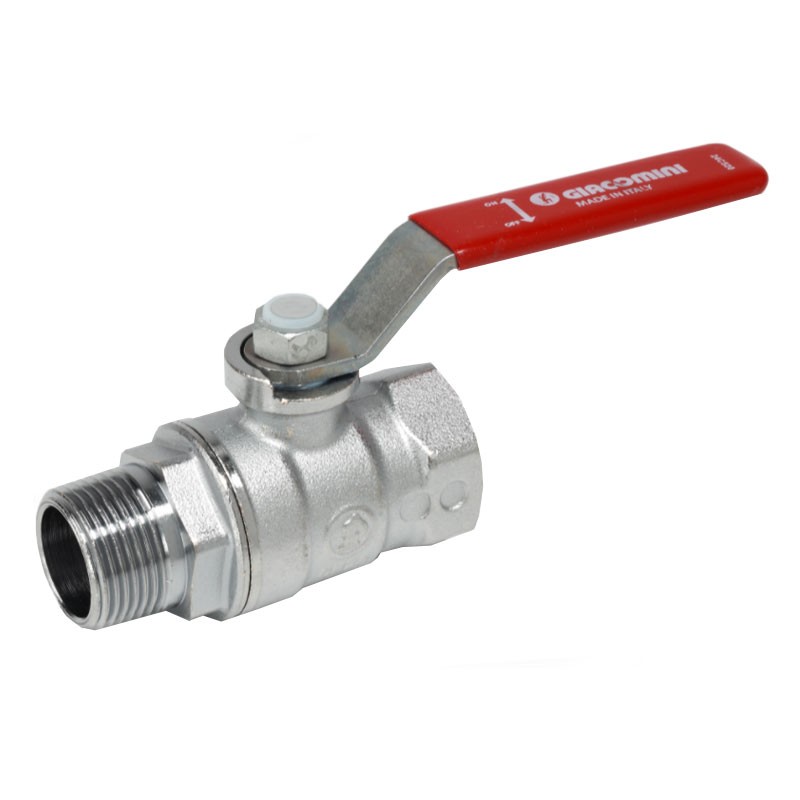

Giacomini Ball valve with red lever handle M/F 3/4 R254LX004
GIM R254LX004
8009902002459
Giacomini ball valve is designed for reliability and durability in plumbing, heating, cooling, and for use with nonhazardous gases and liquid hydrocarbons, with the following features:
-
Connections: Male/Female 3/4 inch
-
Nominal diameter: 18 mm
-
Nominal flow rate: 18.5 Kv
-
Material: Chrome-plated brass with control rod equipped with double O-ring seal
-
Lever handle: Steel with anti-corrosion treatment and red PVC coating
-
Additional protection: Nut with anti-corrosion coating, warranty seal and hologram
-

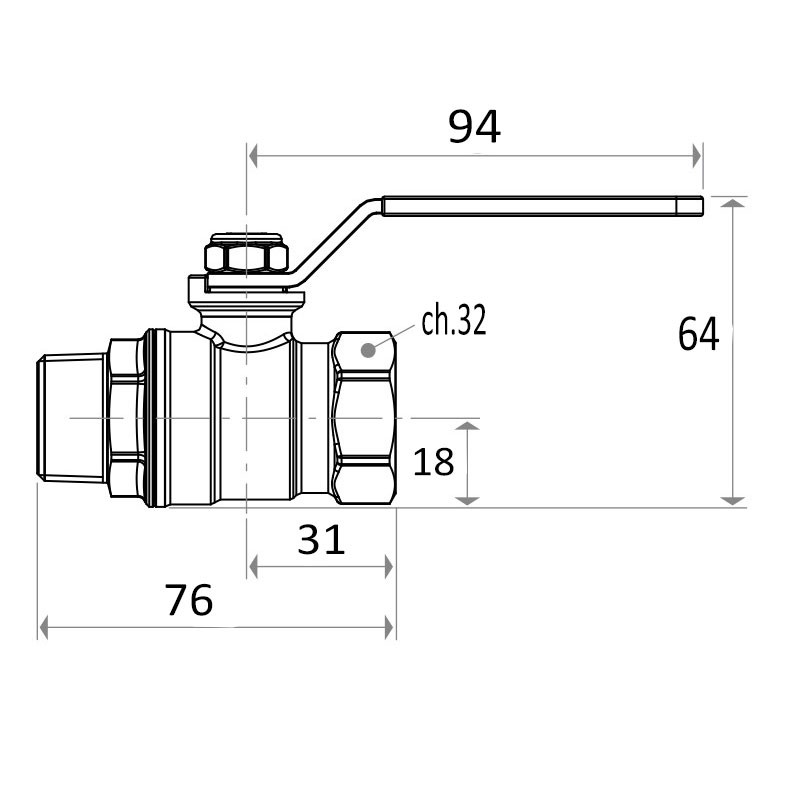

Dimensions: 76x31x64x18x94xch.32 mm
€6.60
Items Available: 133
: 36
Giacomini Ball valve with red lever handle M/F 3/4
Strength and Reliability
Made with high-quality materials and a double O-ring seal, the valve offers reliable performance even under demanding operating conditions.
Application Versatility
Suitable for plumbing, non-hazardous gases and liquid hydrocarbons, this valve is ideal for multiple residential and industrial uses.
Ergonomic Design
The red PVC-coated lever handle provides a comfortable grip and intuitive operation, even in harsh environments.
General Features
| Connections | Male/Female 3/4 inch |
|---|---|
| Nominal diameter | 18 mm |
| Kv | 18,5 |
Operating Temperature
| Minimum operating temperature | -20 degrees with 50 percent glycol solutions |
|---|---|
| Maximum operating temperature with dry saturated steam | 185 degrees with 1.05 MPa (10.5 bar) |
| Temperature range with liquid hydrocarbons | -20/+60 degrees |
| Maximum operating pressure at 20 degrees with liquid hydrocarbons | 1.2 MPa (12 bar) |
Materials and Construction
| Valve | Chrome-plated brass |
|---|---|
| Drive rod | Double O-ring seal |
| Nut | With anti-corrosion coating, warranty seal and hologram |
| Handle | Painted aluminum butterfly |
| Color | Red |
There are no reviews
Data sheet
- Type: Ball valves
- Connection: M/F
- System: Water
- Connections: 3/4 inches
