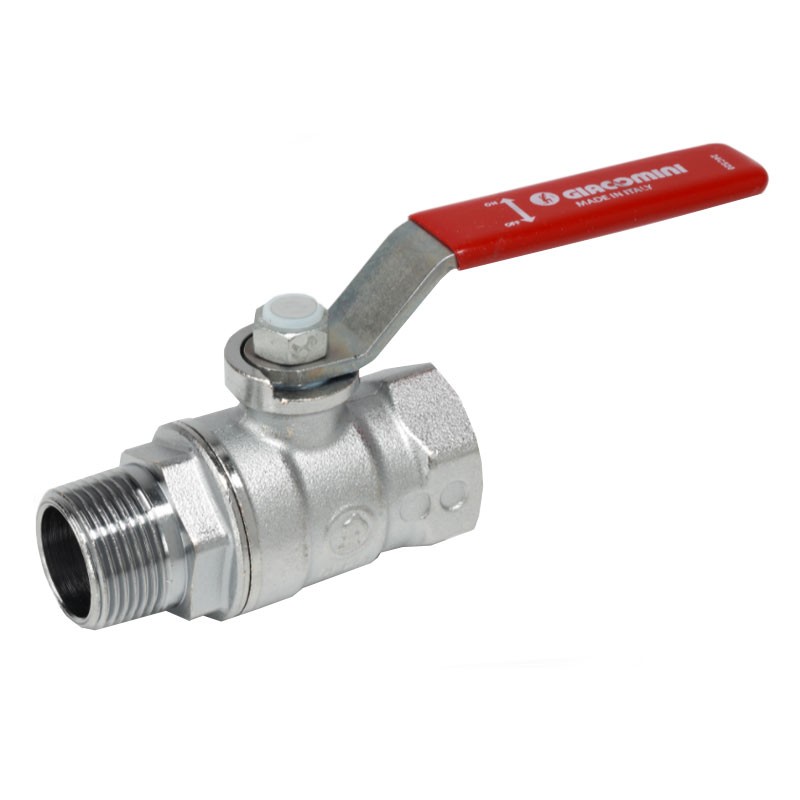

Giacomini ball valve with red lever handle M/F 1/2 R254LX003

Giacomini
Giacomini
GIM R254LX003 8009902002428

Giacomini ball valve is designed for reliability and durability in plumbing, heating, cooling, and for use with nonhazardous gases and liquid hydrocarbons, with the following features:

  • Connections: Male/Female 1/2 inch

  • Nominal diameter: 14 mm

  • Nominal flow rate: 10.2 Kv

  • Material: Chrome-plated brass with control rod equipped with double O-ring seal

  • Lever handle: Steel with anti-corrosion treatment and red PVC coating

  • Additional protection: Nut with anti-corrosion coating, warranty seal and hologram

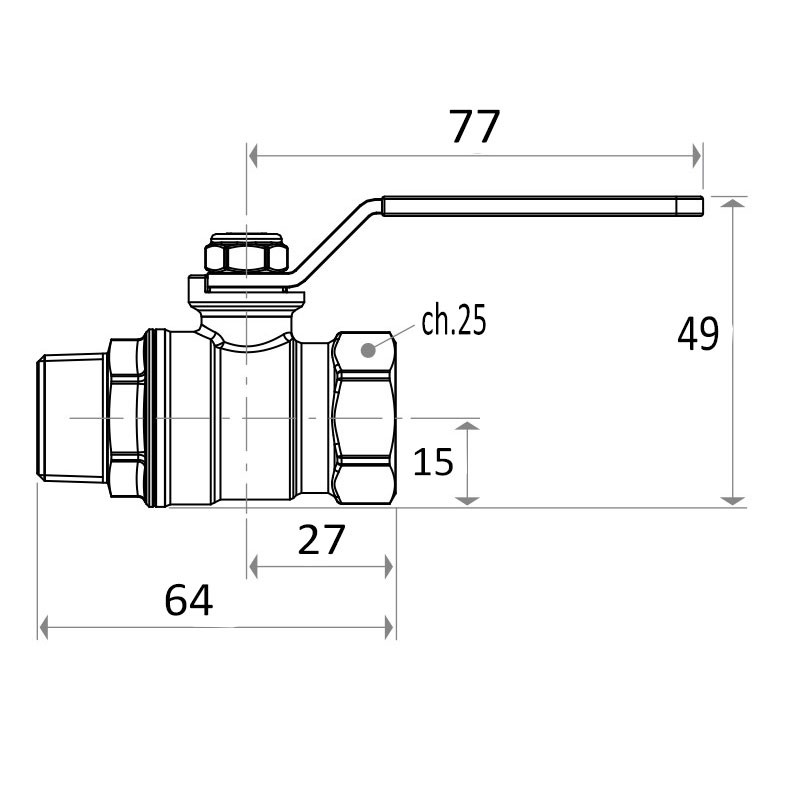

  • Dimensions: 64x27x49x15x77xch.25 mm

Do you have questions about this product or did you not find what you were looking for? Ask us!
Giacomini ball valve with red lever handle M/F 1/2 R254LX003
€4.12
€4.12

€4.12
Tax included
Calculate shipping cost
Items Available: 224
Further availability of the manufacturer
€4.12

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Giacomini ball valve with red lever handle M/F 1/2

Strength and Reliability

Made with high-quality materials and a double O-ring seal, the valve offers reliable performance even under demanding operating conditions.

Application Versatility

Suitable for plumbing, non-hazardous gases and liquid hydrocarbons, this valve is ideal for multiple residential and industrial uses.

Ergonomic Design

The red PVC-coated lever handle provides a comfortable grip and intuitive operation, even in harsh environments.

General Features

Connections Male/Female 1/2 inch
Nominal diameter 14 mm
Kv 10,2


Operating Temperature

Minimum operating temperature -20 degrees with 50 percent glycol solutions
Maximum operating temperature with dry saturated steam 185 degrees with 1.05 MPa (10.5 bar)
Temperature range with liquid hydrocarbons -20/+60 degrees
Maximum operating pressure at 20 degrees with liquid hydrocarbons 1.2 MPa (12 bar)


Materials and Construction

Valve Chrome-plated brass
Drive rod Double O-ring seal
Nut With anti-corrosion coating, warranty seal and hologram
Handle Painted aluminum butterfly
Color Red

Ottimo prodotto e sempre una garanzia la valvola giacomini. chiude quando serve che chiuda anche dopo tanti anni.

Read all reviews

Data sheet

Type:
Ball valves
Connection:
M/F
System:
Water
Connections:
1/2 inches
