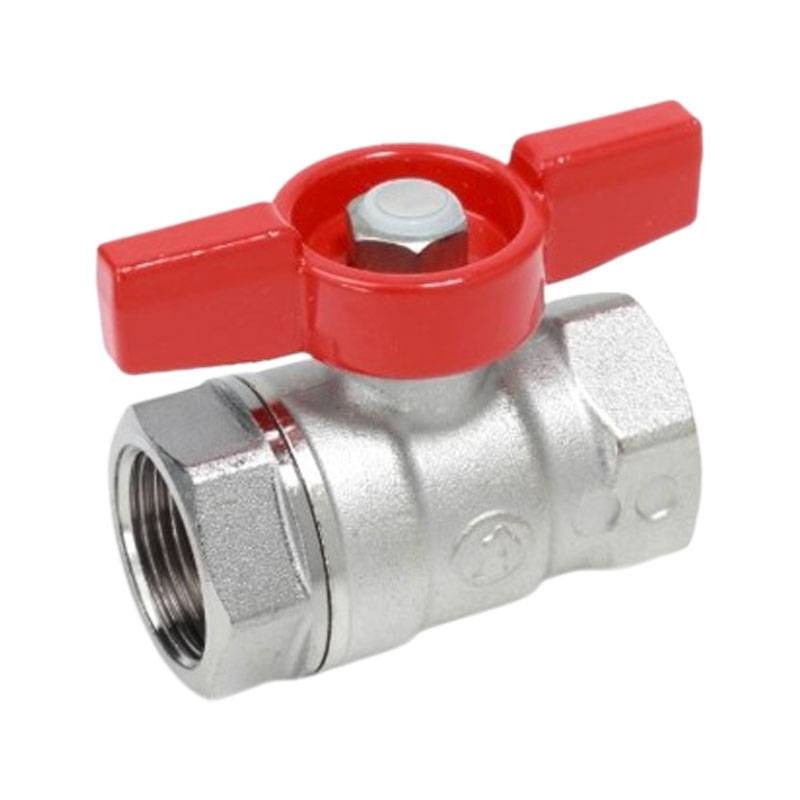

Giacomini ball valve with red butterfly handle F/F 1 inch R251X005
GIM R251X005
8009902001209
Giacomini Ball Valve with Red Butterfly Handle is designed for reliability and durability in plumbing, heating, cooling and for use with liquid hydrocarbons and nonhazardous gases, ideal for professional and industrial applications, with the following features:
-
Connections: Female/Female 1 inch
-
Nominal diameter: 22 mm
-
Material: Chrome-plated brass with control rod equipped with double O-ring seal
-
Butterfly handle: Red painted aluminum for firm grip and sturdy design
-
Standard passage: Suitable for multiple applications
-
Protection: Nut with anti-corrosion coating, warranty seal and hologram
€9.90
Items Available: 88
: 15
Giacomini ball valve with red butterfly handle F/F 1 inch
Reliability and Safety
The valve is designed with high-quality materials and a double O-ring seal, ensuring durable performance and resistance to demanding operating conditions.
Application Versatility
Ideal for plumbing, heating, cooling, and for use with liquid hydrocarbons and nonhazardous gases, it offers a wide range of applications.
Design and Protection
Equipped with an ergonomic butterfly handle and a corrosion-resistant coated nut, the valve ensures long service life and ease of use.
General Features
| Connections | Female/Female 1 inch |
|---|---|
| Nominal diameter | 22 mm |
| Kv | 36,3 |
Operating Temperature
| Minimum operating temperature | -20 degrees with 50 percent glycol solutions |
|---|---|
| Maximum operating temperature with dry saturated steam | 185 degrees with 1.05 MPa (10.5 bar) |
| Temperature range with liquid hydrocarbons | -20/+60 degrees |
| Maximum operating pressure at 20 degrees with liquid hydrocarbons | 1.2 MPa (12 bar) |
Materials and Construction
| Valve | Chrome-plated brass |
|---|---|
| Drive rod | Double O-ring seal |
| Nut | With anti-corrosion coating, warranty seal and hologram |
| Handle | Painted aluminum butterfly |
| Color | Red |
Data sheet
- Type: Ball valves
- Connection: F/F
- System: Water
- Connections: 1 inch
