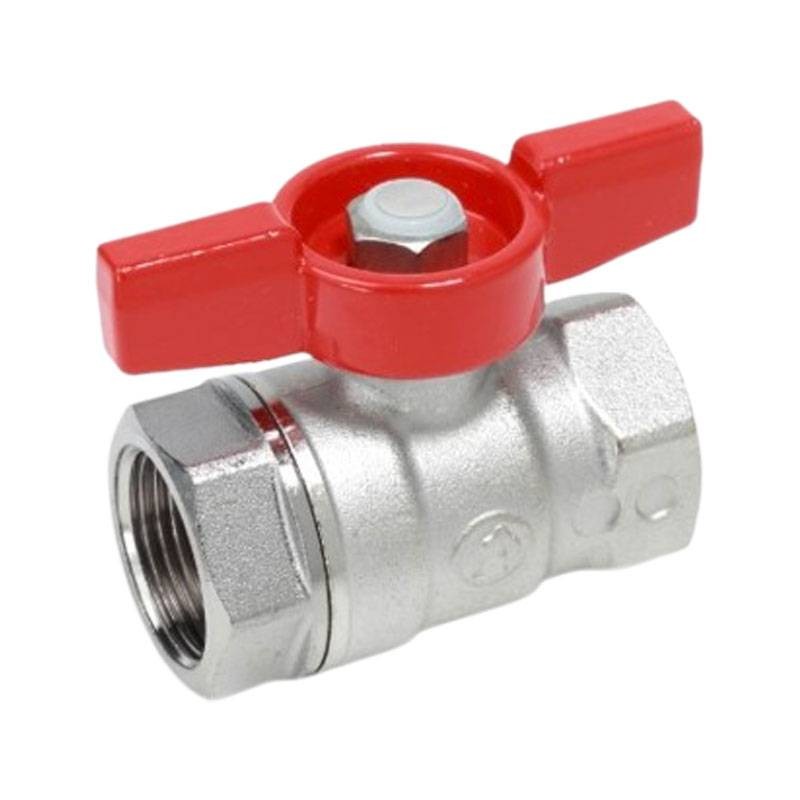

Giacomini ball valve with red butterfly handle F/F 1/2 R251X003

Giacomini
Giacomini
GIM R251X003 8009902001148

Giacomini Ball Valve with Red Butterfly Handle is designed for reliability and durability in plumbing, heating, cooling and for use with liquid hydrocarbons and nonhazardous gases, ideal for professional and industrial applications, with the following features:

  • Connections: Female/Female 1/2 inch

  • Nominal diameter: 14 mm

  • Material: Chrome-plated brass with control rod equipped with double O-ring seal

  • Butterfly handle:Red paintedaluminumfor firm grip and sturdy design

  • Standard passage: Suitable for multiple applications

  • Protection: Nut with anti-corrosion coating, warranty seal and hologram

Do you have questions about this product or did you not find what you were looking for? Ask us!
Giacomini ball valve with red butterfly handle F/F 1/2 R251X003
€3.90
€3.90

€3.90
Tax included
Calculate shipping cost
Items Available: 126
Further availability of the manufacturer
€3.90

Buy it within and receive it from Wednesday, 24 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Giacomini ball valve with red butterfly handle F/F 1/2

Reliability and Safety

The valve is designed with high-quality materials and a double O-ring seal, ensuring durable performance and resistance to demanding operating conditions.

Application Versatility

Ideal for plumbing, heating, cooling and for use with liquid hydrocarbons and nonhazardous gases, it offers a wide range of applications.

Design and Protection

Equipped with an ergonomic butterfly handle and a corrosion-resistant coated nut, the valve ensures long service life and ease of use.

General Features

Connections Female/Female 1/2 inch
Nominal diameter 14 mm
Kv 10,2


Operating Temperature

Minimum operating temperature -20 degrees with 50% glycol solutions
Maximum operating temperature with dry saturated steam 185 degrees with 1.05 MPa (10.5 bar)
Temperature range with liquid hydrocarbons -20/+60 degrees
Maximum operating pressure at 20 degrees with liquid hydrocarbons 1.2 MPa (12 bar)


Materials and Construction

Valve Chrome-plated brass
Drive rod Double O-ring seal
Nut With anti-corrosion coating, warranty seal and hologram
Handle Painted aluminum butterfly
Color Red

There are no reviews

Data sheet

Type:
Ball valves
Connection:
F/F
System:
Water
Connections:
1/2 inches
