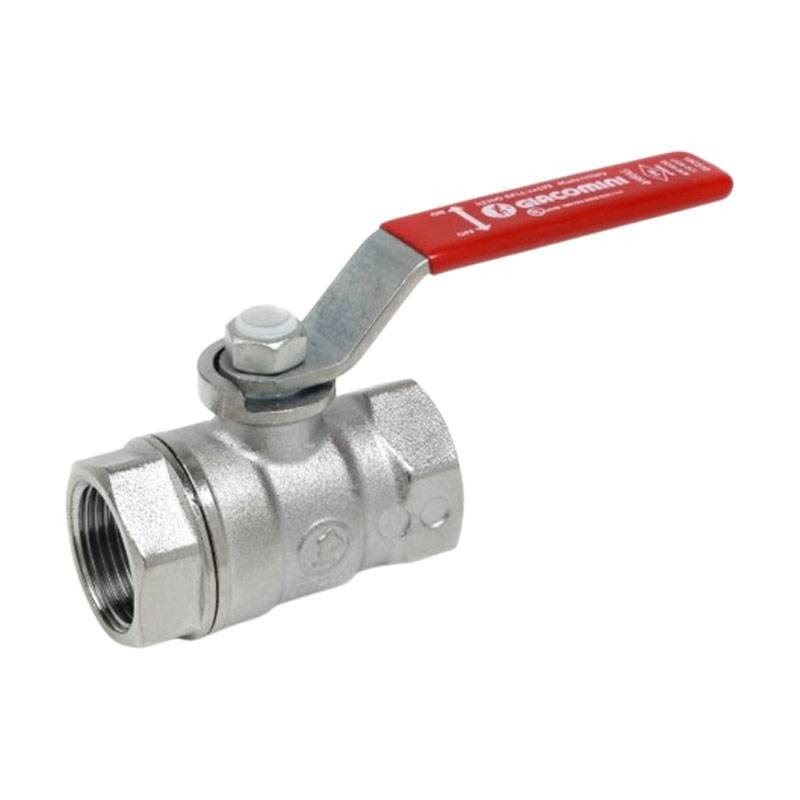

Giacomini ball valve F/F 1 inch 1/2 red lever handle R250X007
GIM R250X007
8009902000196
Giacomini Ball Valve with Red Lever Handle is a versatile and reliable solution for heating, cooling systems and uses with fluids such as nonhazardous gases and liquid hydrocarbons. It provides optimum performance and long service life, with the following features:
-
Connections: Female/Female 1 inch 1/2
-
Standard passage: For efficient flow
-
Lever handle: Steel with red PVC coating
-
Body material: Corrosion-resistant chrome-plated brass
-
Seal: Control rod with double O-ring
€19.93
Items Available: 150
: 74
Giacomini ball valve F/F 1 inch 1/2 red lever handle
Rugged and durable design
The valve is made of chrome-plated brass, a material that ensures high corrosion resistance and reliability under various operating conditions. The control rod with double O-ring ensures an optimal seal, reducing the risk of leakage over time.
Red lever handle for convenient use
The steel lever handle, coated with red PVC, provides a secure and comfortable grip. Anti-corrosion treatment ensures durability even in wet or aggressive environments.
Compatibility and applications
This valve is suitable for:
- Heating and cooling systems: For controlling the flow of water
- Non-hazardous gases: Domestic and industrial applications
- Liquid hydrocarbons: With a temperature range of -20 to +60 degrees
Technical Specifications
| Type | F/F ball valve |
|---|---|
| Connection sizes | 1 inch 1/2 |
| Body Material | Chrome plated brass |
| Handle | Steel with red PVC coating |
| Passage | Standard |
| Minimum operating temperature | -20 degrees |
| Maximum operating temperature | 185 degrees (dry saturated steam, 1.05 MPa) |
| Liquid hydrocarbon temperature range | -20/+60 degrees |
| Maximum pressure (20 degrees) | 1.2 MPa (12 bar) |

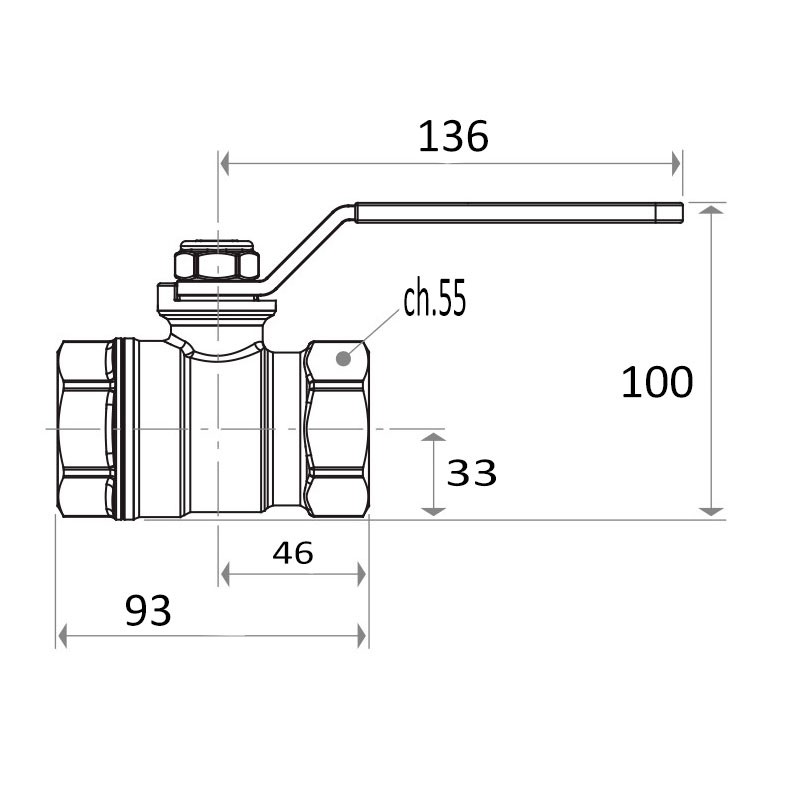

| Dimensions | 93x46x100x33x136xch.55 |
There are no reviews
Data sheet
- Type: Ball valves
- Connection: F/F
- System: Water
- Connections: 1-1/2 inches
