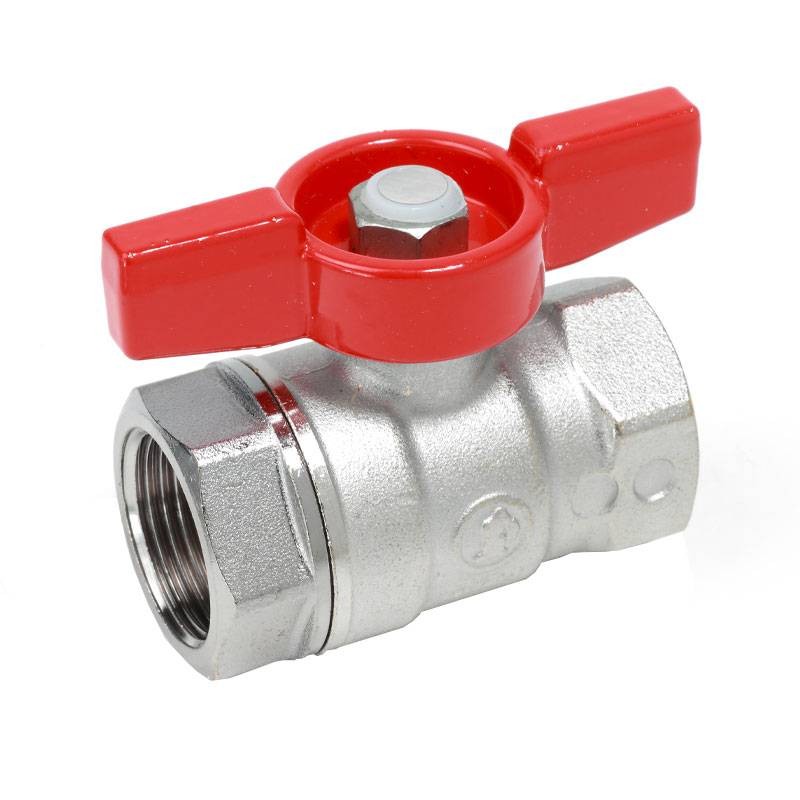

Giacomini ball valve F/F 3/8 red butterfly handle R251X002
GIM R251X002
8009902001124
Giacomini ball valve with the following features:
- Connection: Female/Female
- Fittings: 3/8
- Chrome-plated brass valve
- Control rod with double O-ring seal
- Nut with anti-corrosion coating, warranty seal and hologram
- Red painted aluminum butterfly handle
For plumbing and liquid hydrocarbon systems.
€3.49
Items Available: 50
: 22
Characteristics:
- Minimum operating temperature: -20 °C with 50 % glycol solutions.
- Maximum operating temperature with dry saturated steam: 185 °C with 1.05 MPa (10.5 bar)
- Maximum operating pressure at 20 °C with water and nonhazardous gases: 4.2 MPa (42 bar) for 1/4, 3/8, 1/2, 3/4 3.5 MPa (35 bar) for 1, 1-1/4
- Temperature range with liquid hydrocarbons*: -20÷60 °C
- Maximum working pressure at 20 °C with liquid hydrocarbons*: 1.2 MPa (12 bar)
There are no reviews
Data sheet
- Type: Ball valves
- Connection: F/F
- System: Water
- Connections: 3/8 inches
