Atusa mini butterfly ball valve F/F 1/2 blue brass VS101103
EUC VS101103
8432388005247

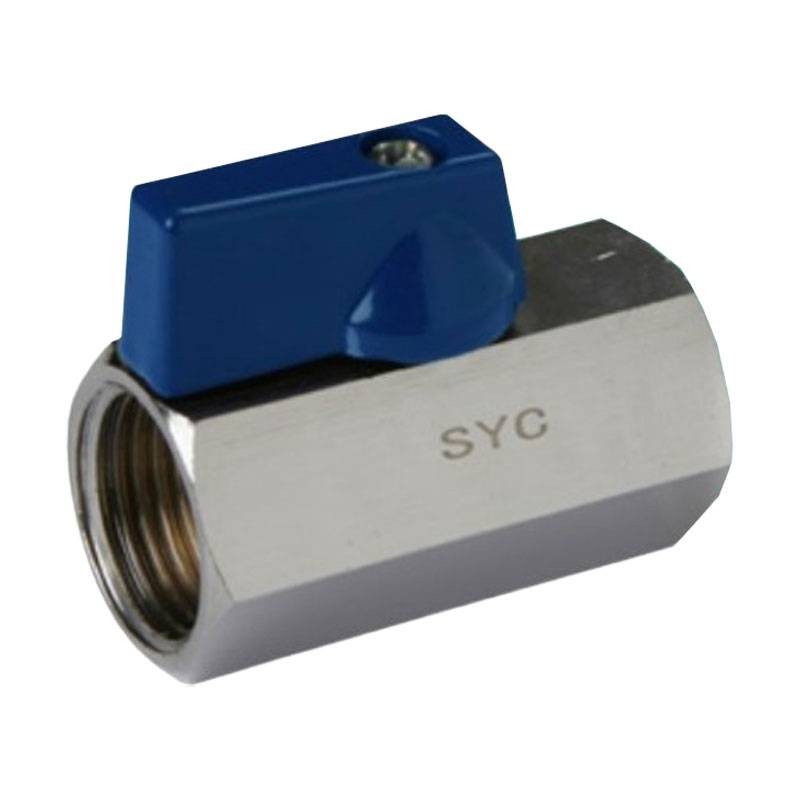

Atusa Mini Butterfly Ball Valve, a compact and efficient solution for regulating water and air flows in plumbing and distribution systems, with the following features:
-
Connection: Female/Female 1/2 inch
-
Internal diameter: 10 mm
-
Body material: nickel-plated brass
-
Handle: Blue aluminum butterfly
-
Internal spring: Stainless steel
-
Maximum pressure: 16 bar
-

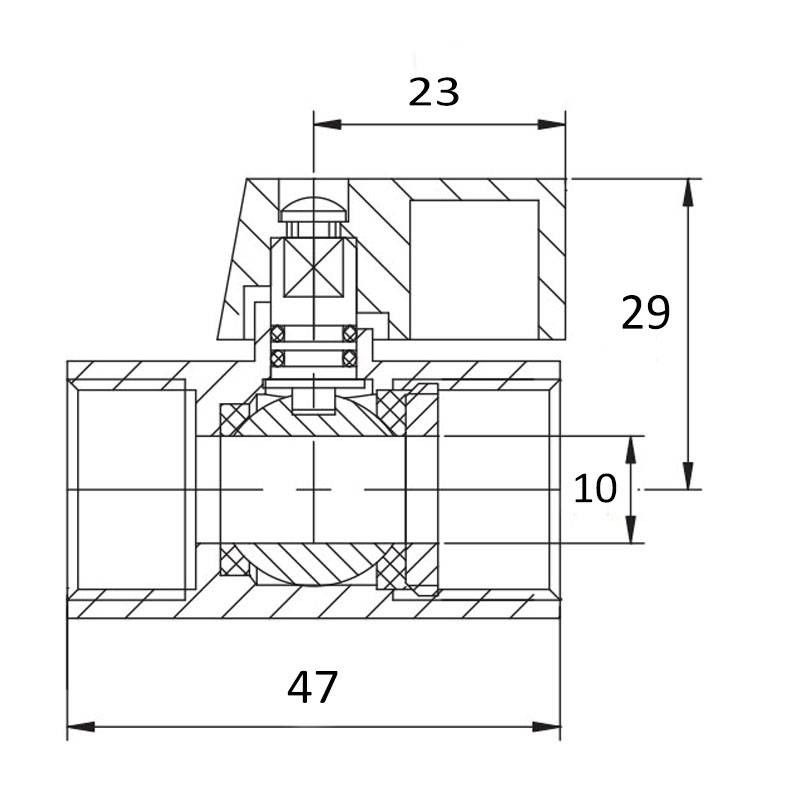

Dimensions: 47x23x29 mm
€3.94
Out of stock
Incoming
Atusa compact ball valve for hydraulic and air systems
The 1/2-inch Atusa F/F mini butterfly ball valve is an effective and robust solution for flow control in hydraulic and air systems. Its compact design is particularly suitable for installations in small spaces, while offering reliability and durability, even in harsh or humid environments.
Durable materials and intuitive control
The valve body is made of chrome-plated brass, a material that ensures corrosion resistance and long life. The control handle is made of blue-painted aluminum, with a butterfly shape that provides excellent grip and quick maneuverability. The 10-mm internal passage allows good flow while keeping the overall dimensions small.
Typical applications
-
Residential and industrial plumbing systems
-
Potable water distribution networks
-
Domestic hot water systems
-
Compressed air systems
-
Irrigation systems
Technical Specifications Atusa Ball Valve
| Parameter | Value |
|---|---|
| Connection | Female/Female 1/2 inch |
| Inner passage diameter | 10 mm |
| Maximum pressure | 16 bar |
| Body material | Chrome plated brass |
| Handle material | Painted aluminum (blue) |
| Control type | Butterfly lever |
| Color | Blue |
| Dimensions | 47x23x29 mm |
| Usage | Water, compressed air |
There are no reviews
Data sheet
- Type: Ball valves
- Connection: F/F
- System: Water
- Connections: 1/2 inches
