Vaillant atmoMAG mini 11 Litre LPG/Propane Gas Water Heater 0010022571
VLL 0010022571
6922168208378

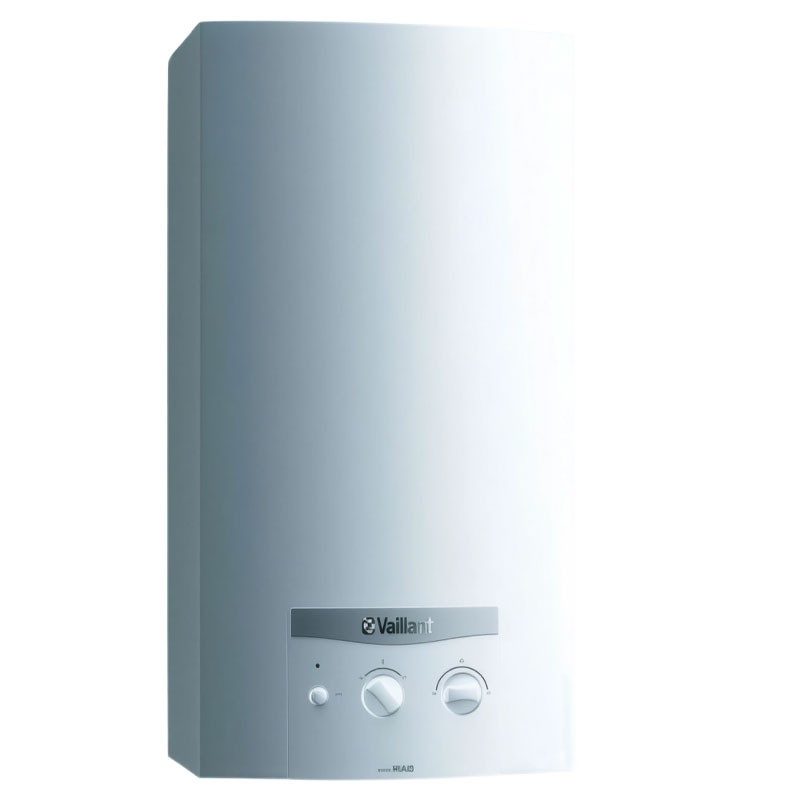

Vaillant atmoMAG mini 114/1 I gas-fired water heater, open chamber, natural draft, instantaneous with battery ignition:
- Fuel type: LPG/Propane
- Power min-max 7.6-18.1 kW
- Withdrawal capacity (DT 25K) 11
- Energy Class Erp A
- Battery ignition type
- Combustion type: Open chamber
- Positioning: Wall-mounted
- Usage: Domestic hot water
- Flue gas connection diameter 110
- Gas-hydraulic connections 1/2 - G1/2"

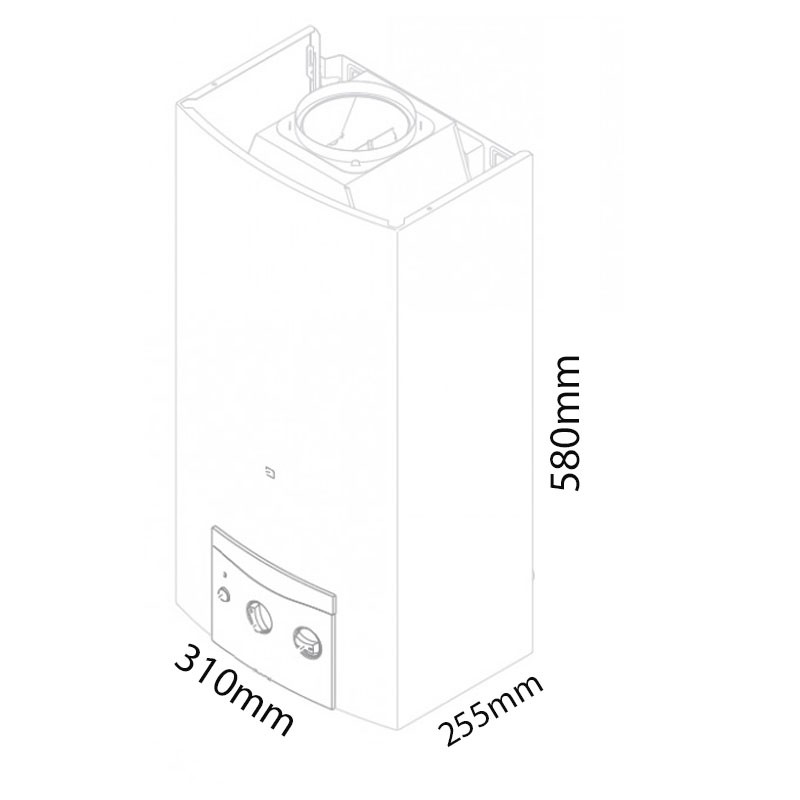

- Dimensions: Height 580 x Width 310 x Depth 255 mm
In the mini version, safety and functionality remain unchanged, and the small size becomes a reason for choice in some living situations.
€303.05
€303.05
Tax included
Tax included
Items Available: 11
: 10
Water heaters of the same series
Frequently bought together
AtmoMAG I are natural draft water heaters with low NOx emissions (class 6) and electronic ignition powered by batteries.
Continuous flame modulation ensures low gas consumption, proportional to the user's actual needs.
Ionization flame detection and a control system for interrupting the gas flow ensure maximum operating safety in case of failure of ignition or sudden shutdown.
Simplicity of sanitary comfort management is one of the established features of atmoMAG.
Advantages:
- Small dimensions
- Exchanger with Supral protection
- Battery-operated ignition
- Power selectable on 10 levels
- Ionization flame control
- Ease of operation
- Flexible connections provided
- Continuous flame modulation
- Compact dimensions
- Low NOx emissions (class 6)
Features:
- Flue gas pipe connection diameter 110 mm
- Minimum flue gas pipe length 0.5 meters
- Gas connection diameter 1/2? conical
- Domestic water connection diameter (inlet) G1/2"
- Domestic water connection diameter (outlet) G1/2"
- Net weight 9.6 kg
- Gas connection value for maximum heat output1.69 kg/h
- Gas connection pressure 2.5 4.5 kPa (25.0 45.0 mbar)
- Number of burner nozzles 24
- Burner nozzle 0.50 mm
- Burner pressure 31.7 mbar (0.0317 bar)
- Air requirement for combustion with max heat output 38.3 m³/h
- Air requirement for combustion at min heat output 28.9 m³/h
- CO content at max heat output 7.3 %.
- CO content at min heat output 3.3 %.
- Flue gas mass flow rate max 4.13 g/s
- Flue gas mass flow rate min 1.1 g/s
There are no reviews
Data sheet
- Type: Water heaters
- Model: LPG/Propane
- Installation: Horizontal
- Capacity: 11 Liters
- Energy class: A
- Series: AtmoMAG Mini
