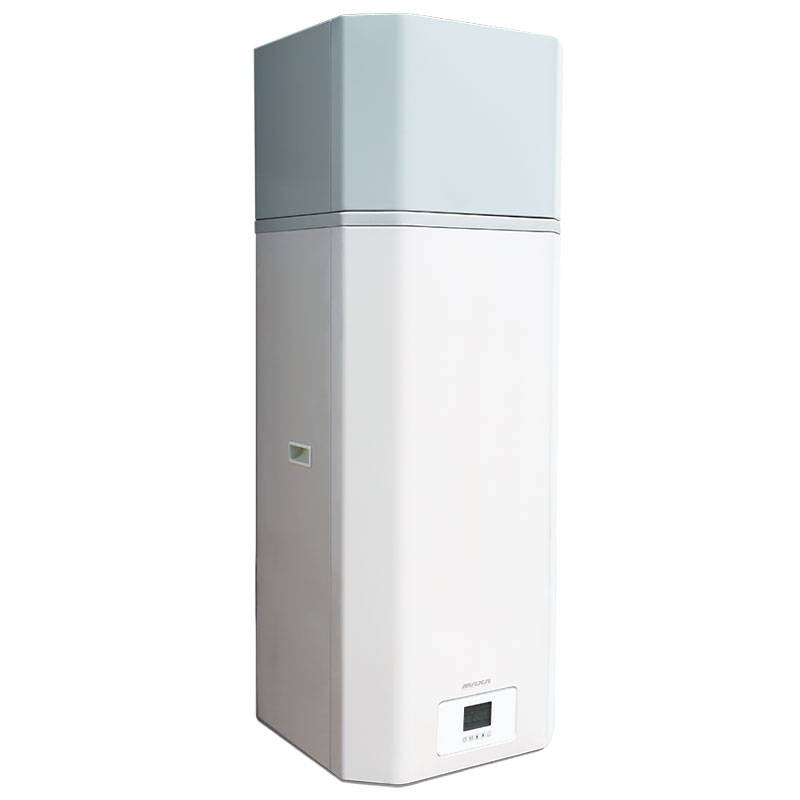

Maxa Calido 110 hanging heat pump water heater 000425
TIX 000425
Maxa Advantix Calido 110 heat pump water heater, 110 Liters, class A, R134a gas, air temperature from 5°C to+43°C, compatible with thermal accounts, vacation timer, anti-legionella function, supplementary heating up to 75°C.
-
110L tank capacity, energy class A, load profile M
-
R134a with electronic expansion, enables superior performance at low temperatures
-
Built-in functions: timer, temperature set, vacation, anti-legionella, green mode
-
Electric heater 1.5kW to bring water from 62°C to 75°C
-
S235JR steel tank with double vitrification and magnesium anode, externally wound condenser
-
LCD touch display for management and diagnostics, quiet due to centrifugal fan
-
Suitable to replace traditional water heaters, optimized for thermal account and integrable with photovoltaic system
Accessories included in the package
-
Bracket for wall mounting
-
Fixing screws and dowels
-
Spacers for wall support
-
Dielectric joints
€1,098.00
Items Available: 4
: 2
Maxa Advantix heat pump water heater: Small size and thoughtful aesthetics
Calido 110 is a heat pump water heater with air source for wall or floor application. Perfect for replacing electric water heaters on existing systems, thanks in part to the hot water temperature set, timer and vacation setting, and anti-legionella functions, which can also be managed by Wi-Fi connection or App. Built-in electric heating element allows water to be heated from 62°C to 75°C. Excellent yields even with outdoor temperatures ranging from -5°C to +43°C thanks in part to the electronic expansion valve, which improves performance and makes it eligible for the heat bill.
Energy efficiency and savings
Thanks to the heat pump and R134a refrigerant, the Calido 110 can achieve 34 times higher performance than conventional electric systems, with typical COP of about 3.01 (air+20°C)
Robust and reliable construction
Vitrified tank from steel with anodes and external condenser reduce corrosion and scale. The electrical resistance is protected by an 85°C thermostat to ensure safety and longevity.

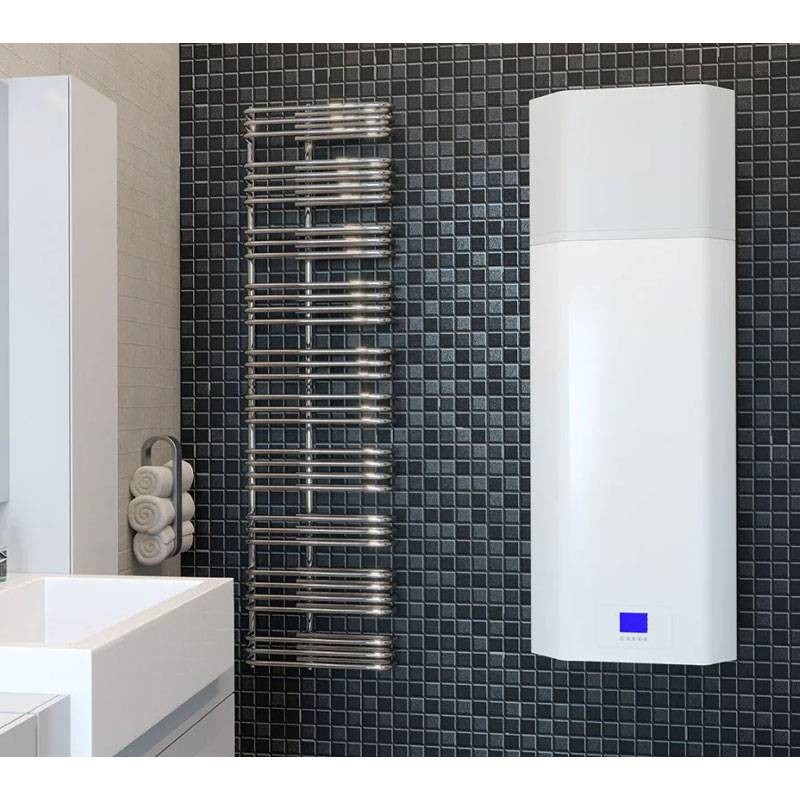

Flexible installation
Suitable for both wall (bracket included) and floor mounting. LCD display allows easy selection of operating modes and supports integration with photovoltaic systems via external contact.
Energy class A
Energy saving was considered as a fundamental aspect in the study and design phase of the units. The low power consumption combined with the high efficiency of the compressor-exchanger pair and the use of environmentally friendly refrigerant gas ensure that the units belong to energy class A.
Domestic hot water
The installation of an additional exchanger operating as a condenser in parallel with the air-cooled condensing coil allows the production of domestic hot water regardless of the operating mode of the unit.
Technical specifications of the Calido 110 water heater
| Feature | Detail |
|---|---|
| Energy class | A |
| Declared load profile | M |
| COPDHW (ERP) | 3.01 |
| Heating time | 6:53 h:min |
| Energy input in heating | 1.58 kWh |
| Annual electricity consumption (temperate climate) | 462 kWh/year |
| Air flow rate | 300 m³/h |
| Static pressure | 60 Pa |
| Rated electrical power | 236 W
+1500 |
| Rated electrical power (Resistance) | 1500 W |
| Rated current | 1.14 A
+6.5 |
| Maximum current | 1.81 A
+6.5 |
| Power supply | 220-240~/1/50 V/Ph/Hz |
| Maximum output temperature without resistor | 60 °C |
| Refrigerant Type / Charge / GWP | R134a / 650 g / 1430 |
| CO2 equivalent | 0.93 t |
| Max refrigerant pressure (suction / delivery) | 0.2 / 25 Bar |
| Safety valve calibration | 8 Bar |
| Hydraulic connections | G 1/2 inch Male |
| Nominal tank volume | 110 L |
| Internal tank treatment | Glazed |
| Sound power | 48.5 dB(A) |
| Net weight | 62 kg |
| Gross weight (with filled tank) | 172 kg |
| Net size (W x H x D) | 500 x 1406 x 520 mm |
| Packing size (W x H x D) | 550 x 1460 x 550 mm |
| Duct diameter | 125 mm |
| Degree of protection | IPX1 |
| Operating temperature range | -5 ~ 43 °C |
There are no reviews
Data sheet
- Type: Water heaters
- Model: Heat Pump
- Installation: Vertical
- Capacity: 110 Liters
- Energy class: A
- Series: Calido
