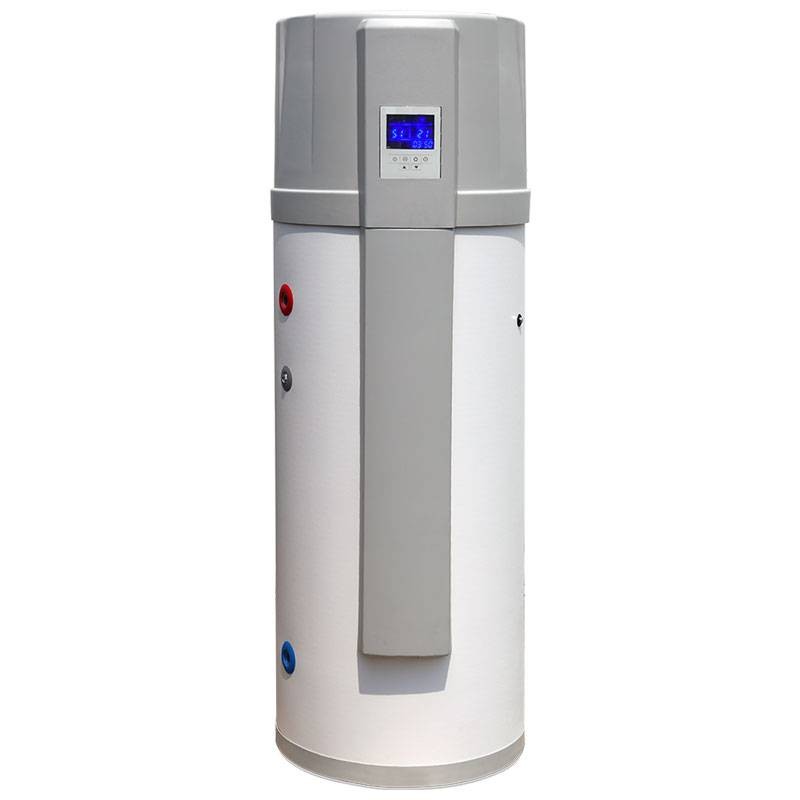

Maxa Calido S200 heat pump water heater 000415
TIX 000415
Maxa Calido S200 heat pump water heater with solar coil, 200 L, class A, integrated solar panel coil, R134a gas, operates from 10°C to +43°C: green comfort and savings.
-
Capacity 200 L, class A, load profile L
-
Air-water heat pump with R134a gas, range 10°C ÷+43°C
-
Auxiliary coil for solar thermal integration
-
Efficiency 3-4 times higher than traditional bases
-
Ideal for domestic, small business and solar integration
-
Low consumption, high sustainability, constant energy saving
€1,967.25
Out of stock
Incoming
Water heaters of the same series
Maxa Calido S200 water heater with heat pump technology

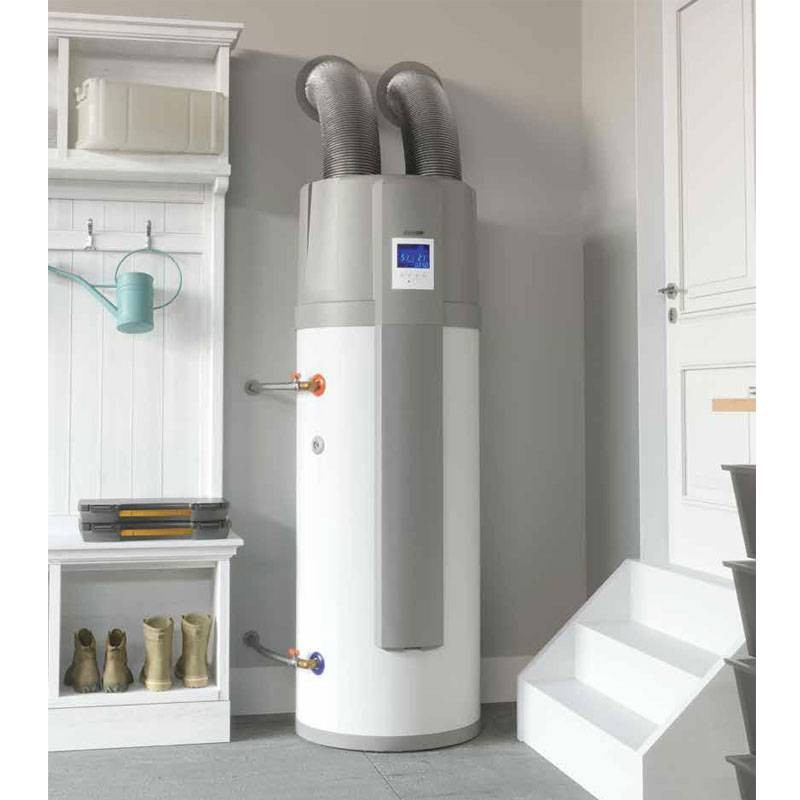

The domestic hot water heat pump is one of the most economical systems for heating water for domestic or small commercial use. Using renewable energy from the air, the unit is highly efficient with low operating costs. Its efficiency can be up to 3~4 times higher than traditional gas-fired boilers or electric heaters. Calido can be installed in a technical room, garage or laundry room for example. Its efficiency increases if the room has a fair amount of heat available. While heating the storage tank, Calido produces cool, dehumidified air that can be used for summer cooling/dehumidification of a room.
Seamless integration with solar

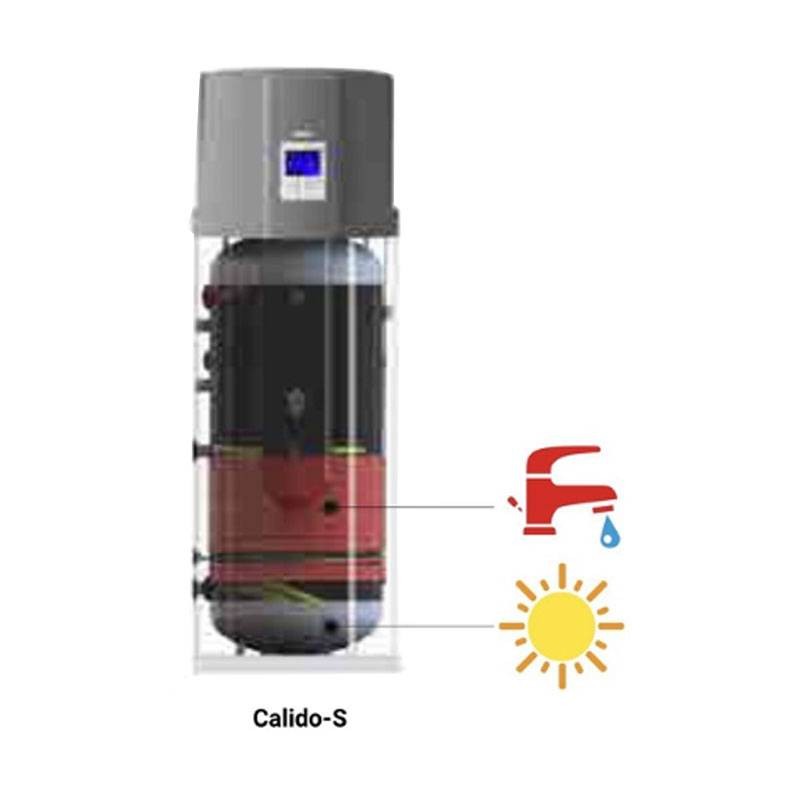

The Maxa Calido S200 has an integrated coil that allows direct use with solar panels: it optimizes the renewable input and maximizes savings and efficiency, minimizing the use of the heat pump.
High energy efficiency
Thanks to the air-to-air heat pump and R134a refrigerant, the CalidoS200 achieves 3-4× higher efficiency than conventional resistance or gas systems, for economical and sustainable water heating.
Comfort and green technology
Simply select the water temperature on the control panel: the system automatically manages the most convenient heat source and chooses between solar, heat pump and supplementary heater.
Installation and applications
Compatible with domestic systems or light establishments. Also ideal where there is a solar system: simply connect the panels to the coil for a modern, efficient and compact hybrid system.
Technical specifications of the Maxa Calido S200 water heater
| Feature | Detail |
|---|---|
| Energy class | A |
| Declared load profile | L |
| COP ERP | 2.64 |
| Heating time | 07:48 h:min |
| Annual electricity consumption (temperate climate) | 1012 kWh/year |
| Air flow rate (nominal) | 350 m³/h |
| Static pressure | 60 Pa |
| Rated electrical power | 2060 W |
| Rated electrical power (heating element) | 1200 W |
| Rated current | 2.21 A (+5.2) |
| Maximum current | 3.2 A (+5.2) |
| Power supply | 220-240 V / 1Ph+N+PE / 50 Hz |
| Maximum output temperature without resistor | 65 °C |
| Refrigerant Type / Charge / GWP | R134a / 920 g / 1430 |
| Tons of CO? equivalents | 1.32 t |
| Max refrigerant pressure (suction/discharge) | 0.2 / 25 Bar |
| Hydraulic connections | G 1" F |
| Nominal tank volume | 220 L |
| Internal tank treatment | Double-layer glazing |
| Solar exchange coil surface | 1.2 m² |
| Sound power | 58.2 dB(A) |
| Net weight | 106.5 kg |
| Gross weight (with filled tank) | 392.5 kg |
| Net size (Ø x H) | Ø 654 x 1638 mm |
| Duct diameter | Ø160 mm |
| Degree of protection | IPX1 |
| Operating temperature range | -10°C TO +43°C |
There are no reviews
Data sheet
- Type: Water heaters
- Model: Heat Pump
- Installation: Vertical
- Capacity: 200 Liters
- Energy class: A
- Series: Calido
