Overview:

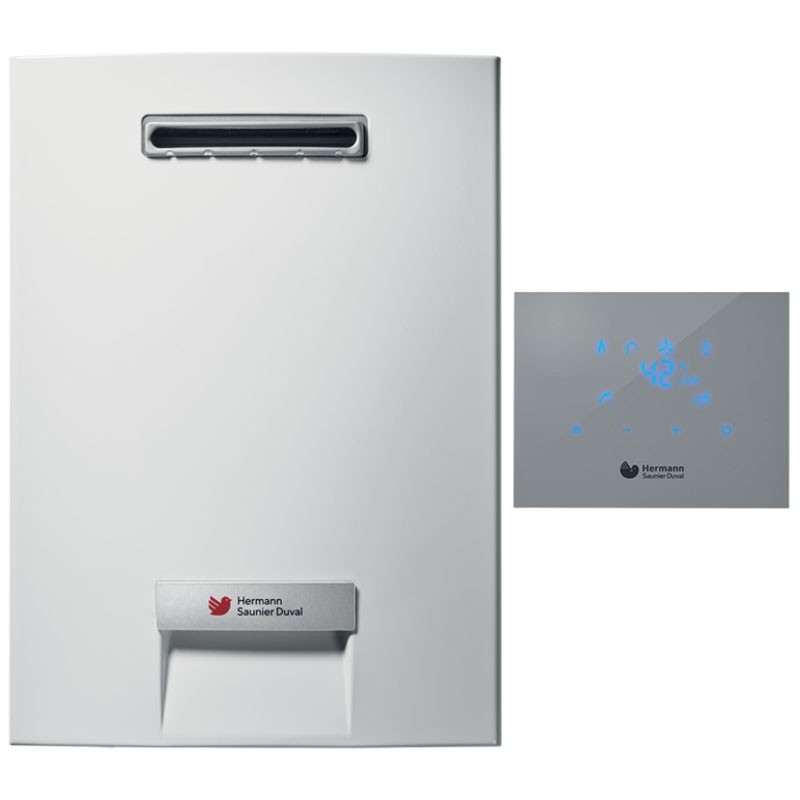

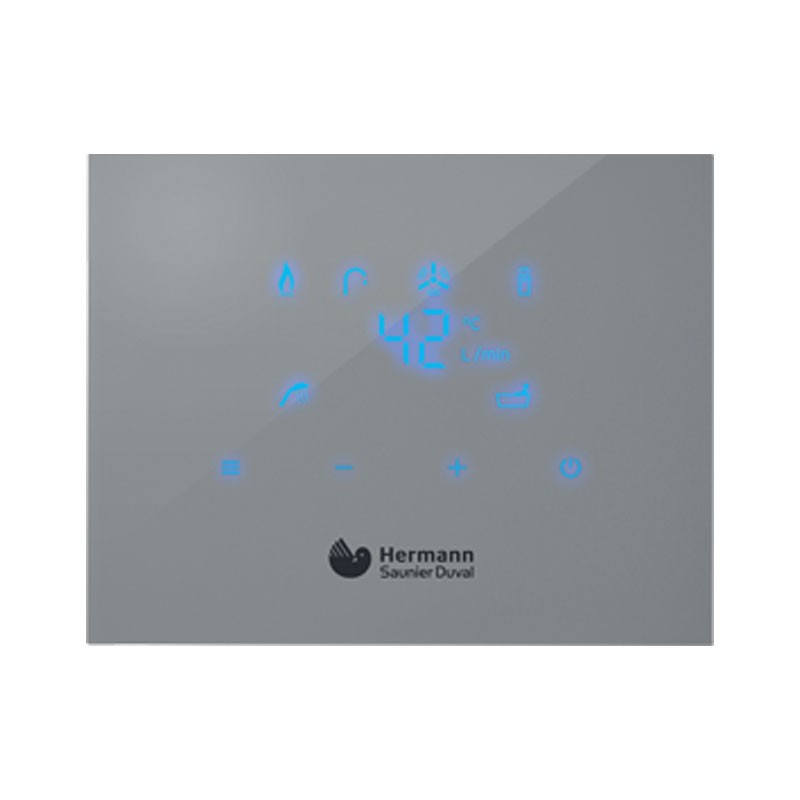

Featuring a modern design and extremely compact volume (only 18cm deep), gas water heaters in the OpaliaExternal F range have frost protection down to -25°C and IPX5D approval. The water heater is operated inside the home through a touch-screen control device supplied with a 10-meter cable



Gas-fired water heaters in the OpaliaExternal F range are easy to install outdoors and control from inside via a remote control device with a 10-meter cable supplied. The Opalia F model is available in 12- and 15-liter sealed-chamber versions, all of which have electronic ignition and have Natural Gas and LPG models.



A new burner makes it possible to reduce NOx emissions to a minimum and achieve Class 6, as required by the ErP directive. Modern design and extremely compact size (18cm deep): the water heaters can be easily installed outdoors having IPX5D approval and frost protection down to -25°C included.



Simple to install:

• They do not require connections to the chimney since they have a facade drain already integrated in the front panel (Type A approval).



Maximum safety:

• Safety thermostat trips in case of domestic hot water overtemperature; ionization flame control stops gas supply in case of flame failure at the burner.



Electronic control:

• It is possible to optimally adapt the operation of the appliance to the conditions of use and hot water temperature, ensuring maximum sanitary comfort and optimizing gas consumption.



Installation is extremely quick and easy thanks to the integrated air intake at the front panel and the ductless exhaust, as no connection to the chimney is therefore required. Maximum safety is ensured by the protection device installed on board that intervenes in case of domestic hot water overtemperature; the ionization flame control blocks gas supply in case of flame failure at the burner.



Features:

• Rated min/max output 5.6 / 29.1 kW
• Capacity at the firebox kW 29.1
• Continuous flow rate (T = 25K) l/min 15
• Minimum flow rate l/min 2.5
• DHW temperature min/max °C 38 / 60
• Supply pressure mbar 20
• Antifreeze protection °C -25
• Electrical protection IPX 5D
• Sound power dB 71
• Weight kg 17.7
• Type GAS II2H3+
