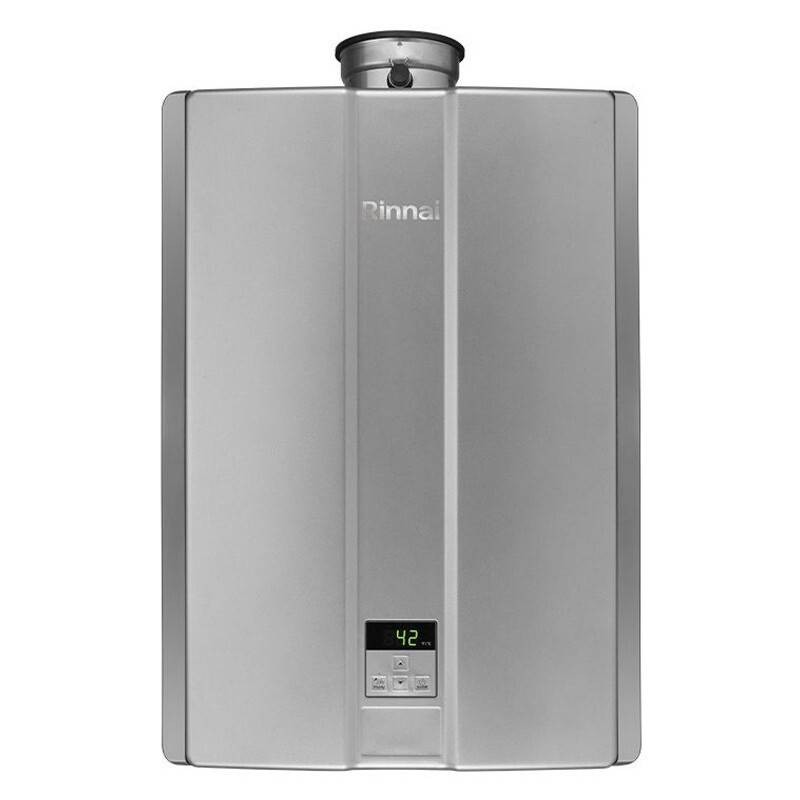

Infinity series Sensei 32 liters/min condensing unit is an instantaneous type domestic hot water producer for indoor installation.


Rinnai patented R-Evolution heat exchanger, new metal fiber burner, zero-government valve, full condensation. Anti-corrosion enameled galvanized steel shroud and antifreeze included as standard down to -20°C.



Like all condensing models, N32i is compatible with Rinnai Modus systems for easy installation of multiple appliances in medium and large professional systems. For domestic use, with free first ignition by an Authorized Technician. Energy efficiency class A.



Advantages:

• Can be combined with solar panels
• Can be combined with recirculation
• Can be combined with storage tank max lt 1000
• Max 3 additional remote controls
• Can be combined in cascade
• Modus
• Standard antifreeze down to -20°C
• Condensation
• Eco-friendly



Features:

• Annual consumption of electricity (kWh/annum) and fuel (GJ/annum) 22-22
• Indoor noise level (dB) 59
• Indoor Installation / Villa - Apartment with multifunction shower, whirlpool / Professional Installation
• Appliance type Condensing - Forced flow - Type C
• Min/Max methane heat flow rate (kW) 4/52.1
• Water flow rate t 25°C Min/Max (l/min) 1.5/32 (37 l/min at T = 20°C)
• Max operating temperature (°C) 85
• Min activation pressure (bar) 0.1
• Min/Max operating pressure rating (bar) 3 - 10
• Normal / stand-by / antifreeze power consumption (W) 75 / 3 / 150

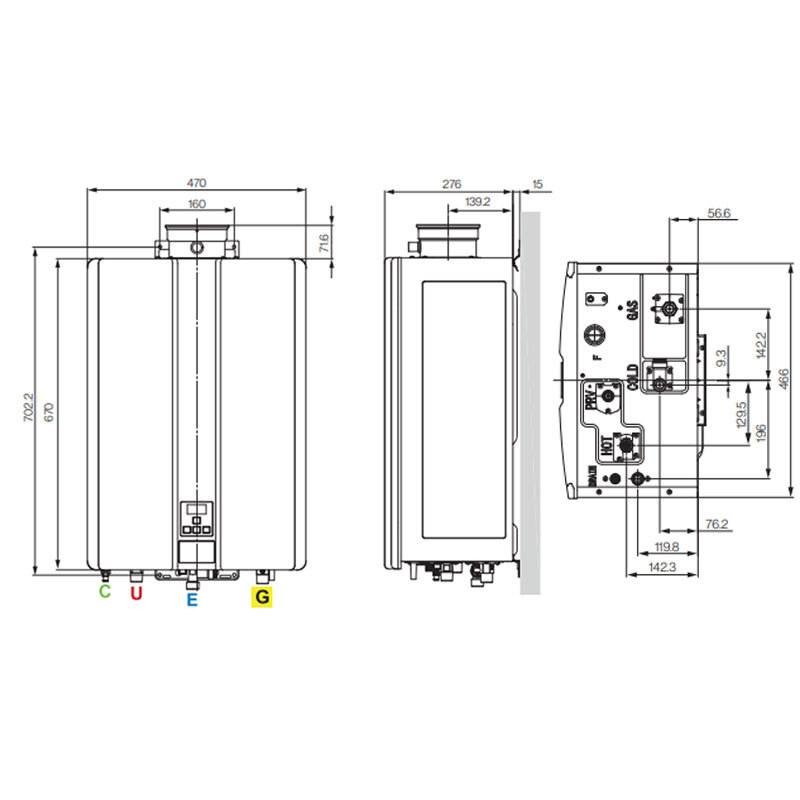

• Dimensions: Width 470 mm - Depth 276 mm - Height 670 mm
• Weight 29 kg
• Distance between center distances of fixing brackets 702.2mm
• Distance between fixing screws 160mm
• Distance between flue centerlines 139.2mm



Fittings:

• Water inlet ¾
• Water outlet ¾
• Gas ¾
• Condensate drain ½
