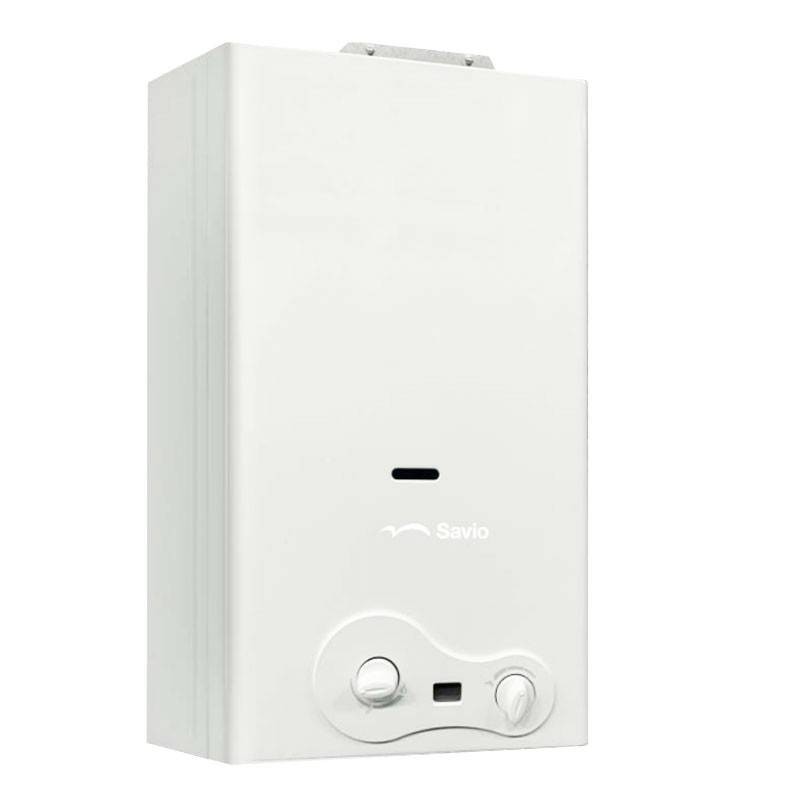

Savio LASER 14A LPG water heater outdoor 10104.0001.0/0
Savio LASER 14A LPG outdoor instantaneous water heater, with the following characteristics:
- Rated output (Pn) kW - kcal/h: 24.3 - 20,900
- Nominal heat output (Qn) kW - kcal/h: 27.2 - 23,390
- Min useful output (Pm) (NG/LPG) kW - kcal/h: 9.7 - 8,340 / 12.3 - 10,580
- Min heat output (Qm) (NG/LPG) kW - kcal/h: 10.8 - 9,290 / 13.9 - 11,950
- P.C.I. (15° C 1013 mbar) MJ/m3: 34.02
- WI (15° C 1013 mbar) MJ/m3: 45.67
- Consumption: m3 /h 2.88
- Burner pressure: 11.20 mbar
- Declared load profile: L
- Indoor sound power level: dB(A) 62
- Energy efficiency class of water heating: A
- Energy efficiency of water heating: 75%
- Gas connection: 1/2 inch
Savio LASER 14A LPG water heater outdoor 10104.0001.0/0
Tax included
Water heaters of the same series
Frequently bought together
Laser A water heaters have low Nitrogen Oxide (Low NOx) emissions.
Modulating and equipped with gas economizer, they ensure high efficiency, sanitary comfort and low consumption Their small size, easy installation and maintenance make them an excellent choice for both residential and commercial installations.
Ease of use: The display instantly communicates the hot water temperature. Start-up is guaranteed even with minimal water pressure.
High Modulation: High Modulation is the ideal solution for those seeking a product capable of guaranteeing the stability of the hot water temperature delivered under all conditions. The excellence of performance is even more highlighted in conditions that are very demanding for an instantaneous gas water heater, such as low flow rates , where the technology ensures an excellent result in terms of water temperature control and management.

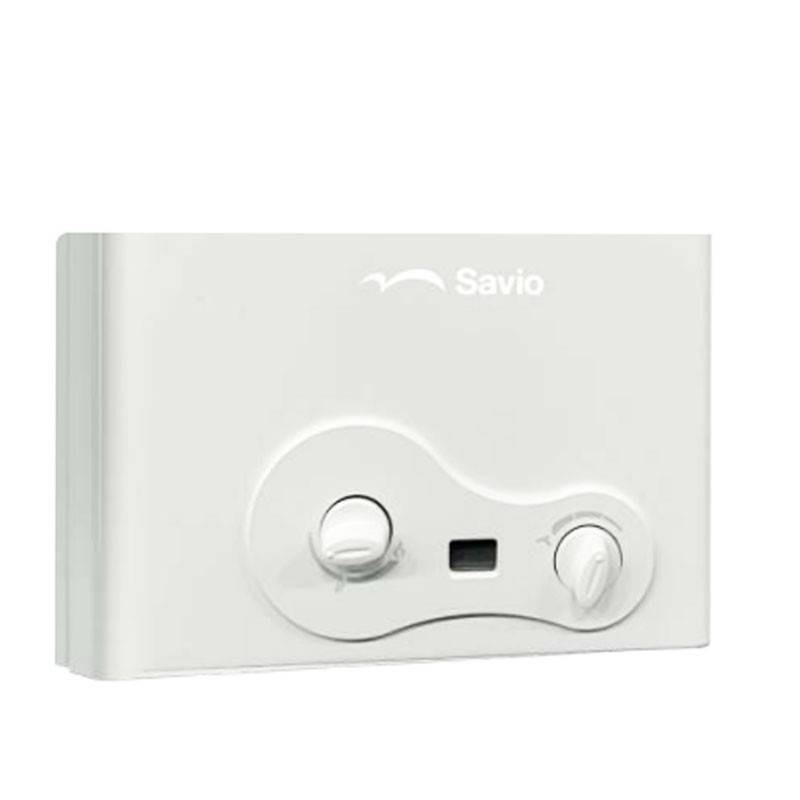

Set thetemperature with a touch: Thanks to the practical and intuitive control wheel, the water temperature can be set between 35°C and 65°C, allowing different needs to be met with ease of use.
Other technical features:
- Pilot flame nozzle diameter: 0.35mm
- No./diameter of main burner nozzle: 30x0.85 N./mm
- Flue mass flow rate (max-min): g/s 18.62/16.69
- Flue gas temperature (min-max): -158/+86°C
- NOx emission (EN26:2015 on HS): mg/kWh 34
- Withdrawal range liters/minute: min selector from 2.5 to 7
- Water temp elevation: approximate 50°C
- Minimum pressure: 0.2 bar
- Normal pressure: 2 bar
- Maximum pressure: 10 bar
- Water connection diameter: 1/2 inch
- Smoke exhaust pipe diameter: 130mm
- Dimensions in mm: Height - Width - Depth 650-363-247
- Product weight: 14.00 kg
- Annual fuel consumption (GJ): 12
- Annual electricity consumption (kWh): 0
- Emissions of nitrogen oxides G20 (mg/kWh): 34.
Data sheet
- Type:
- Water heaters
- Model:
- GPL
- Installation:
- Vertical
- Capacity:
- 14 Liters
- Energy class:
- A
- Series:
- Laser
