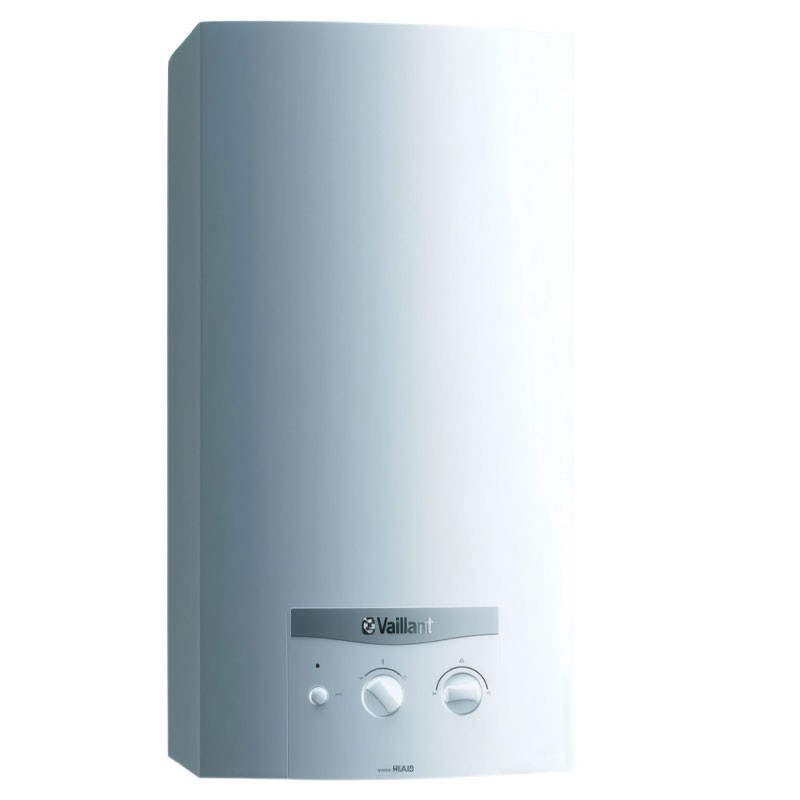

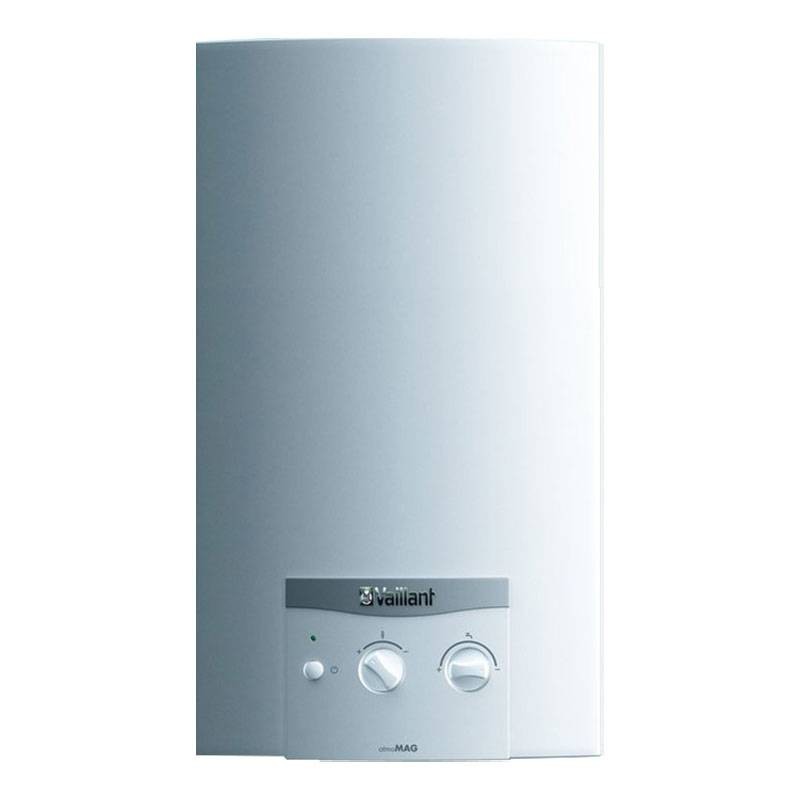

Vaillant atmoMAG mini 11 Liters Methane Gas Water Heater 0010022570
VLL 0010022570
6922168206848
Vaillant atmoMAG mini 114/1 I gas-fired water heater, open chamber, natural draft, instantaneous with battery ignition:
- Fuel type: Natural gas
- Min-max power 7.6-18.1 kW
- Withdrawal capacity (DT 25K) 11
- Energy Class Erp A
- Battery ignition type
- Combustion type: Open chamber
- Positioning: Wall-mounted
- Usage: Domestic hot water
- Flue gas connection diameter 110
- Gas-hydraulic connections 1/2 - G1/2"

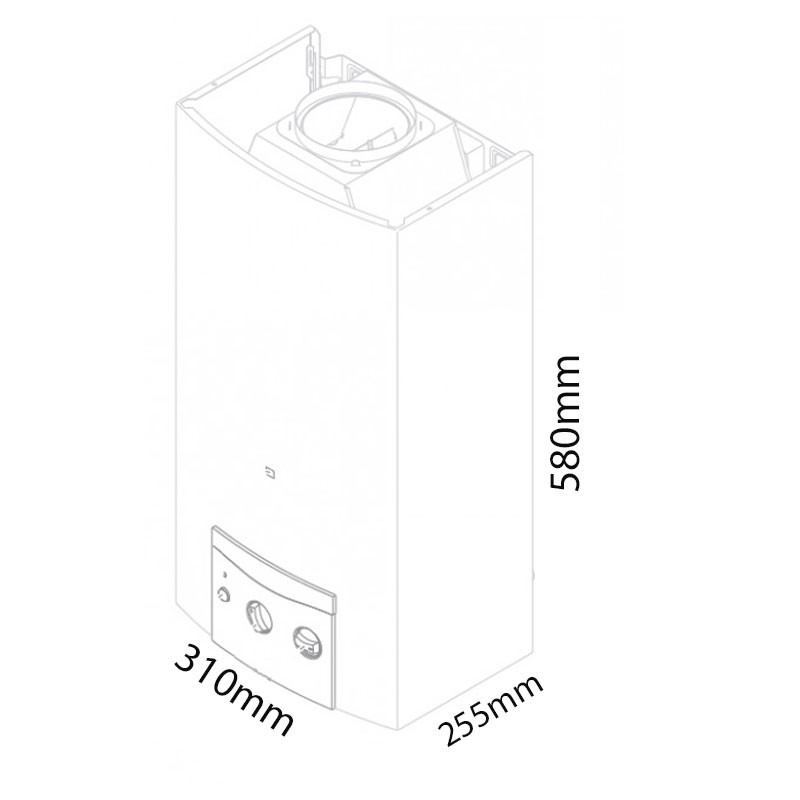

- Dimensions: Height 580 x Width 310 x Depth 255 mm
In the mini version, safety and functionality remain unchanged, and the small size becomes a reason for choice in some living situations.
€298.66
Items Available: 16
Water heaters of the same series
Frequently bought together
AtmoMAG I are natural draft water heaters with low NOx emissions (class 6) and electronic ignition powered by batteries.
Continuous flame modulation ensures low gas consumption, proportional to the user's actual needs.
Ionization flame detection and a control system for interrupting the gas flow ensure maximum operating safety in case of failure of ignition or sudden shutdown.
Simplicity of sanitary comfort management is one of the established features of atmoMAG.
Advantages:
- Small dimensions
- Exchanger with Supral protection
- Battery-operated ignition
- Power selectable on 10 levels
- Ionization flame control
- Ease of operation
- Flexible connections provided
- Continuous flame modulation
- Compact dimensions
- Low NOx emissions (class 6)
Features:
- Flue gas pipe connection diameter 110 mm
- Minimum flue gas pipe length 0.5 meters
- Gas connection diameter 1/2? conical
- Domestic water connection diameter (inlet) G1/2"
- Domestic water connection diameter (outlet) G1/2"
- Net weight 9.6 kg
- Gas connection value for maximum heat output 2.3 m³/h
- Gas connection pressure 1.7 2.5 kPa (17.0 25.0 mbar)
- Number of burner nozzles 24
- Burner nozzle 0.85 mm
- Burner pressure 11.2 mbar (0.0112 bar)
- Air requirement for combustion at max heat output 38.77 m³/h
- Air requirement for combustion with min heat output 30.62 m³/h
- CO content with max heat output 6.3 %.
- CO content with min heat output 2.7 %.
- Flue gas mass flow rate max 6.40 g/s
- Flue gas mass flow rate min 1.78 g/s
Tout a ete parfait. Efficace .bon marché. Facile à placer et déjà bien équipé
Il n'est pas encore installé vu le délai de livraison
Data sheet
- Type: Water heaters
- Model: Natural gas
- Installation: Horizontal
- Capacity: 11 Liters
- Energy class: A
- Series: AtmoMAG Mini
