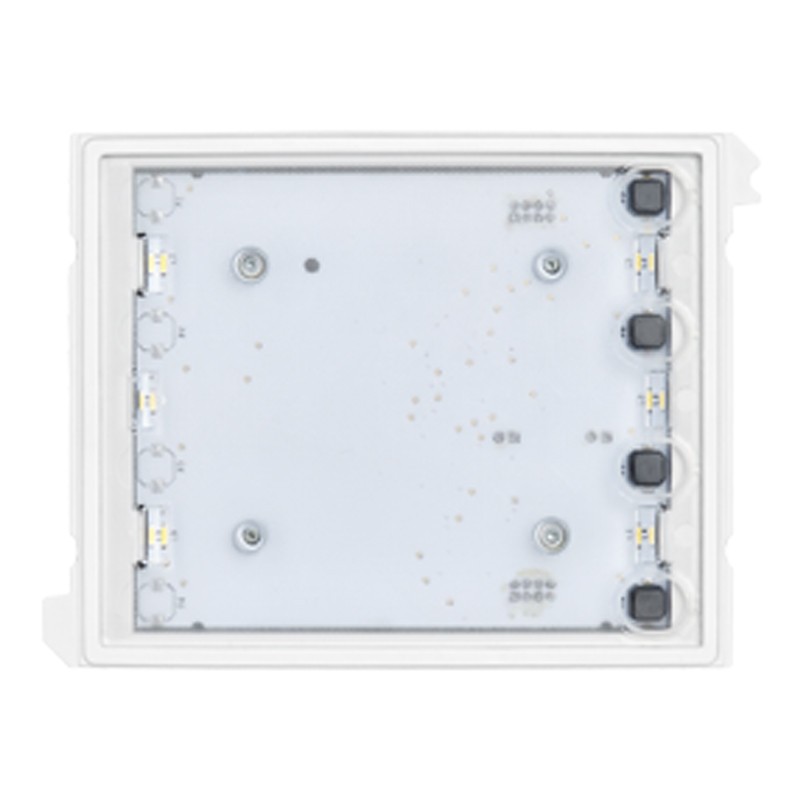

Urmet Alpha 4-Button Module for Video Intercom Systems 1168/4
UTD 1168/4
8021156064748
Urmet Alpha 4 Button Module, arranged for 4 call buttons on a single row, Connection with supplied flat cables to the audio or audio/video door station and to the other button modules, with the following features:
-
Number of buttons: 4 (on a single row)
-
Fixing: Press-fit on Alpha frames
-
Frame compatibility: 1168/6X - 1168/31X
-
Connection: Pre-wired flat cables (supplied with frames)
-
Faceplate compatibility: 1168/11, 1168/12, 1168/13, 1168/14
-
User interface: Physical call buttons
€61.68
Items Available: 567
: 86
Frequently bought together
Compatibility and ease of installation
The Urmet Alpha 4-button module is designed to provide a clear and immediate user interface in residential or commercial video door phone systems. Its compact design, with buttons arranged in a single row, ensures seamless integration into Urmet Alpha series systems. Press-fit attachment greatly simplifies installation, making it fast and secure, even in retrofit or replacement contexts.
Intuitive connection thanks to the supplied flat cables
One of the special features of this module is the quick connection via pre-wired flat cables, supplied directly with the 1168/6x and 1168/31x frames. This wiring system reduces the risk of errors during installation, speeds up assembly, and ensures perfect communication with the door station (both audio and audio/video) and the other modules of the pushbutton panel.
Expandability and versatility
Thanks to compatibility with the 1168/4 expander, the number of available buttons can be easily expanded, adapting the system to the specific needs of the building. In addition, the module is fully compatible with Urmet faceplates code 1168/11, 1168/12, 1168/13 and 1168/14, ensuring uniform aesthetics and perfect adaptability.
Ideal applications and uses
This module is perfectly suited for use in apartment buildings, apartment blocks, residential complexes and public buildings, where the management of multiple utilities from a single access point is required. Its modular structure allows customized and scalable installations to be configured, always maintaining high standards of reliability and compatibility.
There are no reviews
Data sheet
- Type: Door stations/Outdoor Intercoms
- Components: Modules
