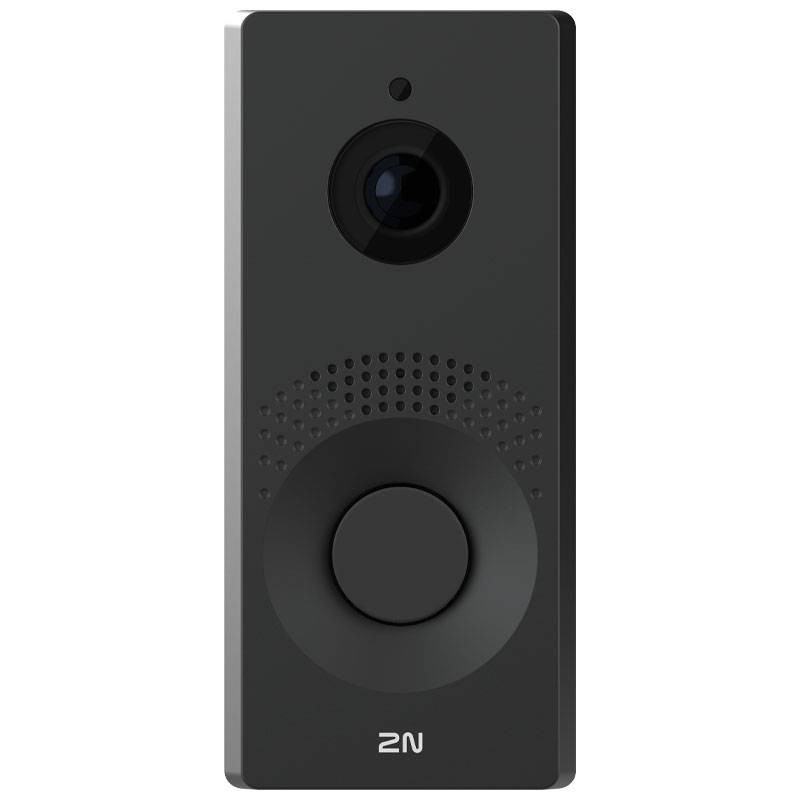

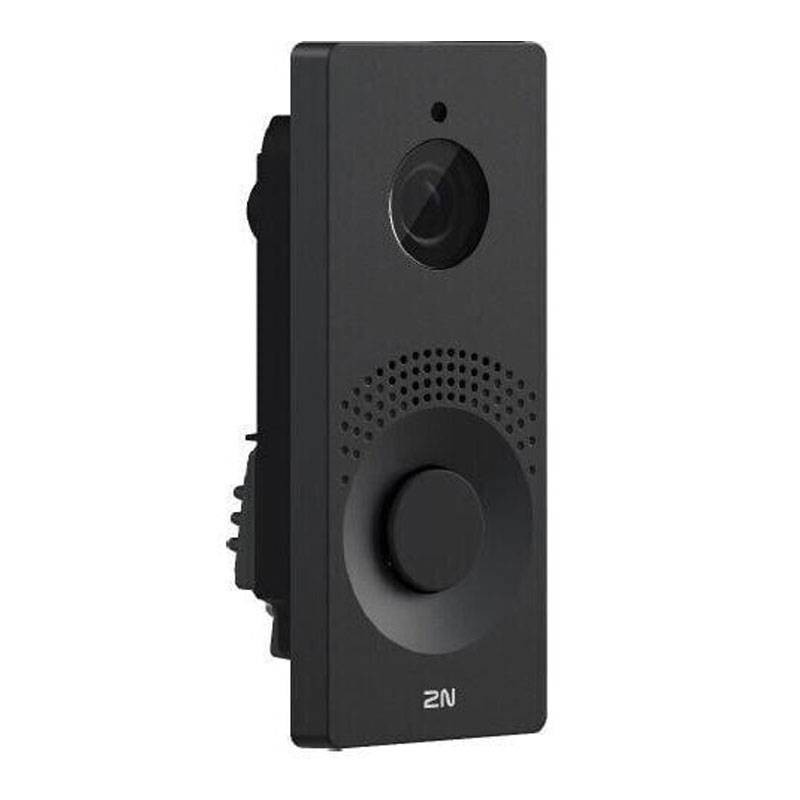

2N IP One Black Door station with camera 9158106
2NI 9158106
8595159522845
2N IP One Black Door station with wide-angle Full HD camera, free call to smartphone, My2N app and home automation compatibility
-
Wide-angle Full HD camera with Adaptive Facial Zoom
-
Sleek, compact and modern design in black color
-
Free calls to smartphones via My2N app with 2N indoor station
-
Compatible with home automation systems and mobile apps
-
Weatherproof and tamper-resistant
-
Powered by the powerful Axis ARTPEC-7 processor
-
Wall-mounted with dedicated accessory (code 9158002)
€966.24
Items Available: 1
Frequently bought together
2N IP One Black Door station high-definition video surveillance always on
The 2N IP One Door station is designed for the protection of single-family dwellings and offers constant Full HD vision thanks to the built-in wide-angle camera. With Adaptive Face Zooming technology, the camera automatically recognizes the visitor's face and frames it sharply, even in critical lighting conditions.
Smart integration and remote opening
Using the My2N app, residents can receive video calls on their smartphones and open the door with a simple touch, wherever they are. The system is compatible with popular home automation and access control devices, providing flexibility and living comfort.
Robust, discreet and elegant
Made with high-quality materials and a minimalist design, the push-button panel is weather-resistant and designed to last. Ideal for wall mounting, it is easily installed using the dedicated 9158002 accessory.
Package Contents.
-
1x 2N IP One Black handset
-
Installation manual
-
Basic accessories (wall accessory to be purchased separately: code 9158002)
Ideal for private homes and smart entrances
The 2N IP One Black is the ideal solution for those seeking advanced security, professional video surveillance and smart integration in one compact device, perfect for the residential environment.
Clean, minimalist design
Slim bezel, rounded edges, three luxurious finishes - the 2N IP One is designed to impress. The color of the eye-catching backlit button is customizable to full RGB spectrum and indicates the current status of the intercom: idle, ringing, in call or door open.
Exceptional durability
With IP66 and IK08 certifications, the 2N IP One is truly durable. The body is made of high-quality wet-painted aluminum, which provides exceptional resistance to vandals, water and dust.
Strengths of the 2N IP One handset
Front door under control
Unlike regular doorbells with cameras, you can connect the Door Strike directly to 2N IP One. This allows you to answer the door remotely, let visitors into your property using a QR code, or open the door using My2N App.
Full (HD) non-stop surveillance
If the Full HD intercom camera detects motion or if the microphone detects intense noise, 2N IP One will immediately alert residents.
Connects to home automation devices
Based on open protocols and capable of supporting various plug-ins, the IP video intercom can be integrated with major home automation systems and even office systems.
Excellent sound quality
With exceptional clarity and perfect intelligibility-this is how residents will communicate with every visitor, even in noisy environments. All thanks to the IP Video Intercom's sensitive microphone and powerful speaker.
Versatile installation options
Install the 2N IP One in the way that best suits your project. Recess the intercom into the wall for an elegant, almost seamless finish. If, on the other hand, you want quick and easy installation (or work with concrete walls where recessed installation is not possible), the surface-mount accessory is ideal.
Technical specifications of the 2N One hand control
Power supply
| Type | PoE and/or 12V/1A DC |
|---|---|
| PoE | 802.3af (12.95 W max.) |
Interfaces
| LAN | 10/100BASE-TX with Auto-MDIX function, RJ-45 connector |
|---|---|
| Recommended cabling | CAT5 copper cable |
| Active switch output | 12 V DC / max 600 mA |
| Passive switch | NO switch contacts, 20V AC or 30V DC, 1A |
| Inputs | 1 passive/active mode input (-30V to +30V DC), OFF = open or Uin > 1.5 V, ON = short connection or Uin > 1.5 V |
| Tamper switch | Yes |
Audio
| Microphone | 1 built-in microphone |
|---|---|
| Amplifier | 5 W RMS (Class D) |
| Speaker | Integrated, 3W |
| Line output | Not available |
| Volume control | Adjustable with automatic adaptive mode |
| Full Duplex | Yes (AEC) |
| Audio output | W3 |
| Protocols | RTP, RTSP, SRTP |
| Codec | G.711, G.729, G.722, L16/16kHz |
Camera and Video
| Sensor | 1/2.7″ color CMOS |
|---|---|
| Focal length | 1.93 mm |
| Viewing angle | 156° (horizontal), 116° (vertical) |
| IR light | Yes |
| WDR | Yes |
| Minimum illumination | 0.3 lux without IR |
| Protocols | RTP, RTSP, RTCP, HTTP, ONVIF v2.4 S profile |
| Codec | H.264, MJPEG, Axis Zipstream |
| Resolution | Max 1920 × 1440 (4:3) |
| Frame rate | 30 fps |
Dimensions
| Device | 78 × 172 × 53 mm |
|---|---|
| Product above wall | 78 × 172 × 10 mm |
| Flush mount | 67 × 167 × 56 mm |
Mechanical Features
| Frame | Cast aluminum (three colors) |
|---|---|
| Buttons | 1 |
| Processor | Axis ARTPEC-7 |
| Operating temperature | -40 °C to +60 °C |
| Storage temperature | -40 °C to +70 °C |
| Operating humidity | 10% to 95% (non-condensing) |
| Protection | IP66, IK08 |
There are no reviews
Data sheet
- Type: Door stations/Outdoor Intercoms
- System: IP
