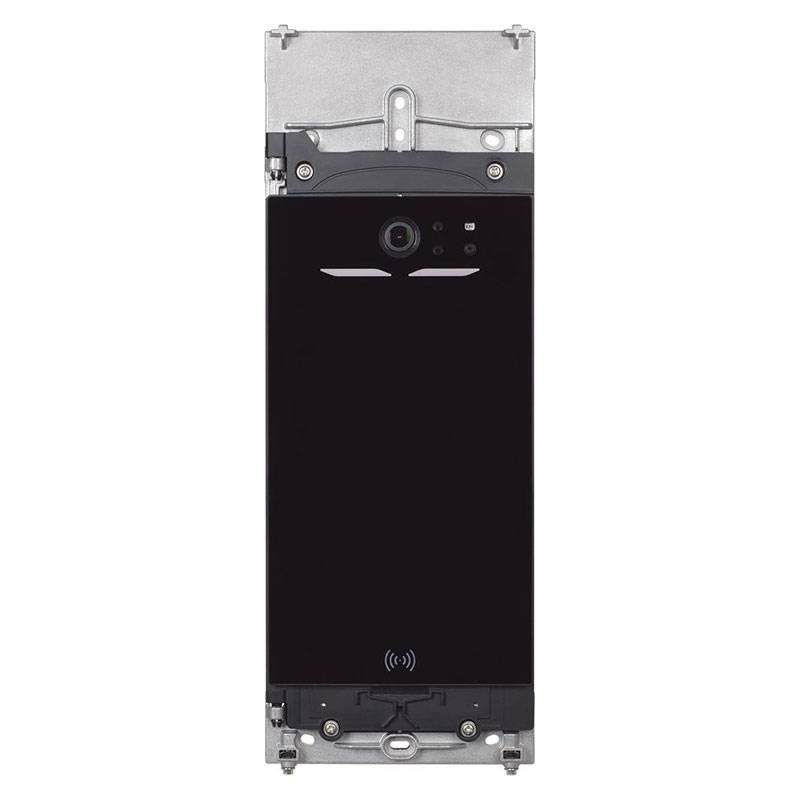

Bticino display module with camera for Linea 5000 control panel 345000
BTI 345000
8005543746073
The Bticino 345000 audio/video display module is the ideal solution for 2-wire video door phone systems in the Linea 5000 series, designed to provide security, accessibility, and advanced customization. It features a 5 megapixel full HD camera with wide-angle field of view, 7-inch shatterproof glass touch display, and a simple, modern and fully configurable user interface.
-
5 MP camera with wide-angle view: 119° horizontal / 92° vertical
-
White LEDs + twilight sensor for night vision
-
High-resolution 7" touch display, shatterproof (IK08), anti-fingerprint glass
-
Digital microphone with deco canceller for clear audio
-
Proximity sensor for auto power on display
-
3 calling modes: phonebook, numeric/alphanumeric code, logical code
-
Access support: code from display, RFID badge, Bluetooth via Home + Security app
-
Professional configuration via app or Home + Project software
-
Remote connection via Wi-Fi or Ethernet for remote management
-
Installation on flush-mounted box (code 350030) or wall-mounted box (code 345331/345332)
-
Integrated door opener contact (S+/S-, PL) for electro locks
€1,089.27
Items Available: 19
: 1
Frequently bought together
Display module with camera Bticino 345000 component for Linea 5000 push button panel
7-inch touch display for intuitive interaction
At the heart of the module is a large 7-inch capacitive display made of impact-resistant (IK08), anti-fingerprint glass with proximity sensor. The user interface is modern, accessible, and configurable: it supports welcome messages, custom logos, choice of light/dark theme, voice feedback, and more.
High-definition camera with night vision
The built-in camera provides reliable surveillance with its 5 MP sensor and intelligent LED illumination, which allows a clear view even in the absence of light. The extended field of view covers large entrance areas, making the system effective for any setting: residential, commercial, or with a concierge.
Smart access and simplified management
The module allows the opening of the gate with different modes: numeric or alphanumeric code, RFID badge, or via Bluetooth via the Home + Security app. It is also possible to generate temporary codes for visitors or suppliers, ideal for hospitality facilities or those with advanced access control.
Flexible installation and programming
Installable either flush-mounted (3 modules) or wall-mounted, the module has a folding opening for easy wiring. Professional configuration is done via the Home + Project app (from a smartphone or PC), even remotely, allowing configuration uploading via Bluetooth, Wi-Fi or Ethernet. Resident names and access codes can be updated on-site or remotely quickly and easily.
Technical Specifications LINE 5000 Module
| Parameter | Value |
|---|---|
| Voltage | 18-27 Vdc |
| Modules | 3 |
| Degree of protection | IP65 |

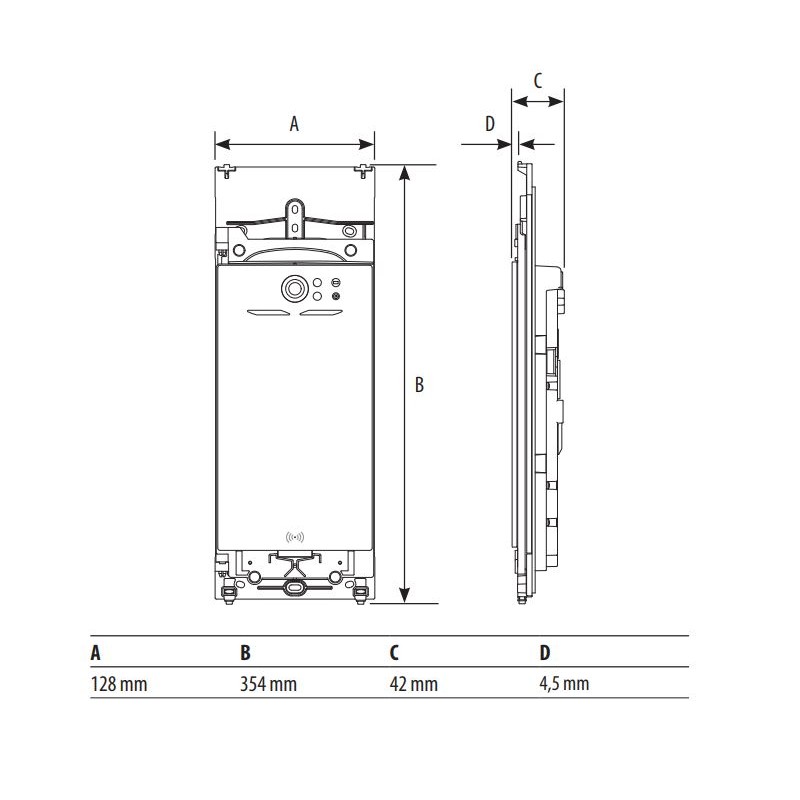

| Dimensions (W × H × D) | 128 × 354 × 42 mm |
| Height | 354 mm |
| Width | 128 mm |
| Depth | 42 mm |
| System type | 2 wires |
| Ruggedness grade | IK08 |
| Recommended installation height | 180 cm |
| Operating temperature | (-25) - (+70) °C |
| Connection type | Connected / Traditional (SCS BUS) |
| Resolution | 625 TV lines (H) |
| Series | LINE 5000 |
Related Items
| Code | Description |
|---|---|
| 345101 | 5000 Line - Finishing Frame - Aluminum |
| 345102 | 5000 line - Finishing frame - Nickel |
| 345103 | 5000 line - Finish frame - Gold |
| 345104 | 5000 line - Finish frame - Titanium |
| 345105 | 5000 line - Finish frame - Steel |
There are no reviews
Data sheet
- Type: Door stations/Outdoor Intercoms
- WIFI: Yes
- Components: Modules
