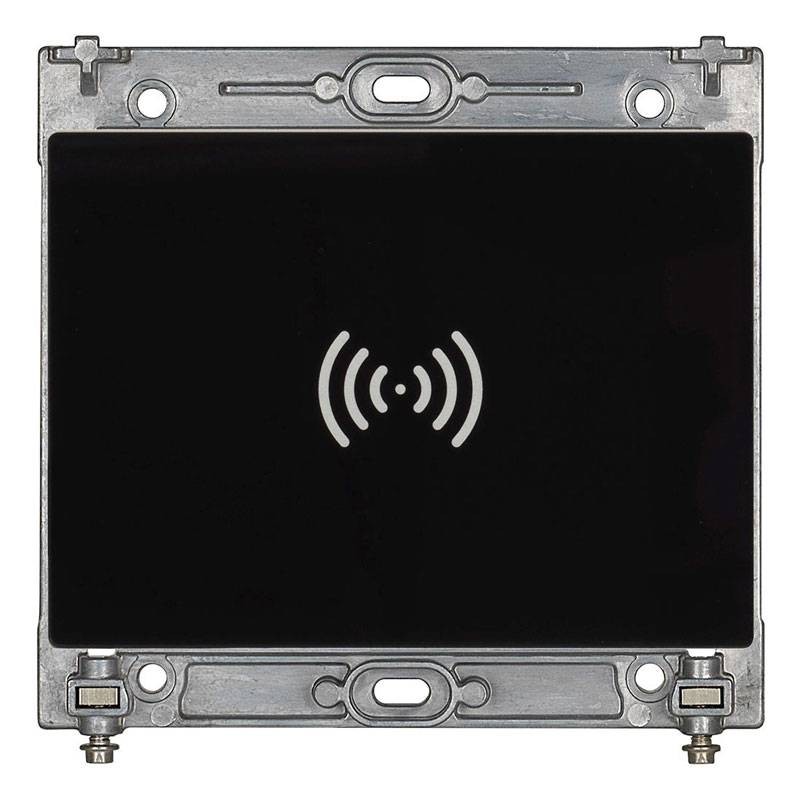

Bticino Linea 5000 Smart Access RFID Module 345520
BTI 345520
8005543746103
The Bticino 345520 Smart Access module enables secure opening of electronic locks in 2-wire installations of the Linea 5000 series, via RFID or Bluetooth badges with the Home + Security app. Ideal for residential and commercial installations, the module can be used in conjunction with the 345000 display module, offering smart, customizable access.
-
Technologies supported: RFID (badge) and Bluetooth (Home + Security app)
-
Compatible with 2-wire systems and 345000 display module
-
Built-in relay with C NO NC contacts
-
CP P1 terminals for local door opener button connection
-
Access status LED for visual feedback
-
Button for programming reset
-
Programming via Home + Project app (Bluetooth or remote)
-
Installable in flush-mounted box 1 module 350010
-
Compatible with wall boxes 345311 and 345312
-
To be completed with Linea 5000 frame (e.g. 345201)
€247.45
Items Available: 14
Frequently bought together
Bticino 345520 Smart Access Module: RFID/Bluetooth for Linea 5000
Smart access with badge or smartphone
With the 345520 module, you can manage door opening with a simple RFID badge or directly from your smartphone thanks to the Bluetooth connection with the Home + Security lapp. An ideal solution for homes, offices, hospitality facilities or apartment buildings that want a modern, fast and secure access system.
Simple programming with Home + Project
The module is easily configured via the Home + Project lapp, which can be used from a smartphone or PC. You can associate badges, manage user profiles and set access modes, either locally via Bluetooth or remotely (if the system is connected).
Visual feedback and total security
Equipped with status LEDs to indicate correct access recognition and reset button, the device ensures a clear and protected user experience. The dry contact relay (C-NO-NC) allows maximum flexibility in connection with different types of electric locks.
Technical Specifications Line 5000 RFID Module
| Parameter | Value |
|---|---|
| Voltage | 18-27 Vdc |
| Modules | 1 |
| Contact type | 8 A, 30 Vdc/Vac ; cosφ = 1 - 3.5 A, 30 Vac ; cosφ = 0.4 |
| Degree of protection | IP65 |
| Dimensions (W × H × D) | 129 × 127 × 41 mm |
| Height | 127 mm |
| Width | 129 mm |
| Depth | 41 mm |
| System type | 2 wires |
| Ruggedness grade | IK08 |
| Operating temperature | (-25) - (+70) °C |
| Connection type | Connected / Traditional (BUS SCS) |
| Series | LINE 5000 |
There are no reviews
Data sheet
- Type: Door stations/Outdoor Intercoms
- Components: Modules
