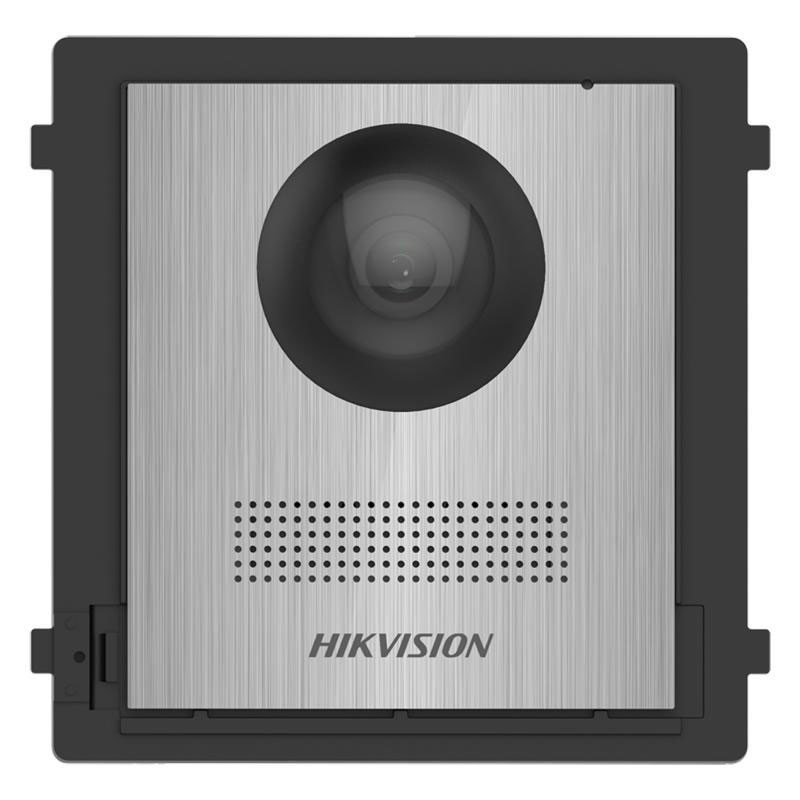

Hikvision Camera Module DS-KD8003-IME1/NS for KD8 Pro Panels 305303049
HIK 305303049
6931847183554
Hikvision DS-KD8003-IME1/NS (305303049) is the main camera module for KD8 Pro entry panels: 2MP HD fisheye camera 180° with IR and WDR, powerful integrated audio and complete I/O (2 lock relays + alarms), the heart of your modular video intercom.
-
Main unit for KD8 Pro modular door station (requires mounting bracket)
-
2 MP HD fisheye camera with 180° FOV and IR supplement for night
-
WDR for more readable images against backlight (entrances and gates)
-
2 relays for lock control + 4-channel alarm input
-
Outdoor installation: IP65, power supply 12 VDC or standard PoE
-
Complete audio: omnidirectional microphone, speaker >85 dB, echo and noise cancellation.
€190.14
Items Available: 1
Frequently bought together
KD8 Pro Camera Module: the heart of the modular entry panel
The DS-KD8003-IME1/NS is the main unit of the Hikvision KD8 Pro entry panels: it manages the video, audio, and access control functions, becoming the operational center of the door station. It is the right choice when you want a scalable system: add button modules, readers, or accessories while maintaining a reliable and complete camera unit as the base. The presence of lock relays and alarm inputs makes it suitable for both small residential systems and multi-user contexts.
2MP fisheye 180° video: more entrance covered, fewer blind spots
The integrated camera is a 2 MP low-light HD with a fisheye lens, designed to capture a wide area in front of the door. The 180° horizontal (96° vertical) field of view is ideal for narrow entrances or doors where a traditional lens might cut off people and packages. The module supports two streams:
-
Main stream 1920×1080 for maximum quality
-
Sub stream 720×480 for lighter transmissions or less performant networks.
The WDR helps manage typical entrance situations (sun behind, shadows, reflections), improving face and detail readability.
Integrated IR: visibility even at night
The IR supplement ensures clearer vision in dark or low-light conditions. It is a concrete advantage for external entrances, landings, gates, and areas with intermittent lighting, as it makes the footage usable even at night without relying entirely on ambient light.
Professional audio: clear voice and high volume
The audio is designed for real street use: integrated omnidirectional microphone, noise suppression, and echo cancellation to improve understanding, especially in environments with reverberation (lobby, porch) or external noises (traffic). The integrated speaker exceeds 85 dB within 20 cm, so the call remains audible even in open spaces. The adjustable volume allows the system to be adapted to the context.
I/O and access control: two locks and 4-channel alarms
This module includes 2 lock relays to control locks or electric locks (e.g., door + gate), and features 4-channel alarm inputs to integrate contacts or sensors (door open, buttons, auxiliary alarms). It is a useful feature for more advanced systems, where video intercom and security work together.
IP65 protection and PoE power supply: ready for outdoor and clean installations
With IP65 protection, the DS-KD8003-IME1/NS is suitable for outdoor installations. Power can be supplied via 12 VDC or standard PoE, ideal for tidy cabling: a single Ethernet cable for data and power (when PoE is available), reducing time and points of failure.
| SYSTEM PARAMETERS | |
|---|---|
| Operating system | Embedded Linux |
| ROM | 16 MB |
| RAM | 256 MB |
| Processor | Embedded MCU |
| VIDEO PARAMETERS | |
| Lens | 2 MP low-light HD IR camera |
| Main stream resolution | 1920 × 1080 |
| Sub stream resolution | 720 × 480 |
| Field of view | Horizontal 180° / Vertical 96° |
| WDR | Supported |
| Light supplement | IR |
| Video compression | H.264 |
| AUDIO PARAMETERS | |
| Audio compression | G.711 U |
| Audio input | Integrated omnidirectional microphone |
| Audio output | Integrated speaker (>85 dB at 20 cm) |
| Audio bitrate | 64 Kbps |
| Audio quality | Noise and echo suppression |
| Volume adjustment | Adjustable |
| NETWORK PARAMETERS | |
| Communication protocol | TCP/IP, RTSP |
| Wired network | Supported |
| GENERAL | |
| Protection grade | IP65 |
| Working temperature | from -40 °C to +55 °C |
| Working humidity | 10% – 95% |
| Dimensions (W × H × D) | 98 × 99.8 × 43.9 mm |
| Power supply | PoE IEEE 802.3af / 12 V DC 1 A |
| Power consumption | ≤ 10 W |
| Supported languages | English, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Portuguese, Slovak |
There are no reviews
Data sheet
- Type: Door stations/Outdoor Intercoms
- Degree of protection: IP65
- Components: Modules
