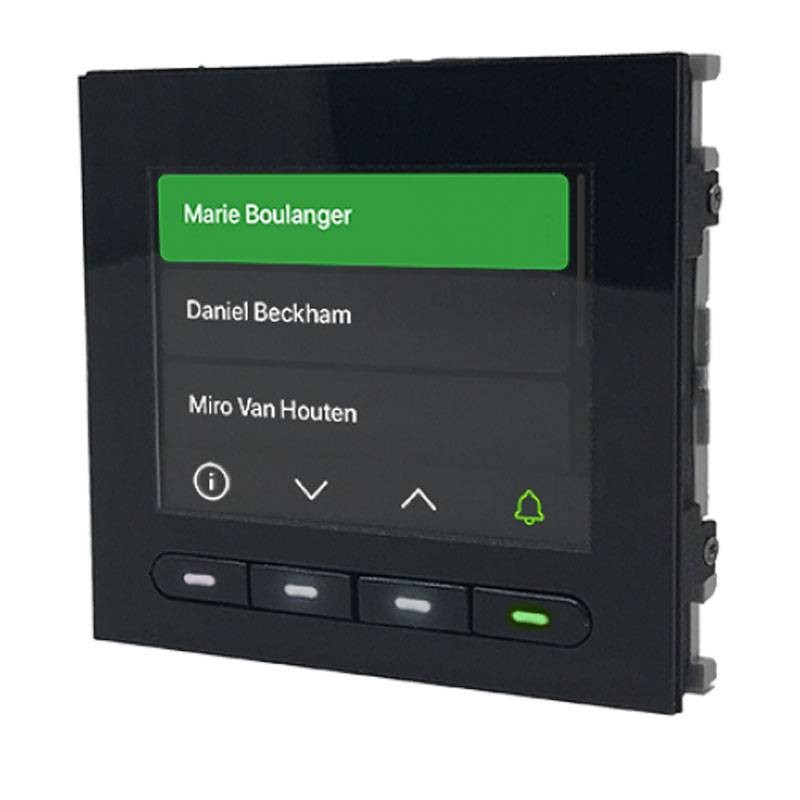

Comelit digital address book module with display for Ultra entrance panels IP65 Black UT9260M
COE UT9260M
8023903400137
Comelit digital directory module for Ultra panels, compatible with all Comelit systems and equipped with Bluetooth connectivity for smart management, with the following features:
-
Display: 3.5-inch graphic LCD - 320x240 pixels
-
System compatibility: Simplebus 1, Simplebus 2, ViP
-
Connection: Bluetooth
-
Power supply: 33 VDC from bus
-
Buttons: 4 backlit mechanical
-
Mounting: Wall/recessed with accessories
-
Material: Polycarbonate
-
Colour: Black
-
Dimensions: 100x90x35 mm (WxHxD)
-
Protection rating: IP65
€312.39
Out of stock
Incoming
Frequently bought together
Digital address book module with display for Ultra entrance panels
The UT9260M module represents an innovative and functional solution for digital access management in video intercom systems. Compatible with all Comelit platforms, including the ViP and Simplebus systems, it integrates a modern user interface with extensive customization possibilities, making it ideal for residential, commercial, and managerial contexts.
3.5-inch color display and intuitive mechanical buttons
The heart of the UT9260M is its 3.5-inch color graphic LCD display with a resolution of 320x240 pixels, ensuring excellent readability even in outdoor environments. The four backlit mechanical buttons allow for simple and immediate user selection, with the possibility to associate specific functions such as direct call to the switchboard, light activation, or access opening.
Simplified address book management via Bluetooth
Thanks to the integrated Bluetooth connection, the installer can easily manage the address book through the dedicated MyComelit app, available on smartphones. This functionality allows adding, modifying, or deleting names without the need for manual interventions on the module.
Extended compatibility and advanced functions
Compatible with all Comelit systems, including:
-
Simplebus 1
-
Simplebus 2 with power supplies 1210, 1210A, 4888C
-
ViP (IP video intercom)
It can be paired with a numeric keypad module (rel. 1.1.0 or higher) to make direct calls by entering the user code or to enable access control, activating the outputs of audio/video modules and actuators.
Robust design, versatile installation
Made of black polycarbonate, the module is weather-resistant thanks to IP65 protection and IK08 vandal-proof certification. It can be installed on the wall or flush-mounted using optional accessories, ensuring maximum design flexibility.
Bus-powered and low consumption
The UT9260M is powered directly by the video intercom bus at 33VDC, with a maximum consumption of only 2W, optimizing the energy efficiency of the entire system.
Smart features and customizations
The module supports a wide range of advanced functions:
-
Customizable welcome message and screensaver
-
Visual system status notifications
-
Display backlight adjustment
-
Programming via ViP Manager software
With a capacity of up to 1500 storable users, it perfectly suits even large buildings.
Technical Features Comelit Address Book Module
| General Data | |
|---|---|
| Type | Modular |
| Dimensions (H×W×D) | 90×100×35 mm |
| Coating material | Polycarbonate |
| Colour | Black |
| Flush mounting | Yes, with dedicated accessory |
| Wall mounting | Yes, with dedicated accessory |
| Compatible Systems | |
| Simplebus 2 (Audio/Video – art. 4888C) | Yes |
| Simplebus 2 (Audio/Video – art. 1210/1210A) | Yes |
| Simplebus 2 (Audio – art. 1210/1210A) | Yes |
| Simplebus 1 | Yes |
| ViP | Yes |
| Display | |
| Type | LCD, graphic |
| Size | 3.5 inches |
| Resolution | 320×240 pixels |
| Electrical Features | |
| Power supply type | From video intercom bus |
| Power supply voltage | 33V DC |
| Stand-by consumption | 1.3W |
| Maximum consumption | 2W |
| Hardware | |
| Call type | Digital |
| Button type | Mechanical |
| Number of buttons | 4 |
| Button backlighting | Black |
| Terminals | D+, D-, GND |
| Adjustments and Software | |
| Display backlighting | Yes |
| Brightness adjustment | Yes |
| Bluetooth | Sì |
| Compatible software | ViP Manager |
| Environmental Characteristics | |
| IP protection rating | IP65 |
| IK protection rating | IK08 |
| Operating temperature | -25/+55 degrees |
| Operating humidity | 25 - 95% (non-condensing) |
| Environmental class | IV |
| Main Functions | |
| Number of storable users | 1500 |
| System status notifications | Yes, visual |
| Customizable welcome message | Yes |
| Customizable screen saver | Yes |
