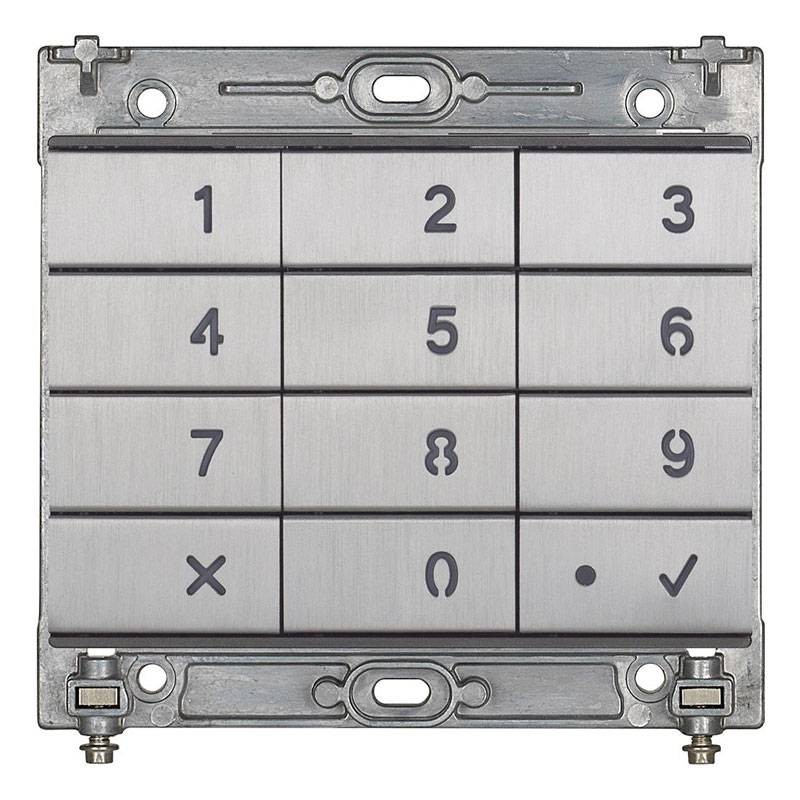

Bticino additional keypad module for Linea 5000 aluminum 345500
BTI 345500
8005543746080
The Bticino 345500 keypad module is an accessory device for the Linea 5000 video intercom system, designed to manage the opening of locks by code in 2-wire systems. Made with aluminum keys and night backlighting, it is ideal for ensuring controlled, secure and modern access, either in stand-alone configurations or in conjunction with the 345000 display module.
-
Coded keypad module for Line 5000
-
Aluminum keypad finish
-
Compatible with 2-wire systems and 345000 display module
-
Equipped with relays with C NO NC contacts
-
CP P1 terminals for local door opener button connection
-
Access status LED + night backlighting
-
Programming reset button
-
Programming via Home + Project app (Bluetooth or remote)
-
Installation in flush-mounted box 1 module 350010
-
Compatible with wall box 345311 or bracket 345341 for 3+1 compositions
-
To be completed with Linea 5000 front frame (e.g. 345201)
€278.91
Items Available: 11
Frequently bought together
Bticino 345500 Keypad Module for Linea 5000 Pushbutton Panel
Secure and customizable access control
The keypad module enables lock opening via numeric code, ideal for residential buildings, hospitality facilities or commercial settings. Codes and settings are programmed via Home + Project, the app dedicated to professionals for managing MyHOME systems.
Practical even at night
Equipped with automatic backlighting and visual LEDs indicating access status, the module is perfectly visible and functional even in low light conditions. The sleek aluminum design ensures a perfect aesthetic match with all modules in the Linea 5000 series.
Flexible installation
The module can be mounted individually (stand-alone) or in composition with display module (e.g. 3+1 configuration). Compatible with recessed (350010), wall (345311) or via accessory 345341, for great installation versatility.
Technical Specifications module with LINEA 5000 Contact
| Parameter | Value |
|---|---|
| Voltage | 18-27 Vdc |
| Modules | 1 |
| Contact type | 8 A, 30 Vdc/Vac ; cosφ = 1 - 3.5 A, 30 Vac ; cosφ = 0.4 |
| Degree of protection | IP65 |
| Dimensions (W × H × D) | 129 × 127 × 41 mm |
| Height | 127 mm |
| Width | 129 mm |
| Depth | 41 mm |
| System type | 2 wires |
| Ruggedness grade | IK08 |
| Operating temperature | (-25) - (+70) °C |
| Connection type | Connected / Traditional (BUS SCS) |
| Color | Aluminum |
| Series | LINE 5000 |
There are no reviews
Data sheet
- Type: Door stations/Outdoor Intercoms
- Components: Modules
