Bticino system base kit for Linea 5000 control panel 345001
BTI 345001
8005543752043

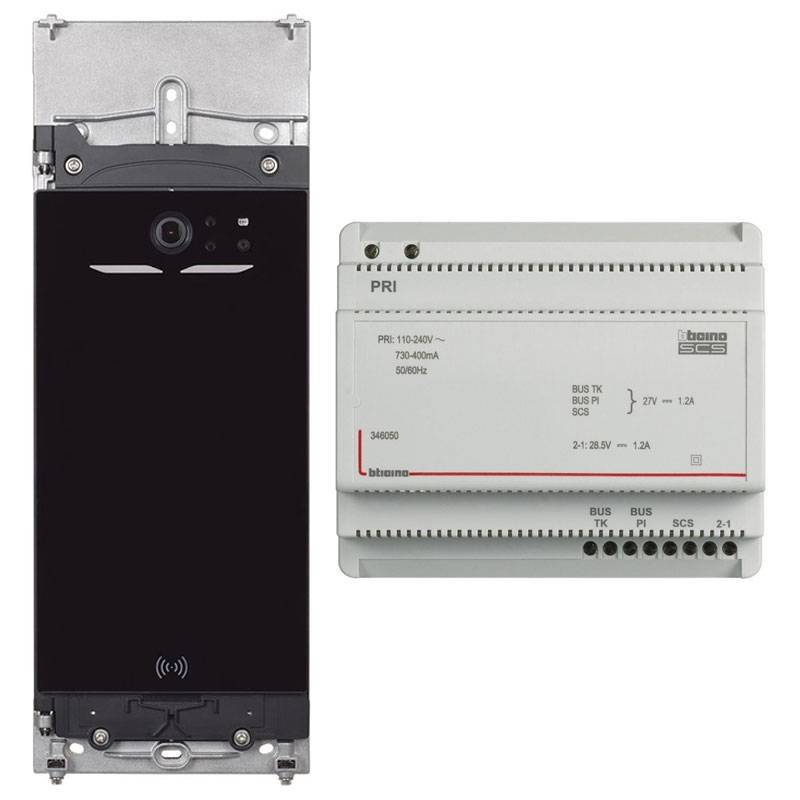

The Bticino 345001 basic kit for the Linea 5000 push-button panel is the ideal solution for creating high-performance 2-wire video door phone systems in residential, condominium or commercial settings. The kit consists of:
-
1 Audio/video display module code 345000
-
Power supply unit code 346050 for 2-wire systems
€1,103.65
Items Available: 29
Frequently bought together
Bticino basic system kit: specific components included in the kit
Bticino 345000 Camera Display Module
7-inch touch display for intuitive interaction
At the heart of the module is a large 7-inch capacitive display made of impact-resistant (IK08), anti-fingerprint glass with proximity sensor. The user interface is modern, accessible, and configurable: it supports welcome messages, custom logos, choice of light/dark theme, voice feedback, and more.
High-definition camera with night vision
The built-in camera provides reliable surveillance with its 5 MP sensor and intelligent LED illumination, which allows a clear view even in the absence of light. The extended field of view covers large entrance areas, making the system effective for any setting: residential, commercial, or with a concierge.
Smart access and simplified management
The module allows the opening of the gate with different modes: numeric or alphanumeric code, RFID badge, or via Bluetooth via the Home + Security lapp. It is also possible to generate temporary codes for visitors or suppliers, ideal for hospitality facilities or those with advanced access control.
Flexible installation and programming
Installable either flush-mounted (3 modules) or wall-mounted, the module has a folding opening for easy wiring. Professional configuration is done via the Home + Project lapp (from a smartphone or PC), even remotely, allowing configuration uploading via Bluetooth, Wi-Fi or Ethernet. Resident names and access codes can be updated on-site or remotely quickly and easily.
Technical Specifications LINE 5000 Module
| Parameter | Value |
|---|---|
| Voltage | 18-27 Vdc |
| Modules | 3 |
| Degree of protection | IP65 |

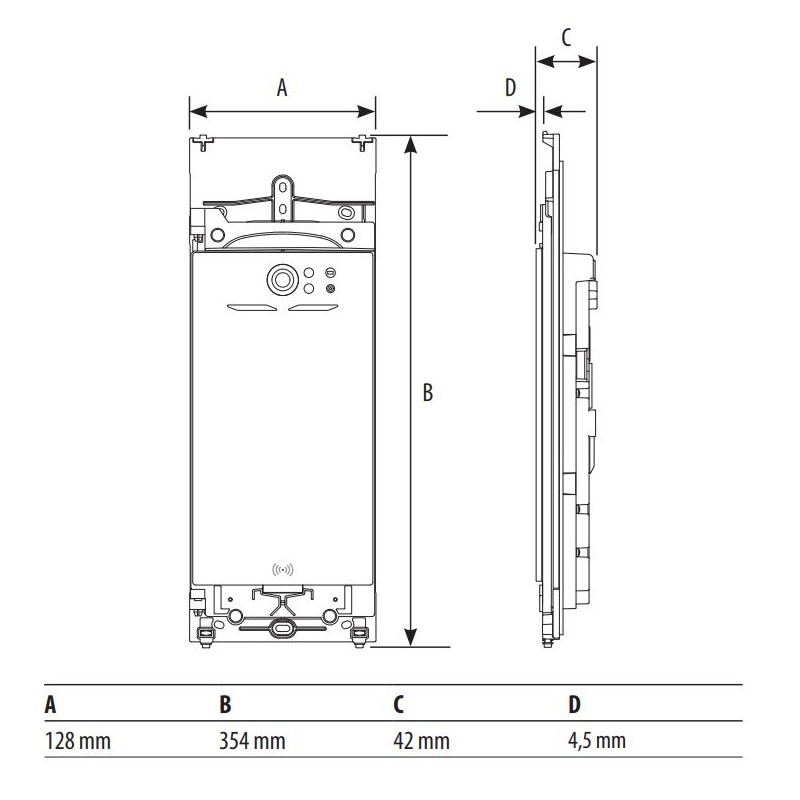

| Dimensions (W × H × D) | 128 × 354 × 42 mm |
| Height | 354 mm |
| Width | 128 mm |
| Depth | 42 mm |
| System type | 2 wires |
| Ruggedness grade | IK08 |
| Recommended installation height | 180 cm |
| Operating temperature | (-25) - (+70) °C |
| Connection type | Connected / Traditional (SCS BUS) |
| Resolution | 625 TV lines (H) |
| Series | LINE 5000 |
Related Items
| Code | Description |
|---|---|
| 345101 | 5000 Line - Finishing Frame - Aluminum |
| 345102 | 5000 line - Finishing frame - Nickel |
| 345103 | 5000 line - Finish frame - Gold |
| 345104 | 5000 line - Finish frame - Titanium |
| 345105 | Line 5000 - Finish Frame - Steel |

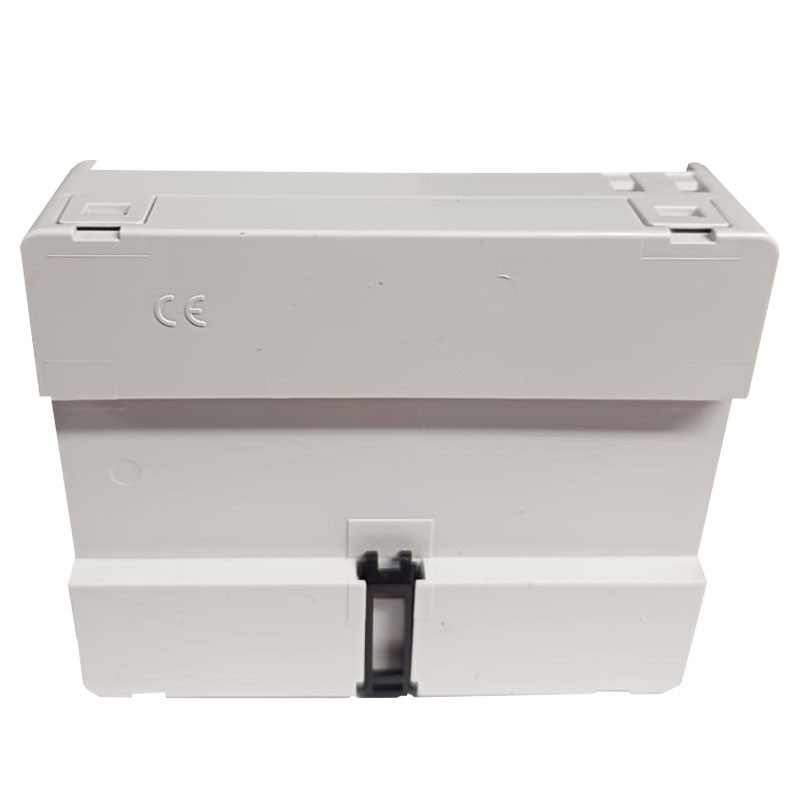

BUS-SCS power supply for 2-wire audio and video systems 346050

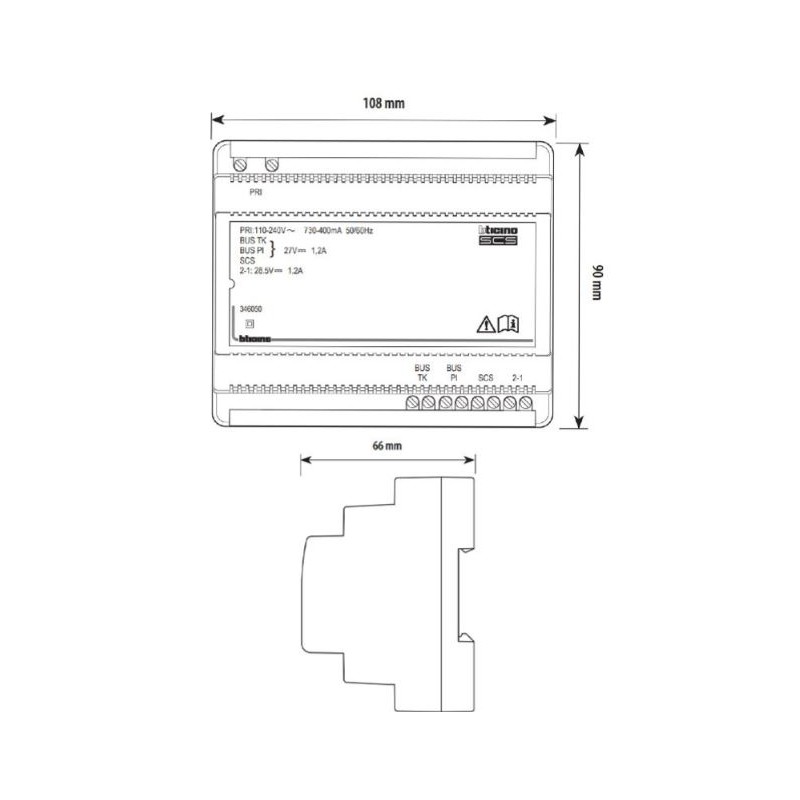

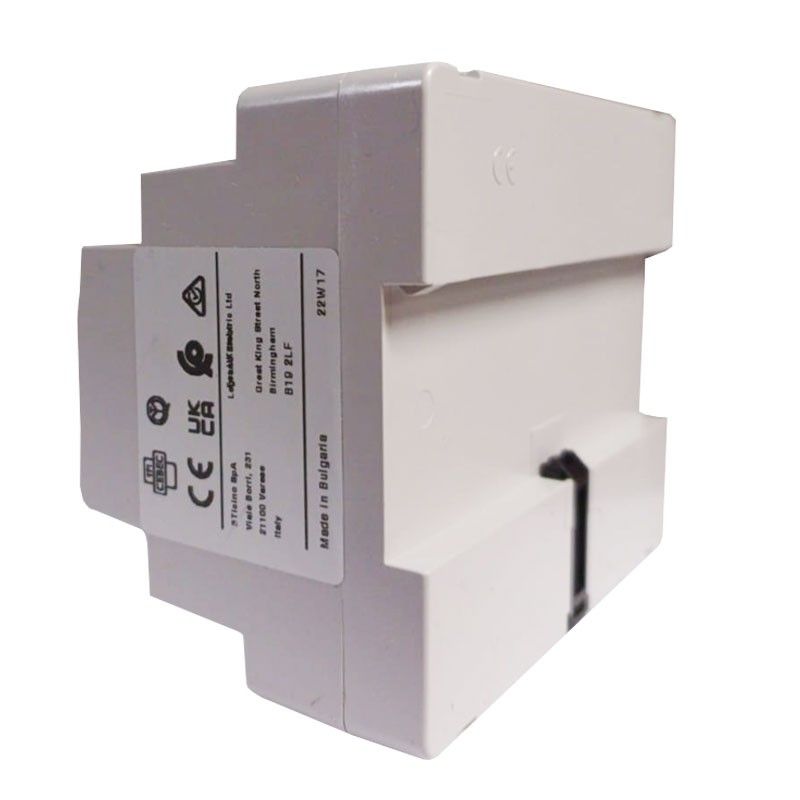

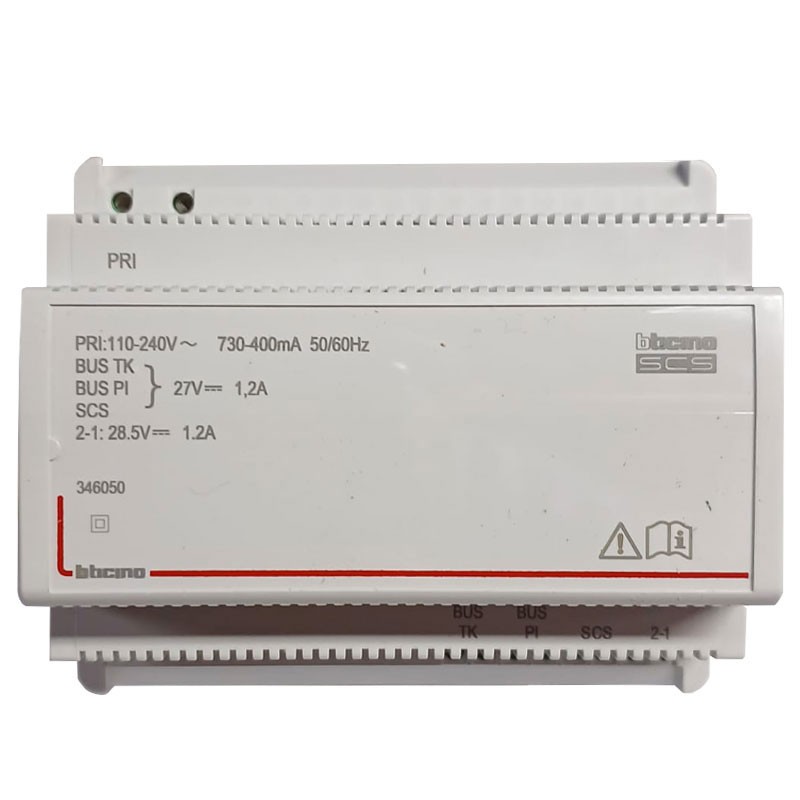

The Bticino 346050 power supply is a professional device for audio and video systems on 2-wire technology, which can be installed in 6 DIN module modular housing. Designed for reliability, safety and versatility, it provides SELV extra-low voltage power supplies for SCS BUS systems and can also be used as an additional local power supply
-
Input power supply: 110 240 V AC / 5060 Hz
-
Format: 6 DIN modules
-
SELV outputs: BUS terminals TK, BUS PI, SCS (combined, max 1.2 A) - Terminals 1 - 2 for local power supply (alternate use)
-
Integrated video adapter (does not require item 346830)
-
Avoids use of A/V node (F441) or F441M matrix with limited leads
-
Protected against overloads and short circuits
-
Double SELV electrical isolation
-
Does not require configuration
-
Alternate use of outputs, not simultaneous (unless specifically combined)
Stable and safe power supply for Bticino 2-wire systems
The Bticino 346050 power supply ensures stable and secure power supply to devices connected to the 2-wire bus of the MyHOME or video door phone system. It is suitable both as a main unit and as an additional power supply, thanks to the dual independent outputs to be selected according to the system configuration.
Integrated video adapter
Unlike other power supplies, 346050 includes a built-in video adapter, obviating the need for additional modules such as item 346830. In addition, for installations with up to 3 total outlets (e.g., 2 PI + 1 TK risers), the use of the F441 A/V node or F441M matrix can be avoided.
Safety and automatic protection
The device is protected against overloads and short circuits. In the event of an abnormality, power must be removed for at least 5 minutes to reset. Designed with double SELV electrical isolation, it ensures maximum safety for the user and the system.
Technical Specifications Power Supply
AC Power Supply Input (PRI)
| Parameter | Value |
|---|---|
| Rated voltages | 110 - 240 V |
| Current ratings | 730 - 400 mA |
| Working frequency range | 50 - 60 Hz |
| Power consumption at full load | 40 W max |
| Power dissipation | 8 W max |
| Efficiency at full load | 80 % typ. |
| Standby power | < 1 W |
| Operating temperature | (-10) - (+55) °C |
| Built-in fuse (PRI side) | F1 T 3.15A 250 V |
Outputs-BUS TK, BUS PI, SCS
| Parameter | Value |
|---|---|
| Rated voltage | 27 Vdc |
| Rated current | 1,2 A |
| Rated power | 32,4 W |
Output 1-2
| Parameter | Value |
|---|---|
| Rated voltage | 28.5 Vdc |
| Rated current | 1,2 A |
| Rated power | 34,2 W |
There are no reviews
Data sheet
- KIT: Video Intercom Basic Kits
- WIFI: No
