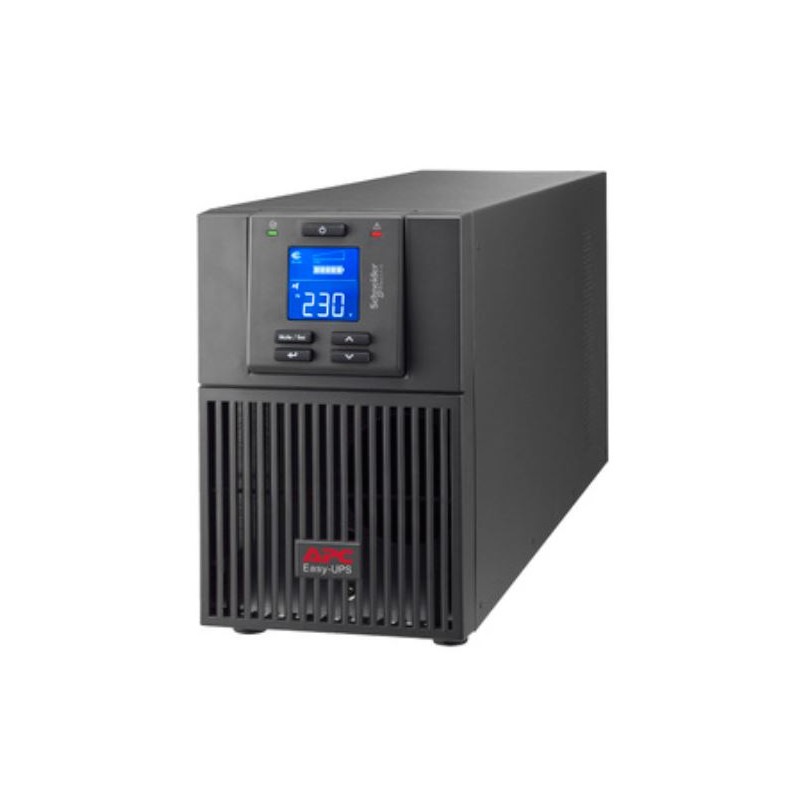

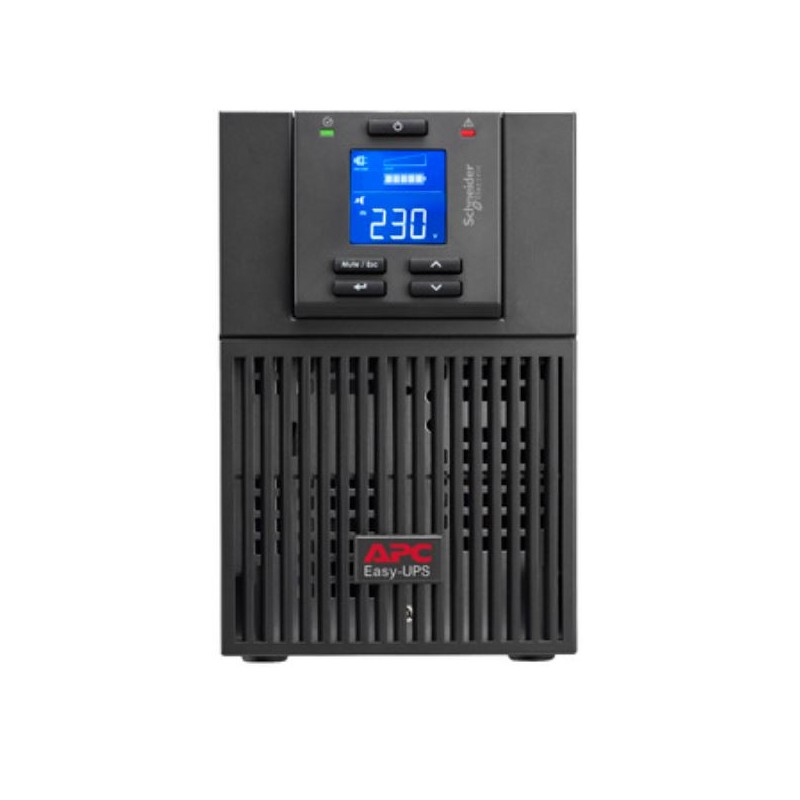

Schneider EASY Uninterruptible Power Supply UPS 1000VA SRVE 230V
SNR SRV1KI-E
7313044368504
The Schneider EASY 1000VA SRVE 230V UPS is an online double-conversion uninterruptible power supply system designed to protect sensitive devices even in unstable power conditions. With a power rating of 900 watts (1000VA), it is ideal for business and home environments where reliable protection for critical devices is required:
-
Advanced technology: online double conversion UPS with pure sine wave
-
High performance: 900-watt, 1000VA power rating to support essential devices
-

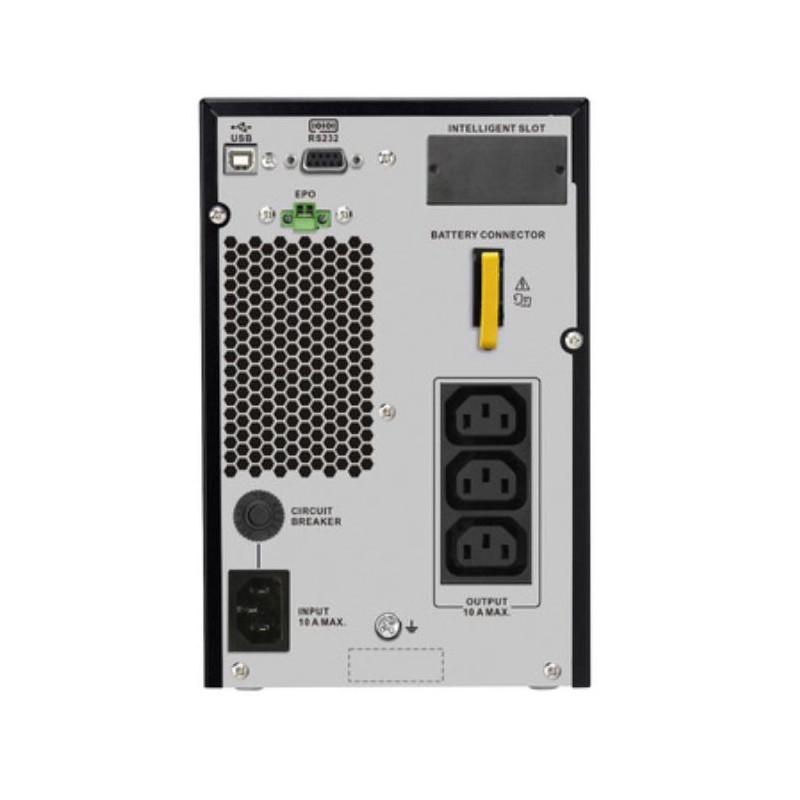

Versatile connectivity: 3 IEC 60320 C13 output and IEC 60320 C14 input outlets
-
Battery life: Up to 3 minutes at full load, recharging in just 4 hours
-
Energy efficiency: Up to 88% efficiency at full load to reduce consumption
-
USB compatible: Easy connection for monitoring and configuration
-
Guaranteed safety: IP20 degree of protection and low noise level of 50 dB
€434.87
Items Available: 9
Schneider EASY 1000VA SRVE 230V Uninterruptible Power Supply UPS
The Schneider EASY 1000VA SRVE 230V UPS is a double-conversion online uninterruptible power supply system designed to protect sensitive devices even in unstable power conditions. With an output of 900 watts (1000VA), it is ideal for business and home environments where reliable protection for critical devices is required.
Design and mounting
The UPS features a compact, vertical design with dimensions of H22.3 x W14.5 x D28.8 cm and a net weight of 9.6 kg, facilitating integration into small spaces. It is not rack-mountable, but offers flexibility for installation in business and home environments.
Equipment included
- 1 IEC 60320 C13 to Schuko power cord
- 1 power cord IEC 60320 C13 to C14
- 1 USB cable
- 1 RS-232 configuration cable
- User manual
Technical Characteristics
Electrical Specifications
| Specifications | Details |
|---|---|
| Main Input Voltage | 230V |
| Other Input Voltage | 220/240V |
| Main Output Voltage | 230V |
| Other Output Voltage | 220/240V |
Batteries and Duration
| Specifications | Details |
|---|---|
| Battery Type | Lead Acid |
| Battery Voltage | 24V |
| Number of Full Battery Slots | 0 |
| Number of Free Slots for Battery | 0 |
| Battery Charging Time | 4 Hours |
| Battery Life | 3...5 years |
| Battery Charger Power | 30 Watt nominal |
General Data
| Specifications | Details |
|---|---|
| Maximum Duration | 3 minutes |
| Number of Power Modules Filled Slots | 0 |
| Number of Free Power Modules Slot | 0 |
| Redundant | NO |
Environmental Characteristics
| Specifications | Details |
|---|---|
| Ambient Air Temperature per Operation | 0/+40°C |
| Relative Humidity for Operation | 0...95% non-condensing |
| Operating Altitude | 0...3000 meters |
| Ambient Air Temperature for Storage | -20/+50°C |
| Relative Humidity for Storage | 0...95% |
| Storage Altitude | 0...15000 meters |
| Sound Level | 50 dB |
| Heat Dissipation | 380 BTU/h |
Communications and Management
| Specifications | Details |
|---|---|
| Alarm | Alarm when on battery, low battery alarm, continuous overload tone |
| Free Slots | 1 |
| Control Panel | Multi-function LCD status and control console |
| Overvoltage Protection and Filtering | Peak energy rate: 945 years |
Certifications and Standards
| Specifications | Details |
|---|---|
| UKCA | Yes |
| Standards | EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018 |
Input Voltages and Productions
| Specifications | Details |
|---|---|
| Input Voltage Limits | 110...285 V (40% load), 180...285 V (at full load) |
| Mains Frequency | Automatic detection 40...70 Hz |
| Maximum Configurable Power in E | 1000VA |
| Maximum Configurable Power in IN | 900 Watts |
| Output Frequency | 50/60 Hz +/- 3 Hz (synchronization to mains) |
| Harmonic Distortion | 3% |
| Type of UPS | Online double conversion |
| Wave Type | Sine wave |
| Efficiency | 88% (full load) |
| Configurable for Nominal Output Voltage | 220, 230 or 240 V |
| Type of Bypass | Internal (automatic and manual) |
Data sheet
- Type: Uninterruptible Power Supply UPS
- Rated Power: 1000VA
- Active Power: 900W
