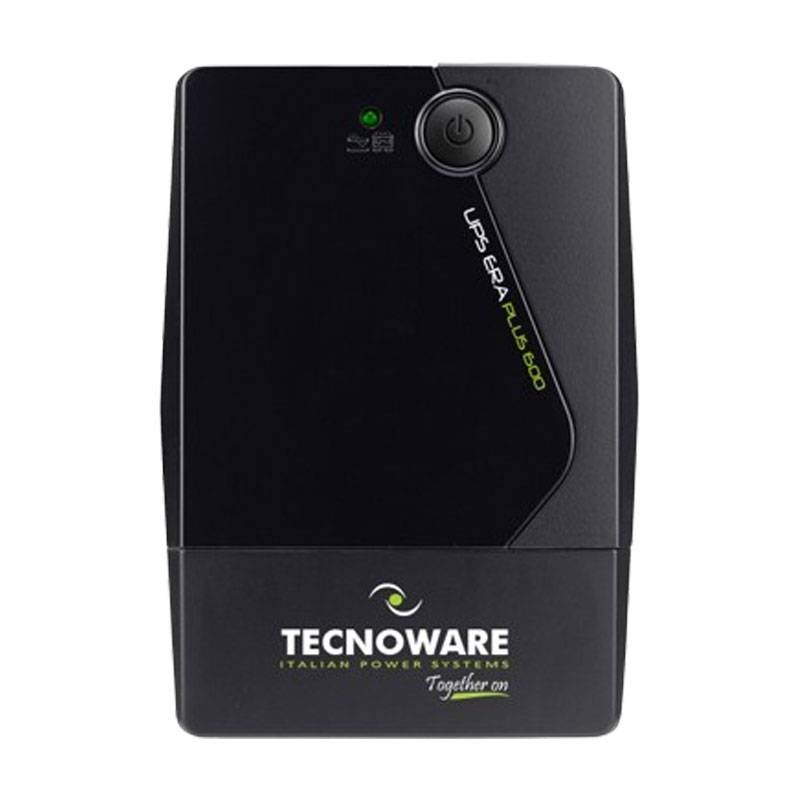

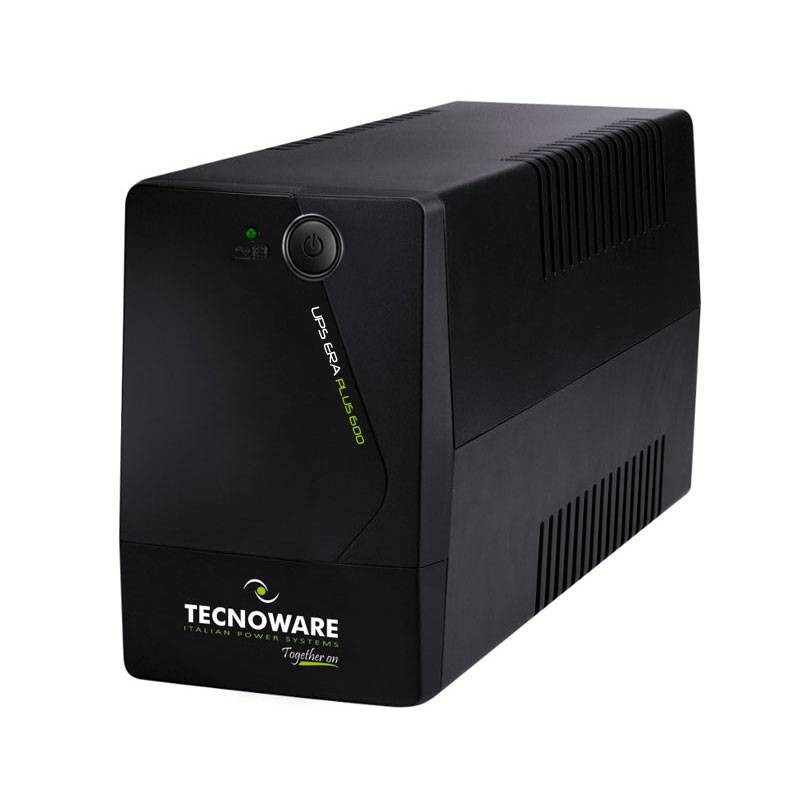

Tecnoware UPS ERA PLUS 800VA 560W FGCERAPL802SCH

Tecnoware
Tecnoware
TCW FGCERAPL802SCH 8026475175755

Tecnoware UPS ERA PLUS, with AVR technology, protects against blackouts and power surges. It offers up to 40 min runtime with modem/router and 15 min with PC, with the following features:

  • Power: 800VA - 560W for effective protection of electronic devices

  • Autonomy: Up to 40 min with modem/router and 15 min with PC

  • AVR stabilization to prevent damage from overvoltage and undervoltage

  • 2 Schuko output outlets protected from blackouts and surges

  • Multi-function LED and audible alarm for operational status monitoring

  • Compatible with Office PCs, DVRs, modems/routers, cash registers

Do you have questions about this product or did you not find what you were looking for? Ask us!
Tecnoware UPS ERA PLUS 800VA 560W FGCERAPL802SCH
€62.47
€62.47

€62.47
Tax included
Calculate shipping cost
Items Available: 4
Further availability of the manufacturer
€62.47

Buy it within and receive it from Friday, 6 February
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Tecnoware ERA PLUS 800VA UPS: protection, autonomy and ease of use.

The Tecnoware Uninterruptible Power Supply is the ideal solution for protecting electronic devices from blackouts, surges and under voltages. Thanks to Line Interactive technology with AVR stabilization, it maintains a constant voltage and protects against power grid fluctuations, preventing damage and sudden shutdowns.

Advanced protection and voltage stabilization

Equipped with an electronic AVR (Automatic Voltage Regulation) circuit, the UPS compensates for voltage fluctuations, protecting connected devices and ensuring stable and safe operation.

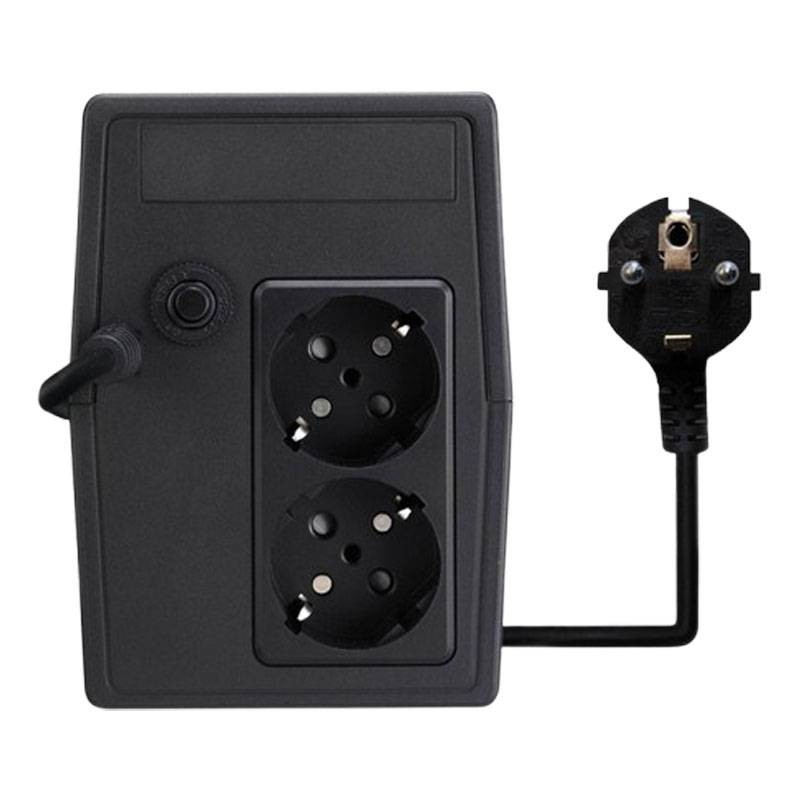

The 2 Schuko output outlets are protected from blackouts and voltage spikes, making it perfect for PC Office, modem/router, DVR/NVR for video surveillance, and cash registers.

Reliable autonomy and performance

Thanks to the 12V 7Ah sealed lead-acid battery, the UPS offers:

  • Up to 15 minutes of runtime for one PC

  • Up to 40 minutes of runtime for a modem/router

  • Quick response time of only 2 ms

  • This runtime allows data to be saved and devices to be properly shut down without risk

Simple installation and intuitive operation

Designed to be easy to install and use:

  • Multifunction LED and audible alarm to signal operational status

  • On-Off button for immediate control

  • Light weight and compact size, ideal for any environment

Compatible devices and limitations

Suitable for:

  • Office PC

  • DVR/NVR for video surveillance

  • ADSL-Fiber modems/routers

  • Network switches and cash registers

Not suitable for:

  • Power supplies with active PFC circuitry (gaming PCs, servers, workstations, Macs, consoles)

  • Lamps and electric motors

Tecnoware UPS Technical Specifications

Technical Data

Feature Value
Technology Line Interactive with stabilizer
Cooling Natural
Noise <40 dBA at 1 m
UPS Dimensions (W x H x D) 101x142x279 mm

Input

Feature Value
Number of phases 1F + N
Rated voltage Single-phase 230Vac
Input voltage tolerance +20% / -25%
Rated frequency 50/60 Hz (automatic selection)
Input frequency tolerance +/-5%

Output

Feature Value
Number of phases 1F + N
Rated voltage Single-phase 230Vac
Voltage stabilization (Battery Mode) +/-5%
Frequency 50/60 Hz (automatic selection)
Allowable overload < 130 %
Tripping Time 2 ms (typical)

Battery

Feature Value
Type Lead acid, sealed, maintenance-free
Typical Autonomy 10-40 min
Working Temperature 0 to 55°C (for proper battery operation 20 to 25°C)
Maximum altitude 3000 m
Degree of protection IP20

There are no reviews

Data sheet

Type:
Uninterruptible Power Supply UPS
Rated Power:
800VA
Active Power:
560W
Endurance:
10/40 minutes
