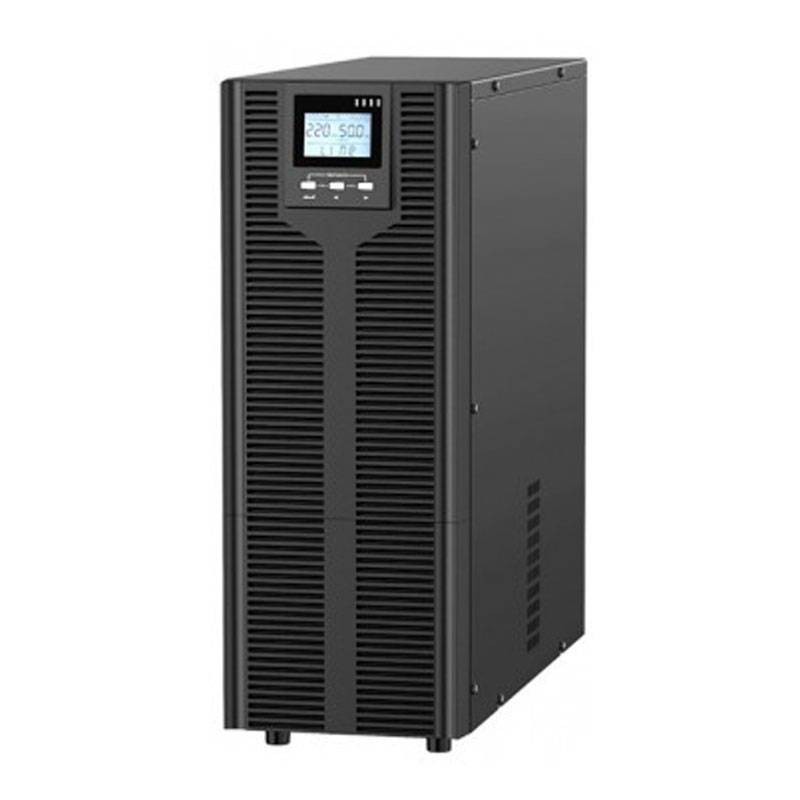

4Power Uninterruptible Power Supply UPS Third Power Plus 10000 10KVA THPPTMM10K10T
4PW THPPTMM10K10T
The UPS 4Power Third Power Plus 10000 THPPTMM10K10T is a 10kVA/10kW online dual-mode with three-phase or single-phase input and single-phase output: high efficiency, 0 ms transfer time and 10 minutes of autonomy.
-
10kVA / 10kW with cos = 1: all power is fully usable
-
Dual-mode UPS: three-phase or single-phase input, single-phase output (3/1 or 1/1)
-
On-Line double conversion technology: clean power supply and 0 ms intervention time
-
High efficiency: >94% at 100% load and >98% in ECO mode
-
Input PFC with power factor >0.99
-
Professional management: maintenance bypass, monitoring, RS232/USB and SNMP.
€3,228.12
Items Available: 2
: 1
UPS 4Power Third Power Plus 10000: total protection for critical loads
The UPS 4Power Third Power Plus 10000 (THPPTMM10K10T) is designed to ensure operational continuity and electrical quality at the highest levels in industrial and commercial environments. The 10kVA/10kW power makes it suitable for powering sensitive and strategic loads such as servers, network equipment, telecommunication systems, medical devices, and security devices. In these contexts, having a battery is not enough: a stable, sinusoidal output independent of network anomalies is needed to avoid restarts, blocks, and electronic damage.
Dual: three-phase or single-phase input, single-phase output
The real advantage of the THPPTMM10K10T model is its dual architecture, with dual input power options: you can connect it to a three-phase network (3 + N + PE) or a single-phase network, always maintaining a single-phase output to the load. This flexibility is ideal for retrofits, technical rooms, and installations where the availability of three-phase can change or where it is useful to distribute the load on a dedicated line without redesigning the infrastructure.
Double conversion and 0 ms transfer: real continuity
The On-Line double conversion technology keeps the loads always powered by the inverter, regenerating the output voltage and filtering disturbances such as blackouts, micro interruptions, spikes, and harmonic distortions. In case of network failure, the transfer time is 0 ms, so the devices do not perceive any switching: a fundamental requirement for servers and control systems.
High energy efficiency: less waste, more sustainability
The UPS is optimized to reduce consumption and dissipation: the declared efficiency exceeds 94% at 100% load, reaching over 98% in ECO mode. This translates into lower energy costs and less heat to dissipate in server rooms and technical rooms. The PFC with input power factor >0.99 also contributes to cleaner absorption, reducing unnecessary currents and improving the overall efficiency of the system.
10-minute autonomy and advanced management
With an indicative autonomy of 10 minutes, the Third Power Plus 10000 is perfect for covering micro-blackouts and allowing controlled shutdowns or continuity while waiting for network/generator. Advanced management functions include maintenance bypass, complete monitoring, and RS232/USB plus SNMP connectivity, so you can integrate the UPS into supervision systems and receive alarms and reports in real-time.
| GENERAL DATA | |
|---|---|
| Model | THPPTMM10K10T |
| Nominal power | 10 kVA / 10 kW |
| INPUT | |
| Three-phase input voltage | 380 / 400 / 415 Vac (3Φ + N + PE) |
| Single-phase input voltage | 220 / 230 / 240 Vac (1Φ + N + PE) |
| Voltage variation | 305 ÷ 499 Vac (without derating) 190 ÷ 305 Vac (linear derating 50% ÷ 100%) |
| Nominal frequency | 50 / 60 Hz (automatic detection) |
| Frequency range | 40 ÷ 70 Hz |
| Power factor | ≥ 0.99 |
| Bypass voltage range | -40% ÷ +15% (adjustable) |
| Total harmonic distortion (THDi) | ≤ 3% |
| OUTPUT | |
| Output type | Single-phase (1Φ + N + PE) |
| Nominal voltage | 220 / 230 / 240 Vac (selectable) |
| Voltage regulation | ± 1% |
| Frequency | Synchronized with bypass in network mode 50 / 60 Hz ±0.1% in battery mode |
| Waveform | Sinusoidal |
| Power factor | Cosφ = 1 |
| Harmonic distortion (THDv) | ≤ 1% (linear load) ≤ 3% (non-linear load) |
| Crest factor | 3:1 |
| Overload | 105% ÷ 110% for 10 min 110% ÷ 125% for 1 min 126% ÷ 150% for 30 s |
| BATTERIES | |
| Battery voltage | 192 Vdc (adjustable 192 ÷ 240 Vdc) |
| Number of batteries | 16 ÷ 20 |
| Integrated batteries | 12 V / 9 Ah × 16 |
| Autonomy (80% / 50% load) | 5 min / 10 min |
| Charging current | 5 A |
| Recharge time | 90% in 8 hours |
| SYSTEM | |
| Efficiency | ≥ 94% at 100% load Max 95% at 60% load ≥ 98% in ECO mode |
| Transfer time | 0 ms – On-line double conversion |
| Protections | Short circuit, output overload, overtemperature, low battery voltage, over/under voltage, fan failure |
| Parallel connection | Up to 4 units |
| Communication | RS232 (standard) USB / RS485 / dry contacts / SNMP / battery temperature compensation (optional) |
| Display | LCD + LED |
| OTHER INFORMATION | |
| Operating temperature | 0 ÷ 40 °C |
| Storage temperature | -25 ÷ +55 °C (without batteries) |
| Relative humidity | 0 ÷ 95% (non-condensing) |
| Altitude | ≤ 1000 m (derating 1% every 100 m) |
| Protection degree | IP20 |
| Noise level (1 m) | ≤ 58 dB |
| Dimensions (W × D × H) | 191 × 495 × 350 mm + battery box 130 × 560 × 444 mm |
| Net weight | 18.5 kg + battery box 56.5 kg |
There are no reviews
Data sheet
- Type: Uninterruptible Power Supply UPS
- Rated Power: 1000VA
- Active Power: 1000W
- Endurance: 10 minutes
