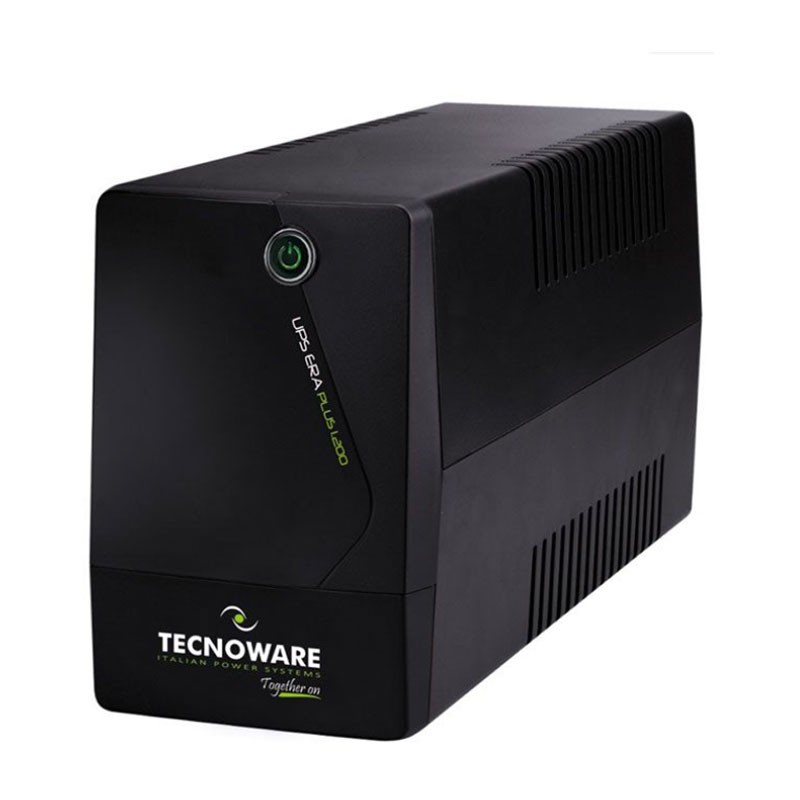

Tecnoware Uninterruptible Power Supply UPS ERA PLUS 1200VA 840W FGCERAPL1202SCH
TCW FGCERAPL1202SCH
8026475172211
Tecnoware UPS ERA PLUS uninterruptible power supply, with the following characteristics:
- Rated power: 1,200 VA
- Active power: 840W
- Power factor: 0.7
- Technology: Line Interactive with stabilizer
- Cooling: natural
- Noise: < 40 dBA at 1 m
- Dimensions: WxHxD 10.1x14.2x27.9 cm
- Degree of protection IP20
€99.94
Items Available: 8
: 4
Strengths:
- For Personal Computers, Modems, Local Area Networks (LAN), Video Surveillance Systems.
- AVR electronic voltage stabilization circuitry

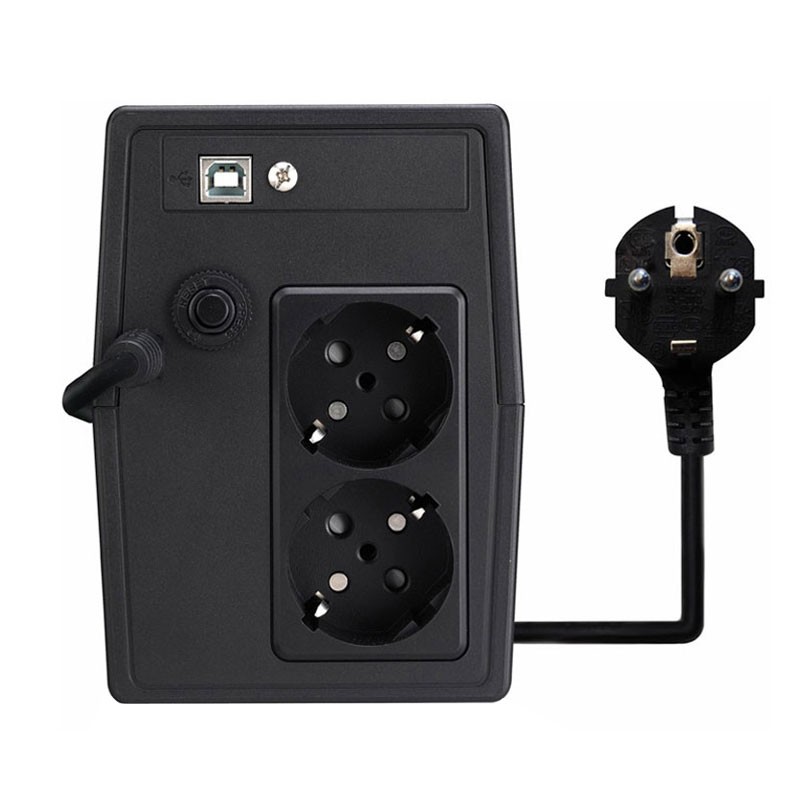

- Blackout-protected output sockets
- Surge-protected output sockets
- USB port (Era Plus 1,200-1,600 only)
- TecnoManager UPS management software compatible with Windows, Mac OS X, Unix, Linux, etc.
Input:
- Number of phases: 1F+N
- Rated voltage Single phase 230Vac
- Input voltage tolerance +20%/-25%
- Rated frequency 50/60 Hz (automatic selection)
- Input frequency tolerance +/-5%
Output:
- Output Number of phases 1F+N
- Rated voltage Single-phase 230Vac
- Voltage stabilization (Line Mode) Via AVR (Automatic Voltage Regulation)
- Voltage stabilization (Battery Mode) +/-5%.
- Frequency 50/60 Hz (automatic selection)
- Waveform Inverter Pseudosinusoidal
- Allowable overload < 130%
- Trip Time 2 ms (typical)
Battery:
- Lead acid type, sealed, maintenance-free
- Typical runtime: 10-40 minutes
Environmental operating conditions:
- Working temperature 0 to 55° C (for proper battery operation 20 to 25° C)
- Relative humidity < 95% non-condensing
- Maximum altitude 3000 m
- CE certifications (Reference standards: safety IEC EN 62040-1; EMC IEC EN 62040-2; classification IEC EN 62040-3)
Quello acquistato è una sostituzione di altro Tecnoware mod POWER PRO 1000 che ho dovuto sostituire perchè non teneva la continuità e non c'è un centro assistenza affidabile. L'attuale ERA PLUS 1100 non ha spie di controllo, non ha un interruttore principale della rete, riscalda, l'involucro è in plastica e pesa 1/3 del precedente.
Data sheet
- Type: Uninterruptible Power Supply UPS
- Rated Power: 1200 VA
- Active Power: 840W
- Endurance: 10/40 minutes
