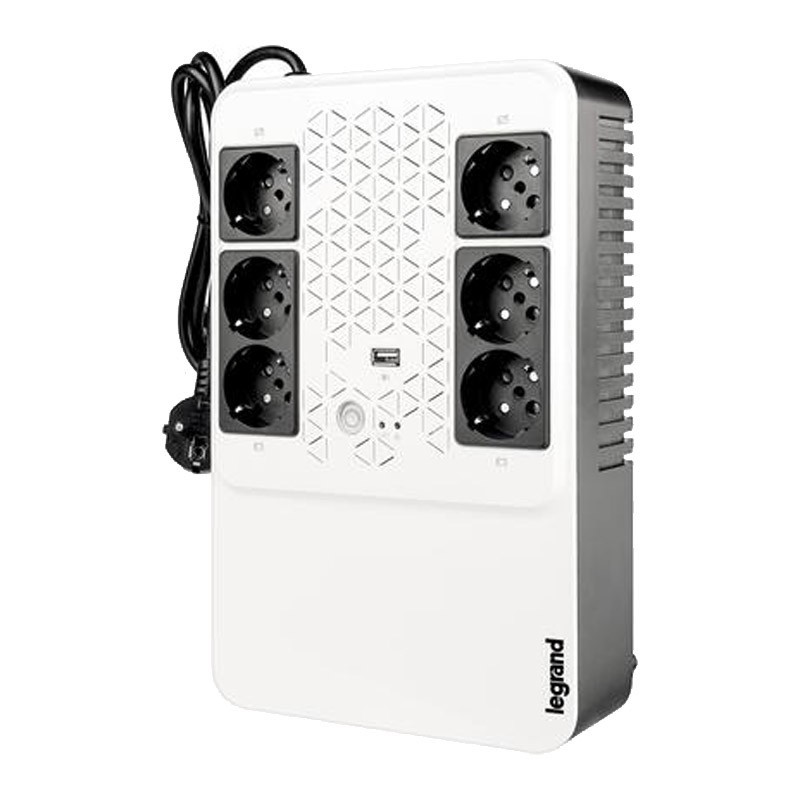

Legrand KEOR MULTIPLUG Single-phase UPS 800VA with German outlets 310082
LEG 310082
3414971227255
Legrand Bticino KEOR MULTIPLUG single-phase UPS 800VA, with the following characteristics:
- 230V input voltage
- Input voltage range 170 - 290V
- Frequency (Hz) 50 - 60 ± 5Hz
- Power 800VA
- Active power 480W
- Height 190mm
- Width 89.5 mm
- Depth 296 mm
- With standard German sockets
- Autonomy up to 15 minutes
- Line interactive VI technology
- Pseudo sinusoidal waveform
- Reference Standard: EN 62040-1/2/3
€146.46
Items Available: 13
: 4
The Legrand UPS model Keor MULTIPLUG 800 is an uninterruptible power supply with line interactive technology. It delivers 480W active power, CPU-controlled, and is equipped internally, with valve-regulated, hermetic type lead-acid batteries to provide a minimum runtime of 10 minutes with a typical workstation. The presence of an electronic stabilizer (AVR) inside the UPS provides the connected load with effective protection against any interference in the grid.
Keor MULTIPLUG 800 is managed by a microprocessor and can display the following alarms and operating modes via a "smart" LED bar:
- Normal operation
- Battery operation
- Overload
- General fault
- Autonomy reserve
- End of autonomy
The Keor MULTIPLUG 800 is CE marked in accordance with European Directives 2014/30 and 2014/35.
It has also been designed and manufactured in accordance with the following standards:
- EN 62040-1 "General and safety requirements for UPS used in operator accessible areas"
- EN 62040-2 "Electromagnetic compatibility (EMC) requirements."
Other features:
- Comprehensive protection: overload, short circuit, deep discharge, overcharge and overvoltage
- Fuse Type
- Number of Batteries 1
- Battery Type/Voltage VRLA 7 Ah
- Interface LED bar (green / orange / red)
- USB HID Type B
- Alarms Visual (LED bar), Audible (buzzer)
- Operating temperature (°C) 0 /+40
- Relative humidity (%): < 95 (non-condensing)
- Noise (dB): ≤ 40
- Weight: 5.5 kg
Output:
- Socket Type: German Version: Backup: 4*CEE 7/3 - Surge: 2*CEE 7/3 , French Version: Backup: 4*CEE 7/5 - Surge: 2*CEE 7/5
- USB Charging/Voltage: Type A / 5V (1A)
- USB Charging/Voltage: Type A/ 5V
- Voltage (V): 230 ± 10%
- Frequency (Hz): 50 - 60 ± 1Hz (battery operated)
There are no reviews
Data sheet
- Type: Uninterruptible Power Supply UPS
- Rated Power: 800VA
- Active Power: 480W
- Endurance: 15 minutes
