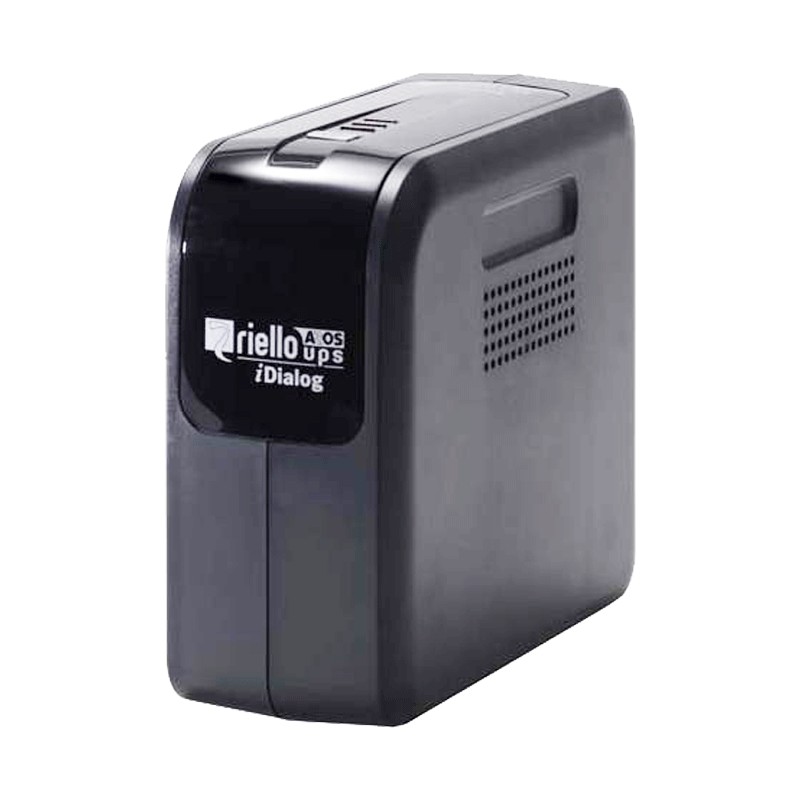

The iDialog range is the ideal solution for protecting PCs and peripherals in the home and office environment. iDiaolg is the easy-to-install and cost-effective solution for protecting:

• IT equipment such as PCs, Media Centers and peripherals
• TV, Home Cinema, Satellite and Digital Terrestrial Receivers, DVD players and burners
• Modems and xDSL routers
• Small household appliances



Advantages:

• Compact
• Quiet
• Contemporary design
• Auto restart
• Low power consumption



QUIET:

• UPS operates quietly (0 dBA) due to fanless construction and high-frequency components



ADVANCED COMMUNICATION:

• PowerShield3 software enables safe shutdown of connected computer systems in the event of a power failure. PowerShield3 enables efficient and intuitive UPS management by displaying bar graphs for important operational information



AUTO RESTART:

• The UPS automatically restarts once mains power is restored



ECO LINE ENVIRONMENTAL PROTECTION:

• In an effort to save energy, the iDialog range has been equipped with a lockout button to reduce power consumption during periods of prolonged inactivity.



FEATURES:

• Reduced power consumption and 99% efficiency
• Maximum reliability in PC protection thanks in part to PowerShield3 monitoring and shutdown software, which can be downloaded for free from www.riello-ups.com



Input:

• Rated voltage V 220 / 230 / 240
• Voltage tolerance V 230 (+20/-25%)
• Rated frequency Hz 50/60 with automatic selection

Output:

• Voltage in operation from mains V 230 (+20/-25%)
• Voltage in operation from battery V 230 (±10%)
• Frequency in operation from battery Hz 50 or 60 (±1%)
• Pseudo sinusoidal waveform



Batteries:

• VRLA type lead-acid AGM, maintenance-free
• Charging time 6-8 hours



Features:

• Net weight kg 3.2
• Gross weight 3.7 kg
• Dimensions (WxDxH) mm 90x232x192
• Protections Excessive battery discharge - overcurrent - short circuit
• USB communications

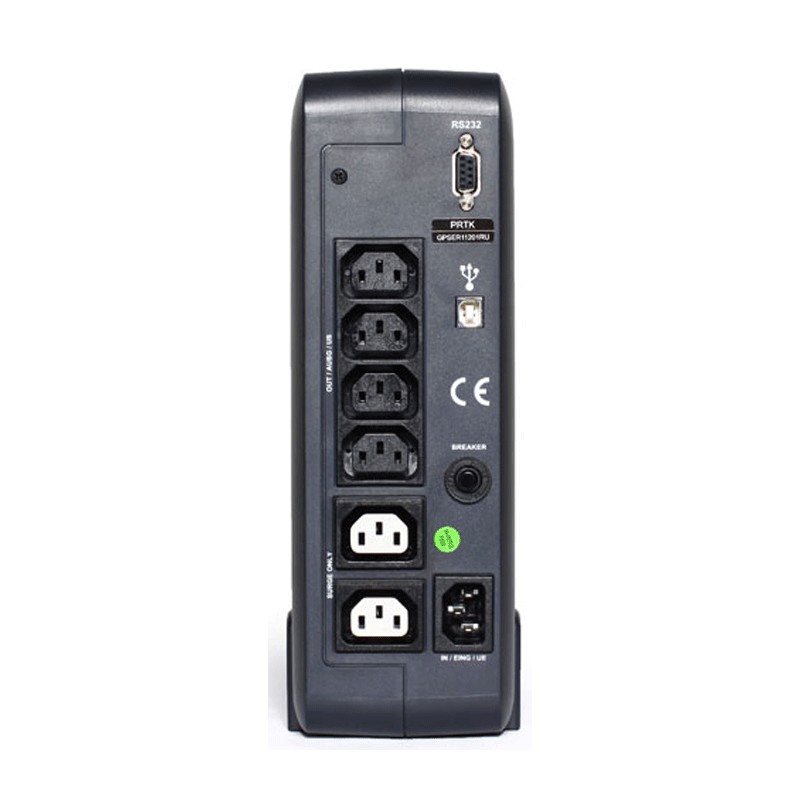

• Output sockets 4 IEC 320 C13
• Standards European Directives: L V 2014/35/EU Low Voltage Directive; EMC 2014/30/EU Electromagnetic Compatibility Directive Standards: Safety IEC EN 62040-1; EMC IEC EN 62040-2; RoHS compliant
• CE Certificates.
• Operating temperature 0 °C to +40 °C
• Color Black
• Ambient temperature for the UPS 0 °C to +40 °C
• Recommended temperature for battery life +20 °C to +25 °C
• Relative humidity range 5-95% non-condensing
• Altitude Altitude max 6000 m
• Standard equipment 2 output power cables, user manual
