Overview:

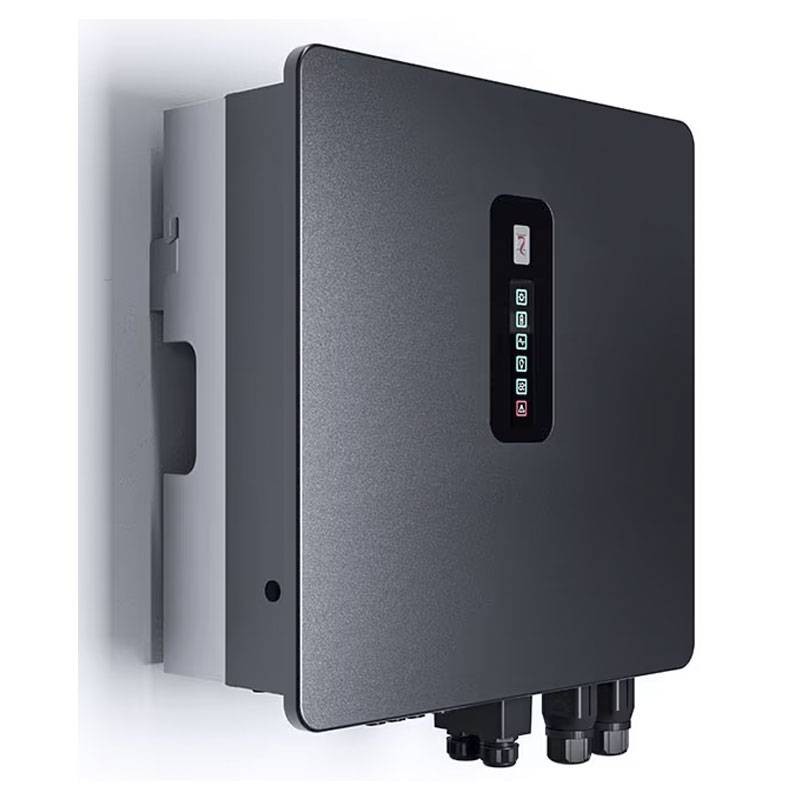

• The new RS Hybrid three-phase inverters cover a power range of 5 kW, 6 kW, 8 kW and 10 kW and are ideal for systems with a storage system, but can also be used on PV systems without a battery that could be installed later. With these inverters, Riello Solartech offers a design that combines aesthetics with safety and functionality for installation and maintenance. These are lightweight, compact and versatile inverters that can be used to power a three-phase utility from solar panels, batteries, external grid or a combination of these sources. These inverters, made with the latest technology, achieve a European efficiency of 97.4 percent. When used in conjunction with batteries, they optimize self-consumption while minimizing grid offtake, and at the same time provide quick economic savings with improved degree of autonomy from one's grid operator. From an environmental sustainability perspective, maximizing the potential of the system means minimizing energy withdrawals from traditional fuels, thereby reducing CO2 emissions.
• A convenient LED panel combines the multiple advanced communication modes: built-in Bluetooth, Wi-Fi (included), BMS (CAN/RS485), RS485 and Ethernet (optional); CT sensors provided standard. As a result, the inverter is easy to configure but, at the same time, advanced management can proceed with the Cloud Inverter Platform. The tools provided by Riello Solartech's cloud platform can effectively reduce costs and simplify maintenance, improving the efficiency of the overall system. Up to 9 inverters can be connected in parallel; each inverter can manage up to 10 battery modules equipped with an advanced management system (BMS - Battery Management System). All configurations are made via APP that can be downloaded free of charge from the Android or Apple stores.



Inverters in the RS Hybrid three-phase range combine high power with ease and simplicity of installation:

• Simple and immediate activation and commissioning with application APP;
• Wall/guide mounting for zero wasted surface area and installation in all conditions, even the most unfavorable;
• During commissioning, no special equipment is required because it comes in small, lightweight boxes that are easy to carry and handle;
• LED indication panel on the front of the inverter that makes it easy to read the status of the inverter.



Inverter Features:



Efficiency:

• Maximum efficiency % (PV to grid) 97.4
• Maximum charge/discharge efficiency % 96.8



PV input:

• Maximum input voltage 1000V
• Maximum DC power 15000W
• Maximum input current 20/30A
• Maximum short-circuit current 30/40A
• MPPT operating voltage range 160 - 950V
• Maximum number of PV strings 3 (1/2)
• Number of MPPTs 2



Battery input:

• Lithium-ion compatible battery type
• Nominal battery voltage 250V-600V
• Accepted battery voltage range 150V-600V
• Maximum charge/discharge current 50A/50A
• Maximum charging/discharging power 15000W/10500W



Grid side output (On Grid):

• AC active power (nominal) 10000W
• Maximum apparent power AC 11000VA
• Max active power. AC (PF=1) 11000W
• Max. ac output current 3+16.7A
• Nominal AC voltage AC 380 / 400 / 415V, 3W+N+PE
• Rated mains frequency 50/60Hz
• Mains frequency range 45-55 / 55-65 Hz
• Harmonic distortion (THDi) <5 (rated power)
• Power factor > 0.99 rated power (adjustable 0.8 inductive 0.8 capacitive)



EPS output (Backup):

• AC active power (nominal) 10000W
• Maximum power 11000 VA
• Maximum power (10 seconds) 15000VA
• Tripping time 10msec (typical), 20 msec. (max)
• Rated AC voltage 380 / 400, 3W+N+PE
• Harmonic distortion (THDi) < 3 (R Load), 8 (RCD Load)



Protections:

• PV disconnect switch
• Anti-island protection
• AC overcurrent protection
• AC short-circuit protection
• AC overvoltage protection
• Overvoltage protection type (SPD) DC type II / AC type III
• Differential protection (GFCI)
• Insulation detection (R-ISO)



General:

• Transformerless type
• Degree of protection IP65
• Cooling Natural ventilation
• Operating temperature range °C -25 to 60
• Relative humidity range
• % 0 ÷ 100
• Maximum operating altitude
• m 4000 (> 2000 derating)
• Noise level
• dB (@ 1 m) < 30
• Dimensions (WxDxH)
• mm 550x212x530
• Weight 32 kg



Certification:

• Safety IEC/EN 62109-1: 2010 IEC/EN 62109-2: 2011
• EMC EN IEC 61000-6-1/2/3/4
• Grid connection standards IEC 0-21:2022; IEC 0-16:2022; UNE 217002: 2020/RD647:2020/RD244:2019/RD1699: 2011/RD661: 2017/RD413: 2014; NTS Version 2.1/UNE 217001: 2020.
