Riello Aros RS 5KW 2 MPPT Single-Phase Photovoltaic Inverter

Riello
Riello
RST 6PS15K0C

Riello Aros RS Photovoltaic Inverter:

  • AC active power (nominal) 5000W
  • 2 MPPT
  • Rated voltage AC 220V/230V, L+N+PE Single phase
  • Transformerless
  • Maximum efficiency 97.4%
  • European efficiency 96.9%
  • IP65 degree of protection for outdoor installation
  • Redundant control and protection devices
  • Wide MPPT range
  • Integrated dual-channel Wi-Fi
  • Convention cooling technology
  • LCD display + status LED
  • wifi
Do you have questions about this product or did you not find what you were looking for? Ask us!
Riello Aros RS 5KW 2 MPPT Single-Phase Photovoltaic Inverter
€732.00
€732.00

€732.00
Tax included
Calculate shipping cost
Items Available: 1
Further availability of the manufacturer
€732.00

Buy it within and receive it from Wednesday, 24 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Unique, innovative, lightweight and compact design. The die-cast aluminum case makes it especially lightweight and provides a real IP65 degree of protection that is optimal even for outdoor applications. The materials chosen are of high quality to ensure maximum reliability. Thanks to the wide voltage range, the inverter can be perfectly integrated into different operating conditions of the power grid and is particularly suitable for low voltage typical in rural areas:

Advantages:

  • Natural convection cooling technology to ensure a reliable period of use in high temperature situations
  • Intelligent self-testing with self-learning via App
  • Multiple remote monitoring for operation and maintenance


Efficiency:

  • High efficiency and higher rate of return
  • Highest efficiency 97.6%
  • European efficiency 97.1%
  • MPPT self-learning technology to optimize the efficiency of each module
  • Wide MPPT range
  • Threshold voltage for delivery to ultra-low grid

Total flexibility:

  • Easy installation, smart operation and maintenance
  • User-friendly communication interface with built-in dual-channel Wi-Fi

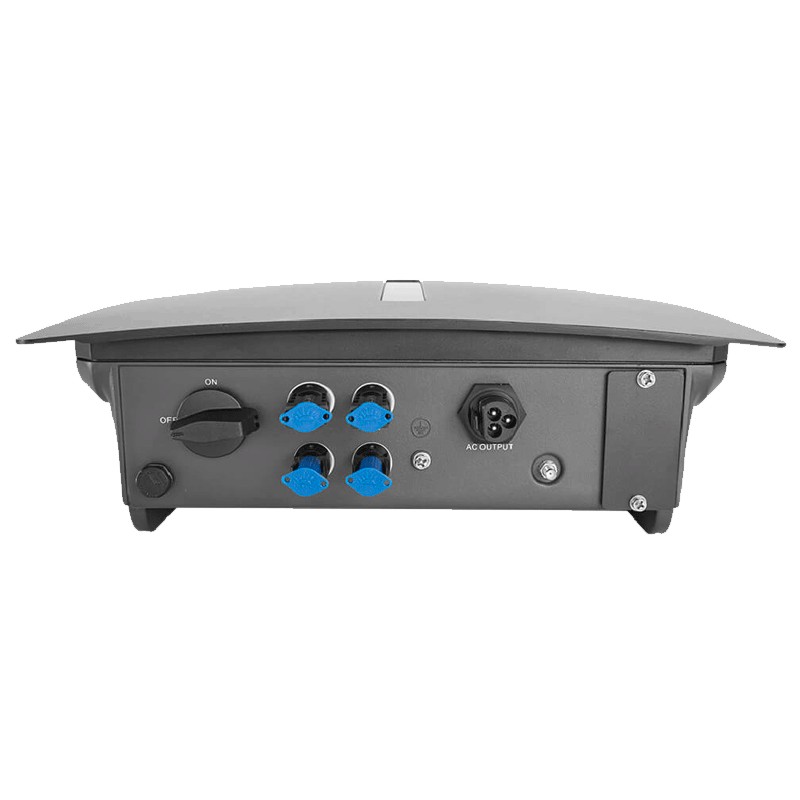

  • Pluggable AC/DC connectors for instant connection
  • Using App/Web for remote system control and firmware update, maintenance and smart operations
  • Lightweight and extremely compact for easy installation

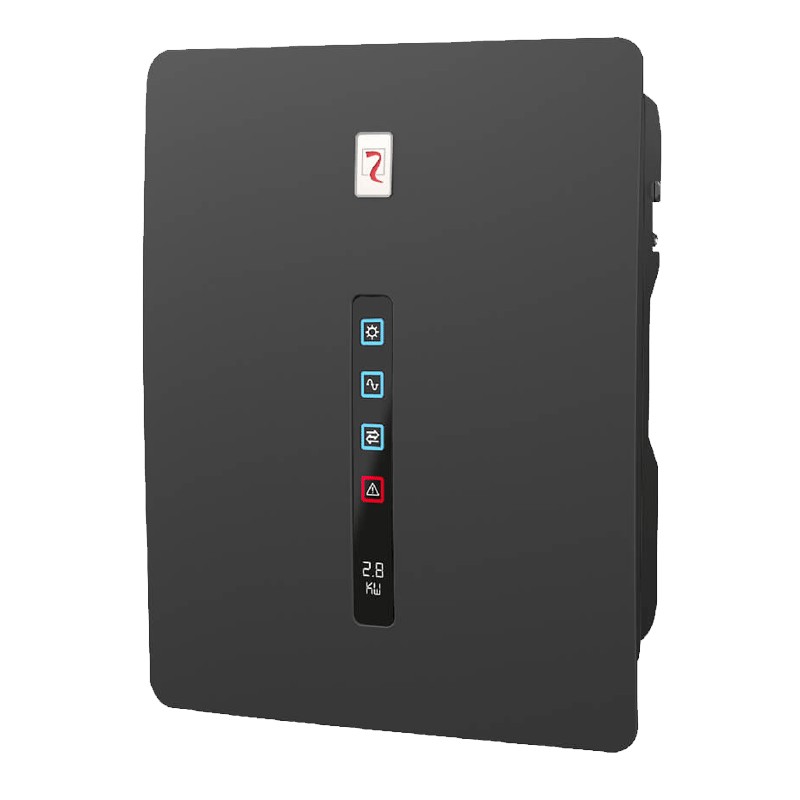

Built-inDC circuit breaker gives the ability to quickly and safely isolate the inverter in case of emergency or extraordinary maintenance. A series of LED icons on the front of the case allow immediate identification of the inverter's operating status while an LCD display shows the instantaneous power output or any alarm code

Built-in dual-channel Wi-Fi COMMUNICATION INTERFACE. 1CH) used for local connection with appropriate App (RS Connect):

  • For direct connection to the inverter and local configuration and installation (self-test and threshold setting)
  • Local consultation
  • Overnight consultation 2CH) for router connection and data management to CLOUD; visualization with RS Monitoring supervision portal

Features:

EFFICIENCY:

  • Maximum efficiency 97.4%
  • European efficiency 96.9%

INPUT:

  • Maximum input voltage 600 V
  • Nominal input voltage 360 V
  • Maximum input current 26 A (13 A for MPPT)
  • Maximum short-circuit current 30 A (15 A for MPPT)
  • Starting voltage minimum operating voltage 90 V / 70 V
  • MPPT operating voltage range 90 V ÷ 580 V
  • Operating voltage range (full load) MPPT 240 V ÷ 520 V
  • Maximum number of PV strings 2 (1 / 1)
  • Number of MPPT 2

OUTPUT:

  • AC active power (nominal) 5000 W
  • Maximum apparent power AC 5500 VA
  • Maximum active power. AC (PF=1) 5500 W
  • Max AC output current 23.8 A
  • Nominal AC voltage AC 220 V / 230 V, L+N+PE
  • AC voltage range 160 V ÷ 300 V
  • Rated mains frequency 50 Hz / 60 Hz
  • Mains frequency range 45 Hz 55 Hz / 55 Hz 65 Hz
  • Harmonic distortion (THDI) < 3% (rated power)
  • DC current injection < 0.5% In
  • Power factor > 0.99 rated power

PROTECTIONS:

  • DC disconnect Si
  • Anti-island protection Yes
  • AC overcurrent protection Yes
  • Short-circuit protection Yes
  • DC pole reversal control Yes
  • AC surge arrester type III
  • Earth leakage detection Yes
  • Leakage current protection Yes

GENERAL:

  • Transformerless type
  • IP65 degree of protection
  • Self-consumption at night < 1 W
  • Natural Cooling
  • Operating temperature range -25 °C ÷ 60 °C
  • Relative humidity range 0 ÷ 100%
  • Maximum operating altitude 4000 m (> 2000 m derating)
  • Noise level < 30 dB (measured at 1 m)
  • Dimensions (WxDxH) 367 x 135 x 467 mm
  • Weight 12.9 kg

COMMUNICATION:

  • LCD display + LED
  • Built-in Wi-Fi communication (dual channel), RS485 (optional not built-in)
  • APP monitoring, Supervisory portal

CERTIFICATIONS:

  • Safety IEC62109-I, IEC62109-2 EMC EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4
  • Standards IEC 0-21, RD1699
  • Warranty 5 years

There are no reviews

Data sheet

Type:
Inverter
Power:
1 to 5KW
WIFI:
Integrated
MPPT:
2
Connection:
Single-phase
