Riello Aros Inverter for photovoltaic RS10.0T 10.0KW 2 MPPT Three Phase
RST 6PS310KC
Inverter for photovoltaic Riello Aros RS10.0T NEW:
- Maximum input voltage 10.0KW
- Number of MPPT 2
- Power supply 380 / 400 3L+N+PE Three-phase
- Maximum number of PV strings 2 (1/1)
- Maximum string current up to 20A.
- PV configuration up to 130%.
- Aluminum case with IP66 protection.

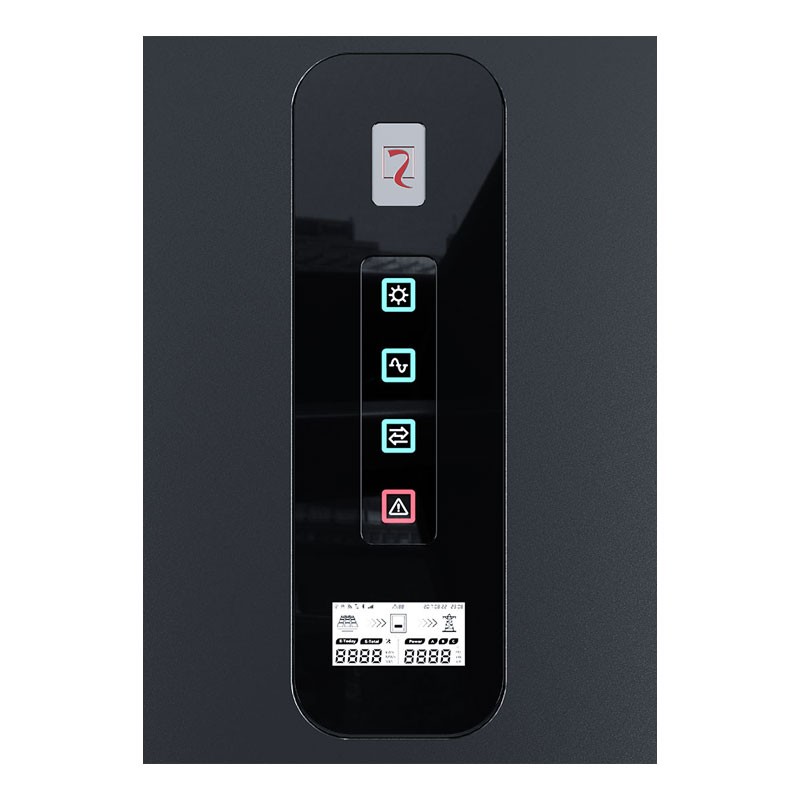

- LCD display and status LEDs
- Built-in Wi-Fi and Bluetooth communication
€1,854.13
Out of stock
Incoming
Riello Solartech the evolution continues: here is the new range of high-performance three-phase transformerless inverters. Riello Solartech, a brand of the Italian Riello Elettronica Group, presents to the market the new series of three-phase photovoltaic inverters that implement the range of single-phase residential inverters. Extremely compact and lightweight, the new three-phase RS inverters from Riello Solartech are available in power ratings ranging from 6 to 30 kW and benefit from a completely new technology with the highest quality components, the result of the work of the company's Research and Development team, which guarantee maximum product reliability and allow them to achieve high efficiency in all operating conditions.
Other features of the new Riello Solartech RS T three-phase inverters include the DC-side disconnect, DC and AC type II arresters, multiple inputs for maximum string optimization that converge on the two independent MPPT trackers characterized by a wide voltage range; all in order to always ensure maximum configuration flexibility, yield optimization and extended energy production time.
Features:
- Maximum efficiency 97.8%
- European efficiency 97.2%
Input:
- Maximum input voltage V 1100
- Nominal input voltage V 620
- Maximum input current A 2x15
- Maximum short-circuit current A 2x20
- Starting voltage 180V
- MPPT operating voltage range V 160÷1000
- Maximum number of PV strings 2 (1/1)
- Number of MPPTs 2
Output:
- AC active power (nominal) W 10000
- Maximum apparent AC power VA 11200
- Max active power. AC (PF=1) W 11200
- Max AC output current A 3x17
- Rated AC voltage V 380 / 400 / 415 3W+N+PE
- Rated mains frequency Hz 50/60
- Mains frequency range Hz 45-55 / 55-65
- Harmonic distortion (THDI) <3% (rated power)
- DC current injection <0.5% In
- Power factor > 0.99 rated power (adjustable 0.8 inductive - 0.8 capacitive)
Protections:
- DC disconnect switch SI
- Anti-island protection SI
- AC overcurrent protection SI
- Short-circuit protection YES
- DC pole reversal control YES
- Surge arresters (VDR) DC type II / AC type II
- Earth leakage detection SI
- String current detection YES
- Leakage current protection YES
General:
- Transformerless type
- IP66 degree of protection
- Self-consumption at night W <8
- Cooling natural ventilation
- Operating temperature range -25 °C/+60 °C
- Relative humidity range 0÷100%
- Maximum operating altitude m 4000 (>2000 derating)
- Noise dB <30 (measured at 1 m)
- Dimensions (WXPXA) mm 398x190x460
- Weight 17.5 kg
Communication:
- LCD + LED display
- Built-in Wi-Fi and Bluetooth communication
- RS485 and Ethernet not included (optional)
- APP monitoring, Supervisory portal.
Certifications:
- Safety IEC62109-I, IEC62109-2
- Emc EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4
- Standards IEC 0-21, IEC 0-16, RD 1699, RD 661, RD 413, UNE 206006 IN, UNE 206007-1 IN, NTS Type A version 2.1, UNE 217002, RD 647, UNE 217001
- Warranty 5 years (with possibility of extension).
There are no reviews
Data sheet
- Type: Inverter
- Power: 6 to 10KW
- WIFI: Integrated
- MPPT: 2
- Connection: Three-phase
