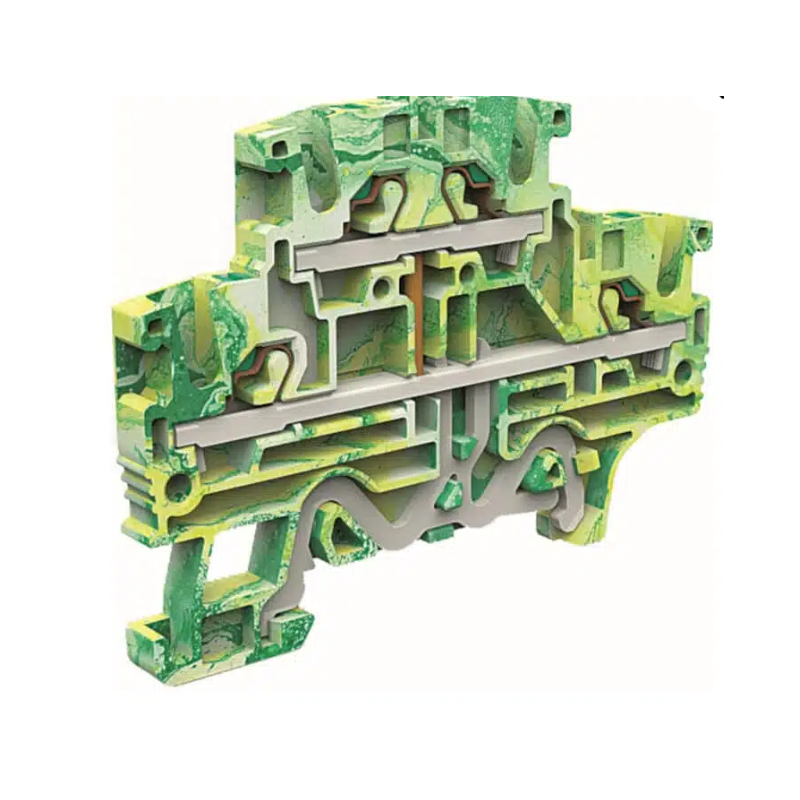

Cabur two-story ground terminal Push-in 2.5mm yellow/green EFDE200
CBR EFDE200
8017963192750
Cabur spring clamp with two-plane pass-through push-in technology with the following features:
- Function/Type: 2-plane pass-through
- Max AC/DC voltage 600 V (according to UL standard)
- Cross-section (min-max) 24-12 (AWG) (according to UL standard)
- Nominal cross-section 2.5 mm²
- A3 gauge
- Min/Max operating temperatures -40 °C / +110 °C
- Rated impulse voltage / pollution degree 6 kV / 3
- Strip length 9 mm
- Width (pitch) 5.2 mm
- Length 71.6 mm
- Color: yellow/green
- Insulating material temperature index (EN 60216-1) 130 °C
- Plastic material Polyamide UL94V-0
€4.29
Items Available: 16
: 15
There are no reviews
Data sheet
- Colour: Yellow/Green
- Type: Clamps
- Cross-Section: 2.5 mmq
