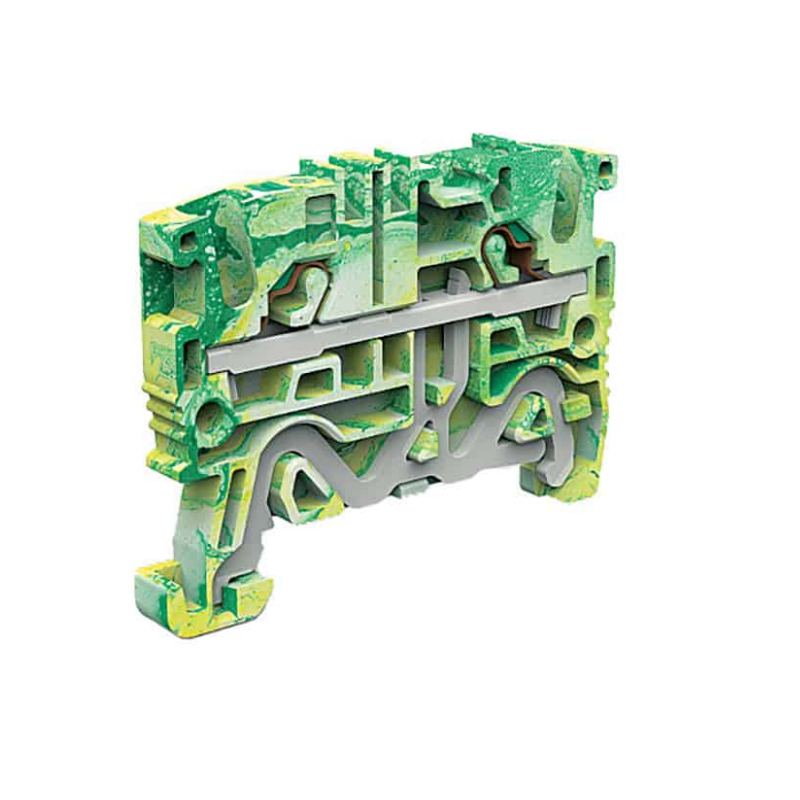

Cabur grounding clamp Push-in 2.5mm yellow green EFCE200
CBR EFCE200
8017963192354
Cabur spring clamp with single-plane push-in grounding technology, with the following characteristics:
- Max AC/DC voltage 600 V (according to UL standard)
- Nominal cross section 2.5 mm²
- A3 gauge
- Min/Max operating temperatures -40 °C / +110 °C
- Rated impulse voltage / pollution degree 6 kV / 3
- Strip length 9 mm
- Width (pitch) 5.2 mm
- Length 51.1 mm
- Color: yellow/green
- Insulating material temperature index (EN 60216-1) 130 °C
- Plastic material Polyamide UL94V-0
€2.35
Items Available: 23
: 21
There are no reviews
Data sheet
- Colour: Yellow/Green
- Type: Clamps
- Cross-Section: 2.5 mmq
