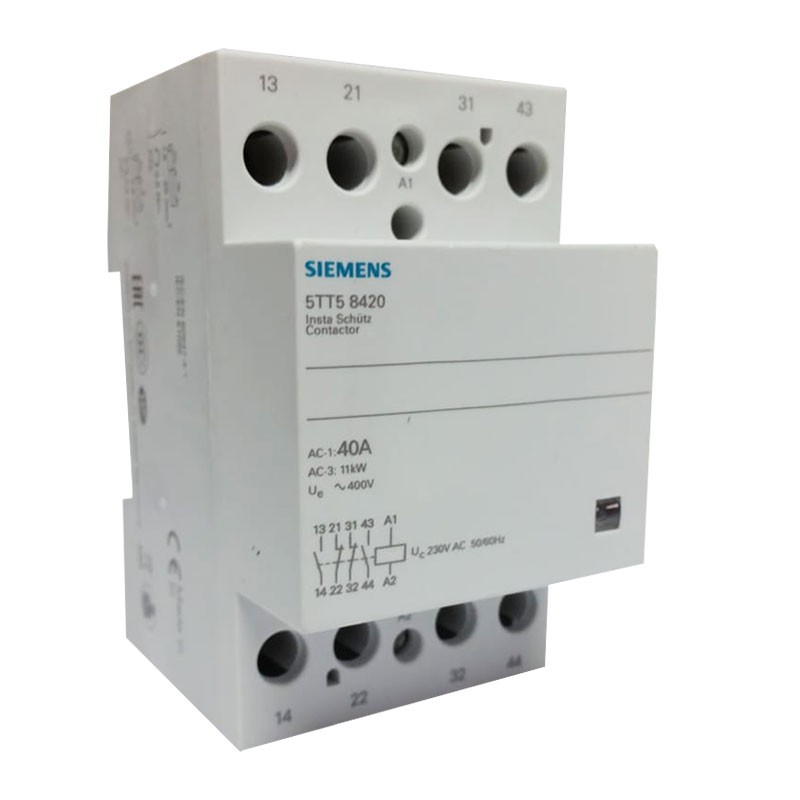

Siemens contactor 40A 230VCA 2NA+2NC 5TT58420
SIE 5TT58420
4001869344102
Siemens INSTA contactor with 2 NO contacts and 2 NC contacts for AC 230V, 400V 40A control.
€72.53
Items Available: 26
: 14
Characteristics:
- Voltage type / for AC drive
- Voltage type / for AC drive
- Current / with AC / nominal value 40 A
- Operating voltage / nominal value Min. 440 V Max 440 V
- Degree of protection IP20
- Switching capacity active power / with incandescent lamp load 4000W
- Power loss
- W / at rated current / at AC / in warm state / per pole 4W
- Operating current / nominal value 40A
- Control supply voltage 230V
- Number of NC contacts 2
- Number of NO contacts 2
- Dimensions: Height 90 mm - Width 54 mm - Depth 71 mm - Recessed depth 64 mm - Number of modular width units 3
- Weight 398 g.
Data sheet
- Type: Contactors
- Voltage: 230VAC
- Modules: 3
- Poles: 4P
- Amps: 40A
