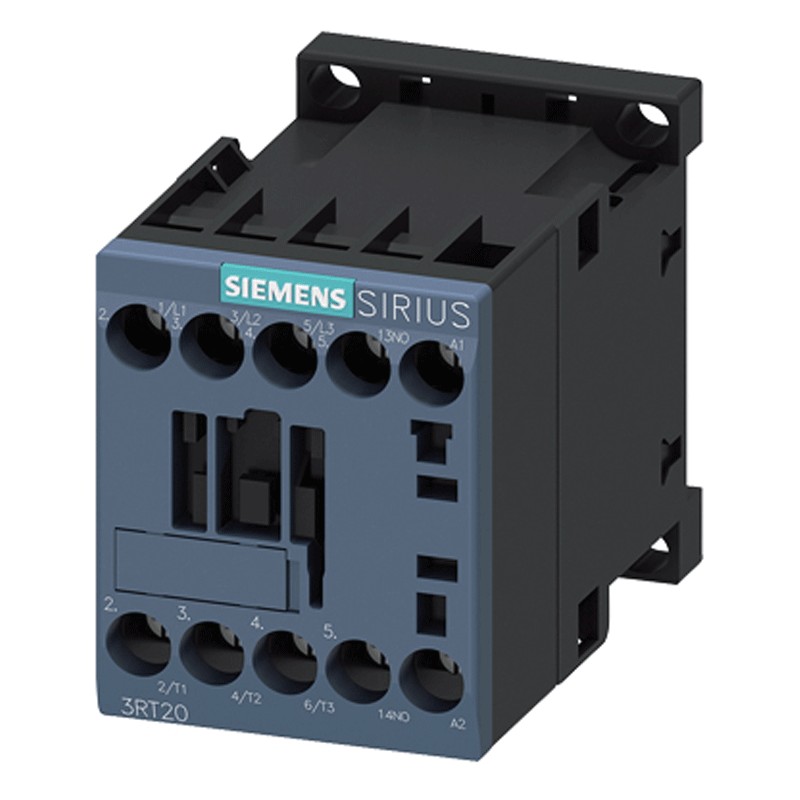

Siemens contactor 3 poles 12A S00 1NA 24VDC 3RT20171BB41


SIE 3RT20171BB41 4011209784024

Siemens power contactor, size S00, with the following characteristics:

  • Control supply voltage 24VDC
  • Max. permissible voltage for safe separation of coil and main contacts 400 Vac
  • Impulse withstand voltage of main circuit nominal value 6 kV - of auxiliary circuit nominal value 6 kV
  • Operating voltage with AC-3 max. nominal value 690 V
  • Number of poles per main circuit 3
  • Number of NO contacts for main contacts 3
  • Number of NO contacts for auxiliary contacts with instantaneous switching 1
  • DIN connection (universal for any switchboard on the market)
  • No-load switching frequency at AC 10 000 1/h
  • Operating current 12 amperes
  • 3 poles
Request info about this product

Siemens contactor 3 poles 12A S00 1NA 24VDC 3RT20171BB41

€31.24
€31.24

Siemens contactor 3 poles 12A S00 1NA 24VDC 3RT20171BB41

€31.24
Tax included
klarna Pay in installments with Klarna
qty

Siemens contactor 3 poles 12A S00 1NA 24VDC 3RT20171BB41

€31.24

Buy it within and receive it from Tuesday, 16 April
Two-year warranty
Secure Payment
Easy return within 14 days

The contactor is a device for closing and opening electrical circuits, mostly high voltage, by remote control.

The standard CEI 17-3 defines a contactor (contactor) as a device capable of interrupting or establishing current within a circuit. To do this, the device opens and closes the contact channels between the system and the power supply structure. In short, a kind of switch to be used for every eventuality.

Features:

  • Siemens series
  • Control supply voltage 24VDC
  • Max. permissible voltage for safe separation between coil and main contacts 400 Vac
  • Impulse withstand voltage of main circuit nominal value 6 kV - of auxiliary circuit nominal value 6 kV
  • Operating voltage with AC-3 max. nominal value 690 V
  • DIN connection (universal for any switchboard on the market)
  • Frequency of no-load operation at AC 10 000 1/h
  • Operating current 12 amperes
  • 3 poles
  • Number of poles per main circuit 3
  • Number of NO contacts for main contacts 3
  • Number of NO contacts for auxiliary contacts with instantaneous switching 1
  • Mechanical life span (switching cycles) of contactor typ. 30.000.000, of the contactor with mounted auxiliary contact block suitable for electronics typ. 5.000.000, of contactor with mounted auxiliary contact block typ. 10.000.000
  • Mounting position with vertical mounting surface rotatable by +/-180°, with vertical mounting surface tiltable +/- 22.5° forwards and backwards
  • Type of mounting screw and snap-on mounting on 35 mm DIN-rail
  • Degree of protection front side IP20
  • Height 58 mm
  • Width 45 mm
  • Depth 73 mm

Data sheet

Type:
Contactors
Voltage:
24VAC
Poles:
3P
Amps:
12A
