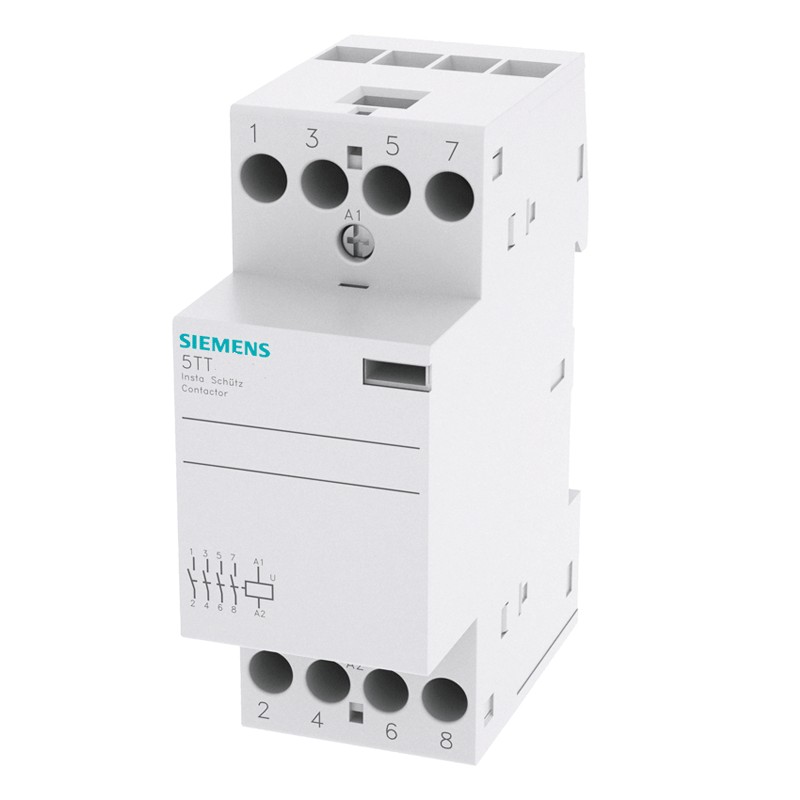

Siemens contactor 25A 4NA 230VAC 2 modules 5TT58300
SIE 5TT58300
4001869343969
Siemens contactor, with the following characteristics
- Control supply voltage ( nominal value 230 V, max. nominal value 230 V)
- 2 modules
- 4 poles
- DIN connection (universal for any switchboard on the market)
- Contact type 4NO
- Operating current 25 amperes
€26.97
Items Available: 404
: 45
The contactor is a device for closing and opening electrical circuits, mostly high voltage, by remote control.
The standard CEI 17-3 defines a contactor (contactor) as a device capable of interrupting or establishing current within a circuit. To do this, the device opens and closes the contact channels between the system and the power supply structure. In short, a kind of switch to be used for every eventuality.
Features:
- Siemens series
- Operating voltage min440V max 440V
- Control supply voltage (nominal value 230 V, nominal value max. 230 V)
- Operating current 25A
- 2 modules
- 4 poles
- Contact type 4NO
- Degree of protection IP20
- Height 90 mm
- Width 36 mm
- Depth 71 mm
- Recessed depth 0 mm
- Net weight 258 gr
Bien la tecnología de Siemens es muy buena
El producto es bastante buena pero cuando se le da mucho uso se rompe y son complicados de desarmar para repararlos
pas encore monter, mais semble de bonne qualité
Tutto ok. Prodotto di ottima qualità. Grazie
Sono stati velocissimi s spedire la merce
Prodotto con buon rapporto qualità costo
Data sheet
- Type: Contactors
- Voltage: 230VAC
- Modules: 2
- Poles: 4P
- Amps: 25A
