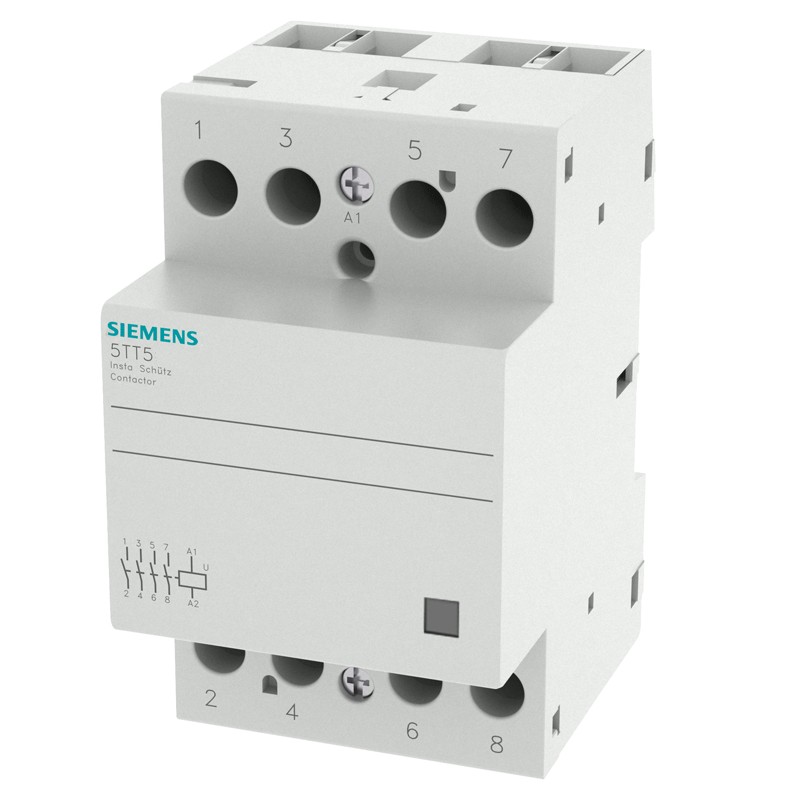

Siemens 63A 4NA 230VAC contactor 3 modules 5TT58500
SIE 5TT58500
4001869344140
Siemens contactor, with the following characteristics
- Control supply voltage (nominal value / max. 230 Vac)
- 3 modules
- 4 poles
- DIN connection (universal for any switchboard on the market)
- Contact type 4NA
- Operating current 63 amperes
€83.04
Items Available: 62
: 20
The contactor is a device for closing and opening electrical circuits, mostly high voltage, by remote control.
The standard CEI 17-3 defines a contactor (contactor) as a device capable of interrupting or establishing current within a circuit. To do this, the device opens and closes the contact channels between the system and the power supply structure. In short, a kind of switch to be used for every eventuality.
Features:
- Siemens Series
- Operating voltage min440Vac max 440Vac
- Control supply voltage (nominal value / max. 230 Vac)
- Operating current 63A
- 3 modules
- 4 poles
- Contact type 4NO
- Degree of protection IP20
- Height 90 mm
- Width 54 mm
- Depth 71 mm
- Recessed depth 0 mm
- Net weight 393 gr
Producto de calidad y entrega rapida a españa
Prodotto di qualità ad un prezzo leggermente inferiore alla media.
Consigliato
Data sheet
- Type: Contactors
- Modules: 3
- Poles: 4P
- Amps: 63A
